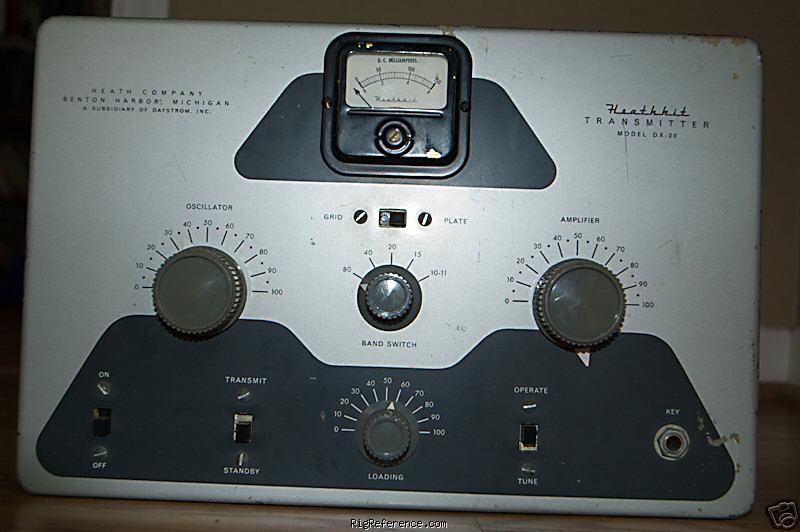

6DQ6 final, 6CL6 oscillator and 5U4B rectifier

General characteristics

HAM bands
80m  40m  20m  15m  11m (CB)  10m
Frequency stability
?
Tuning steps
?
Memories
?

Transmitter

TX-range
80-10 m
Modulations
CW
RF-output
50 W

Connections

Antenna
SO-239
Impedance
50-1000 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
-
TX
?

Physical

Dimensions (w×h×d)
330 × 216 × 178 mm (12.99 × 8.50 × 7.01 in)
Weight
7.25 kg (16.0 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5356
MPN
HEATHKIT-DX-000020
