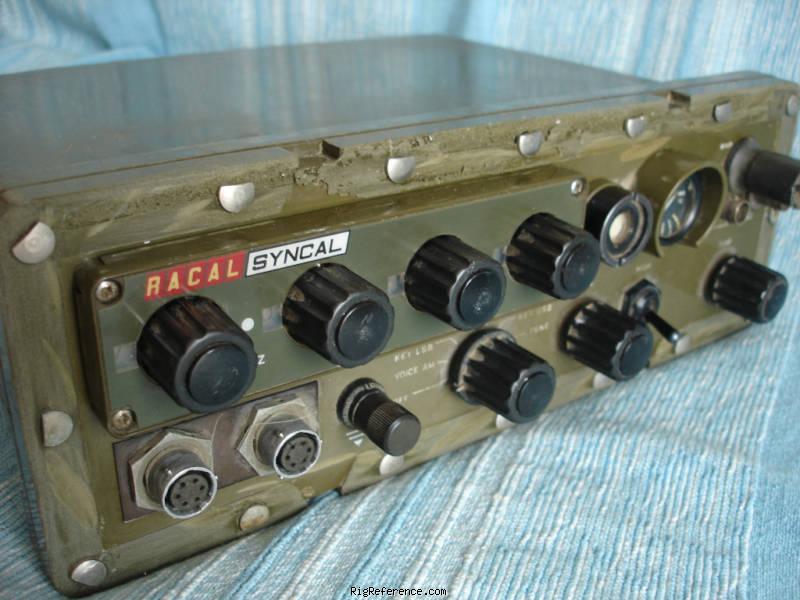

The TRA-921 is a solid state portable HF radio, built in the UK. Frequency is selected using decade switches and an antenna tuner (ATU) is built-in. The microphone connector seems similar to Clansman connector, but is in fact different. The TRA-921 is also known as the Racal Syncal.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
1 kHz
Memories
?

Receiver

RX-range
2-7.999 MHz
Modulations
AM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
2-7.999 MHz
Modulations
AM   CW   USB   LSB
RF-output
SSB: 5/20 W, AM: 1.5/5 W

Connections

Antenna
BNC + Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
18V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 197x and 198x in Great Britain

Other features

Usage
Military communication
Features + options
Built-in ATU
Accessories
-
RigReference ID
5409
MPN
RACAL-TRA-000921

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
quotation 8 years ago by te-electronic4@hotmail.com
Nice back-up rig 13 years ago by caglarakgungor

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Racal TRA-921. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Racal TRA-921 is around:

  • USD 21.00 ~ USD 3.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 134.27 Used / Good eBay
2000 USD 100.00 Used / Good caglarakgungor
