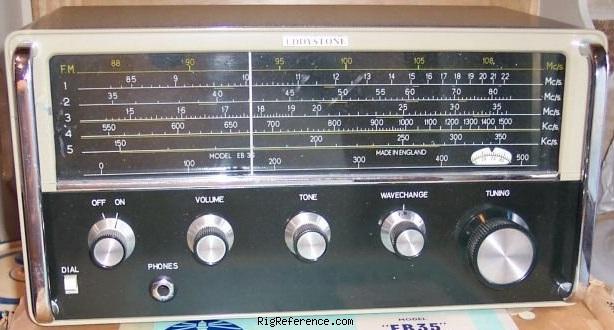

The Eddystone EB-35 Mk II marine communications receiver covers 150-350 / 550-1500 kHz / 1.5-3.5 / 3.5-8.5 / 8.5-22 MHz in AM and 88-108 MHz in FM. An optional AC power supply was available (924A) as was a 12/24 V DC supply (945A). Power supply has negative earth!

The similar Eddystone EB-35 Mk III (Statesman) has improved semi-conductor circuitry.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
150-350 / 550-1500 kHz / 1.5-22 / 88-108 MHz
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Single conversion
IF-frequencies
465 kHz
Image rejection
?
Audio output
0.75 W

Connections

Antenna
SO-239
Impedance
75/400Ω
Other
-

Electrical

Power requirements
6×U2 (1.5V) battery cells
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
Weight
?
Form factor
Base Station
Manufactured
Between 196x and 197x in Great Britain (Birmingham)

Other features

Usage
Marine / Navy
Features + options
AFC
Accessories
-
RigReference ID
5442
MPN
EDDYSTONE-EB-000035-MK-II
