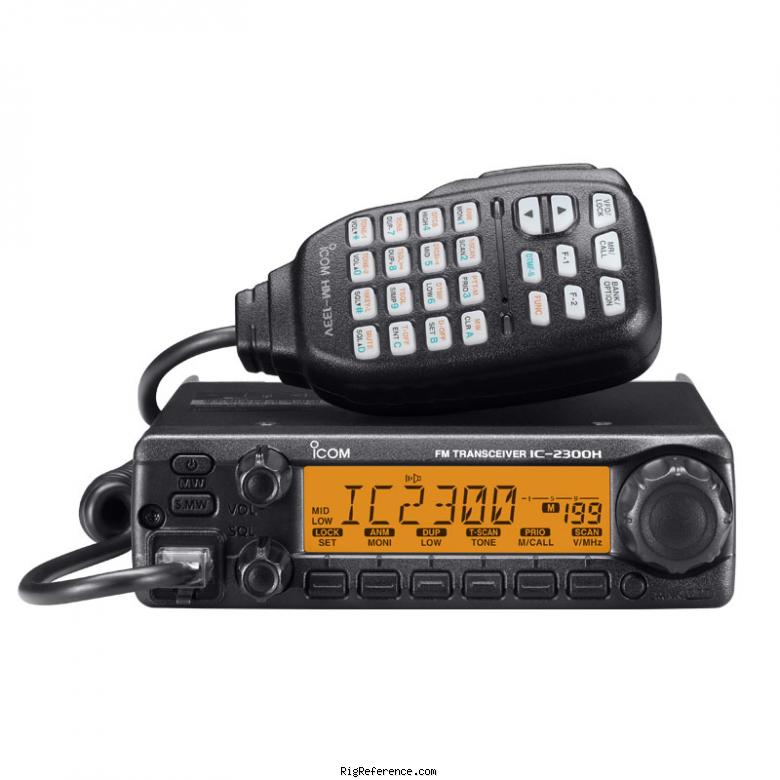

The ICOM IC-2300H is a 2m transceiver with a frequency range of 136-174 MHz. It has a receiver system of double conversion superheterodyne with IF frequencies of 1st: 46.35 MHz and 2nd: 450 kHz. The RF output is 5 / 10 / 25 / 65 W. It features CTCSS/DTCS, memory banks (10) and channels (207), wide/narrow channel setting, DTMF autodial, time-out timer, repeater lockout, automatic power off, S-meter squelch, selectable LCD backlight color. Dimensions are 40 × 140 × 162 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ± 3 p.p.m.
- Tuning steps
- ?
- Memories
- 207 channels in 10 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- FM N-FM
- Sensitivity
- Less than 0.18μV
- Selectivity
- W-FM
More than 6kHz (at 6dB)
Less than 14kHz (at 60dB)
N-FM
More than 3kHz (at 6dB)
Less than 9kHz (at 55dB) - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 46.35 MHz
2nd: 450 kHz - Image rejection
- > 60 dB
- Audio output
- 4.5W typ. (10% dist. 4Ω load)
Transmitter
- TX-range
- 2m
- Modulations
- FM N-FM
- RF-output
- 5 / 10 / 25 / 65 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC ±15%
- Current drain RX
- 0.4-1.5 A
- TX
- 11 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 162 mm (5.51 × 1.57 × 6.38 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2011 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS / DTCS
MIL-STD 810 G tested
Power supply voltage display
Wide/narrow channel setting
DTMF autodial
Time-out timer
Repeater lockout
Automatic power off
S-meter squelch
Selectable LCD backlight color (amber, yellow and green)
Weather channel receive and alert function (USA version only)
Automatic repeater function (USA version only)
Selectable squelch delay from short and long
Squelch attenuator reduces suppression from strong signals
PC to Tx and Tx to Tx cloning capability - Accessories
- -
- RigReference ID
- 5538
- MPN
- ICOM-IC-002300H
