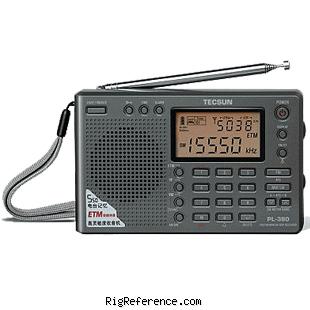

Tecsun PL-380

Handheld HF/VHF Receiver

Specs Manuals (0) Reviews (0) Prices (3) Compare

The Tecsun PL-380 is a handheld HF/VHF receiver. It covers 522-1620 kHz and 87/76/64-108 MHz (depending on country). The receiver features single conversion, 9 / 10 kHz tuning steps, 1 memory bank with 550 channels. It is powered by Mains or 4.5V DC (3 × R6 batteries) and weighs 453 gr. Dimensions are 86 × 142 × 28 mm.

General characteristics

HAM bands: None
Frequency stability: ?
Tuning steps: 9 / 10 kHz
Memories: 550 channels in 1 bank(s)

Receiver

RX-range: 522-1620 kHz
87/76/64-108 MHz (depending on country)
Modulations: AM FM W-FM Stereo
Sensitivity: 3 µV
Selectivity: ?
Filters: ?
Receiver system: Single conversion
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: Built-in telescopic
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains or 4.5V DC (3 × R6 batteries)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): 142 × 86 × 28 mm (5.59 × 3.39 × 1.10 in)
Weight: 453 gr (16.0 oz)
Form factor: Portable
Manufactured: Between 20xx and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Clock & Timer Functions
Sleep Timer
Digital Sound Processing
Temperature sensor
Accessories: -
RigReference ID: 5649
MPN: TECSUN-PL-000380

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tecsun PL-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Tecsun PL-380 in Good condition is around:

EUR 33 ~ EUR 53
USD 36

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2022	EUR 48.83	New / Mint	Sandip
2021	EUR 60.00	Used / Good	SWL_de
2013	USD 39.95	Used / Good	universal-radio
