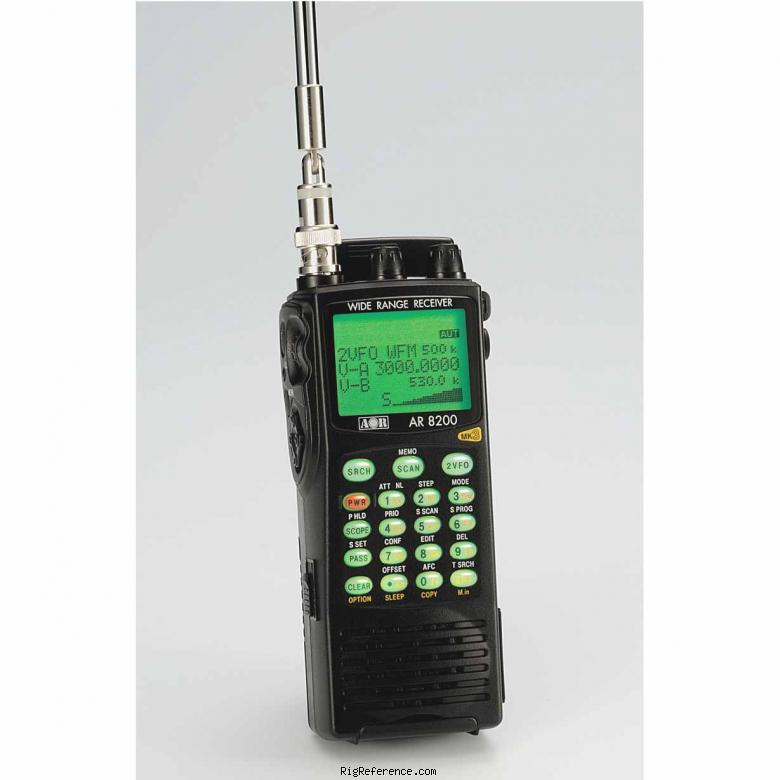

AOR AR-8200D

Handheld HF/VHF/UHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

The AOR AR-8200D is an update of the AOR AR-8200 Mk3. This model add voice record (up to 68 hours), a CTCSS decoder, a voice inverter (gov. version only), APCO25 (P25) decoder and a USB computer interface. Voice recordings are stored on a micro SD card.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: ?
Memories: 1000 channels in 20 bank(s)

Receiver

RX-range: 0.5-3000 MHz (less cellular)
Modulations: AM N-AM W-AM S-FM N-FM W-FM CW USB LSB APCO-25
Sensitivity: AM (10 dB S/N)
0.53-2 MHz: 3.5 µV
2-30 MHz: 2.5 µV
30-470 MHz: 1.5 µV
N-FM (12 dB SINAD)
30-470 MHz: 0.85 µV
470-1040 MHz: 0.9 µV
1040-2040 MHz: 9 µV
2040-3000 MHz: 25 µV
W-FM (12 dB SINAD)
30-470 MHz: 1.5 µV
Selectivity: SSB/NAM
3 kHz (-6 dB), 9 kHz (-60 dB)
AM/S-FM
9 kHz (-6 dB), 20 kHz (-40 dB)
W-AM/N-FM
12 kHz (-6 dB), 25 kHz (-40 dB)
W-FM
150 kHz (-3 dB), 360 kHz (-20 dB
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 4.8-6V DC (4R6/AA) or 12V DC external
Current drain RX: 25-190 mA
TX: -

Physical

Dimensions (w×h×d): 61 × 143 × 39 mm (2.40 × 5.63 × 1.54 in)
Weight: 217 gr (7.7 oz) without batteries and antenna
Form factor: Handheld
Manufactured: Between 2012 and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS
Voice recording on micro SD card
USB interface
Analog voice scramler decoder (inverter)
Accessories: -
RigReference ID: 5983
MPN: AOR-AR-008200D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No manuals yet for the AOR AR-8200D. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.

: Upload relevant documents

Reviews

Be the first to review the AOR AR-8200D

No reviews yet. Share your experience and earn +10 reputation.

Write the first review

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used AOR AR-8200D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the AOR AR-8200D in Good condition is around:

USD 557

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2019	USD 500.00	Used / Good	eBay
