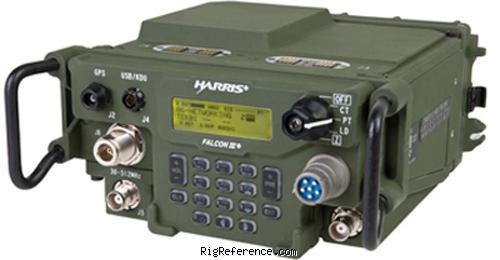

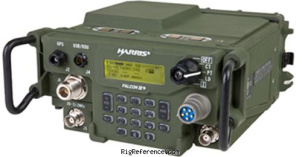

Harris AN/PRC-117G

Wideband / Multiband Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Harris AN/PRC-117G rigs and spare parts on eBay

Find the Harris AN/PRC-117G on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

Backpack / vehicle mounted radio set with internal SAASM GPS. Supports FM and AM modulations, as well as SINCGARS, Havequick II, DAMA, 181B Dedicated Channel TACSAT, High Performance Waveform (HPW), Integrated
Waveform (IW), as well as Soldier Radio Waveform (SRW), and the Harris Adaptive Networking Wideband Waveform (ANW2). Various encryption modes are available.

RT nomenclature: RT-1949(P)(C)

General characteristics

HAM bands: ?
Frequency stability: 0.5 p.p.m.
Tuning steps: 10 Hz from 30 MHz-512 MHz
100 Hz from 513 MHz-2 GHz
Memories: 100 channels in bank(s)

Receiver

RX-range: Narrowband: 30-90 / 90-225 / 225-512 MHz
Wideband: 225-2000 MHz
SATCOM: 243-270 / 292-318 MHz
Modulations: AM FM APCO-25
Sensitivity: ?
Selectivity: Narrowband: 8.33 / 12.5 / 25
Wideband: 0.5 / 1.2 / 2.5 / 5 MHz
SATCOM: 5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: Narrowband: 30-90 / 90-225 / 225-512 MHz
Wideband: 225-2000 MHz
SATCOM: 243-270 / 292-318 MHz
Modulations: AM FM APCO-25
RF-output: 20 W (VHF), 10 W (UHF)

Connections

Antenna: BNC + N-type
Impedance: 50Ω
Other: -

Electrical

Power requirements: 19-34 V DC
Current drain RX: ?
TX: 55 W max

Physical

Dimensions (w×h×d): 188 × 94 × 343 mm (7.40 × 3.70 × 13.50 in) with battery
Weight: 5.45 kg (12.0 lbs) with battery
Form factor: Mobile
Manufactured: Between 20xx and 20xx in USA

Other features

Usage: Military communication
Features + options: Ethernet
RS-232 / RS-422
USB
SAASM (Commercial GPS optional)
MIL-STD-810G
Accessories: -
RigReference ID: 6046
MPN: HARRIS-AN/PRC-000117G
