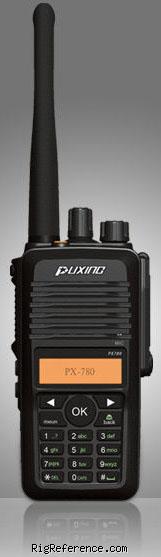

The Puxing PX-780 is a single-band handheld transceiver. It covers 136-174 MHz for both transmit and receive. The radio features a frequency stability of ±1 ppm and tuning steps of 12.5 kHz. Image rejection is ≥60 dB. RF output power is selectable between 1 and 4 watts. Audio output is 1 W at 3% THD. Memory capacity includes 1 bank with 1000 channels. The PX-780 supports the ETSI TS 102 361-1,-2,-3 digital protocol, has a built-in GPS receiver and SMS function. Dimensions are 114 × 54 × 34 mm (excluding antenna). Weight is 270 gr including battery.
General characteristics
- HAM bands
- ?
- Frequency stability
- ±1 p.p.m.
- Tuning steps
- 12.5 kHz
- Memories
- 1000 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 MHz
- Modulations
- N-FM W-FM
- Sensitivity
- Analog
0.35μV / -116 dBm (20dB SINAD)
0.22μV / -120 dBm
Digital
0.3μV / -117.4 dBm (BER 5%)
0.7μV / -110 dBm (BER1%) - Selectivity
- TIA603C: 65 dB @ 12.5 kHz
ETSI: 60 dB @ 12.5 kHz - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ≥60dB
- Audio output
- 1 W @ 3% THD
Transmitter
- TX-range
- 136-174 MHz
- Modulations
- N-FM W-FM
- RF-output
- 1 / 4 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 54 × 114 × 34 mm (2.13 × 4.49 × 1.34 in) not including antenna
- Weight
- 270 gr (9.5 oz) including battery
- Form factor
- Handheld
- Manufactured
- Between 2014 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67
Digital protocol ETSI TS 102 361-1,-2,-3
GPS standard
SMS function - Accessories
- -
- RigReference ID
- 6071
- MPN
- PUXING-PX-000780
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Puxing PX-780. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Puxing PX-780 is around:
- USD 207 ~ USD 384
This estimate is based on similar equipment and may not reflect the exact value of this model.
