General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
≥ 0.5 p.p.m. after warm-up (5 minutes)
Tuning steps
1 kHz
Memories
100 channels in 1 bank(s)

Receiver

RX-range
100 kHz - 30 MHz
Modulations
CW   USB   LSB
Sensitivity
≥ 0.45 µV
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-80 m
Modulations
CW   USB   LSB
RF-output
5 W

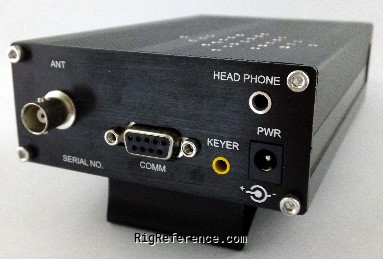

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
12-14 V DC
Current drain RX
350 mA
TX
1.2 A

Physical

Dimensions (w×h×d)
97 × 40 × 155 mm (3.82 × 1.57 × 6.10 in)
Weight
650 gr (1.4 lbs)
Form factor
Portable
Manufactured
Between 2017 and 20xx in China

Other features

Usage
Amateur / Ham radio operators
Features + options
RIT
CW Keyer
Compatible with Ham Radio Deluxe
LCD display
Accessories
-
RigReference ID
6192
MPN
XIEGU-X000001M

Manuals, diagrams and brochures

Xiegu X1M User's Guide PDF - 571.4 kB, submitted by RigReference
Xiegu X1M Manual v.2 PDF - 342.8 kB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X1M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Xiegu X1M is around:

  • USD 283.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2017 USD 395.00 New / Mint RigReference
