General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
?
Tuning steps
?
Memories
?

Frequency range

Range
160-6 m

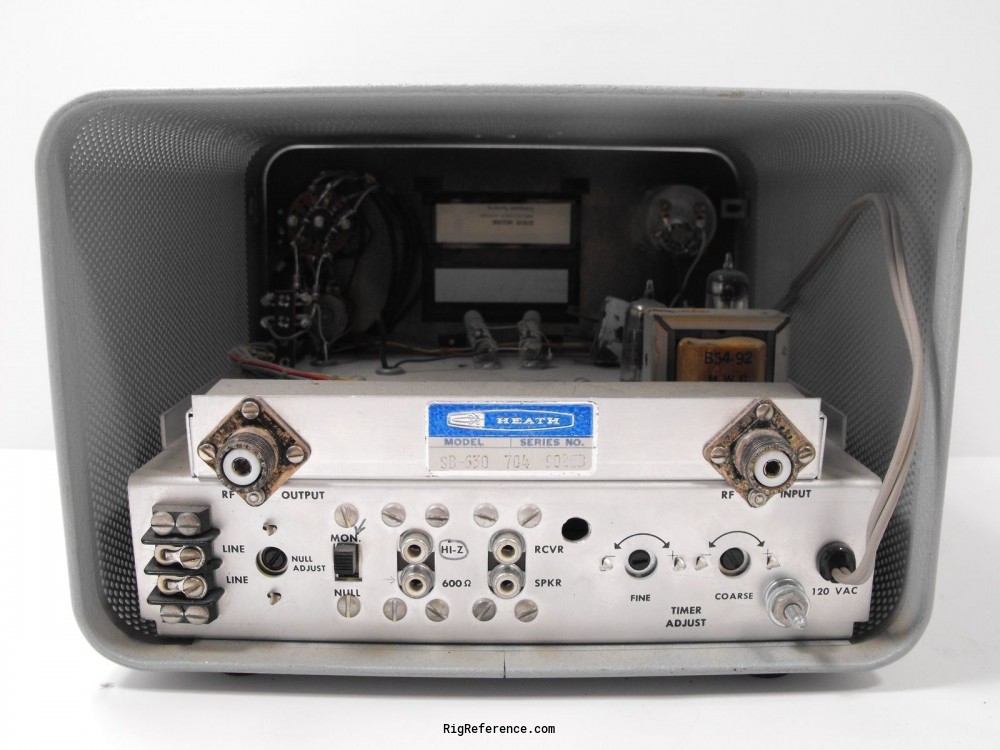

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50/75Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
254 × 171 × 279 mm (10.00 × 6.73 × 10.98 in)
Weight
4.50 kg (9.9 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
Clock
Alarm
Accessories
-
RigReference ID
6302
MPN
HEATHKIT-SB-000630

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SB-630. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year Historic price Condition Submitted by
