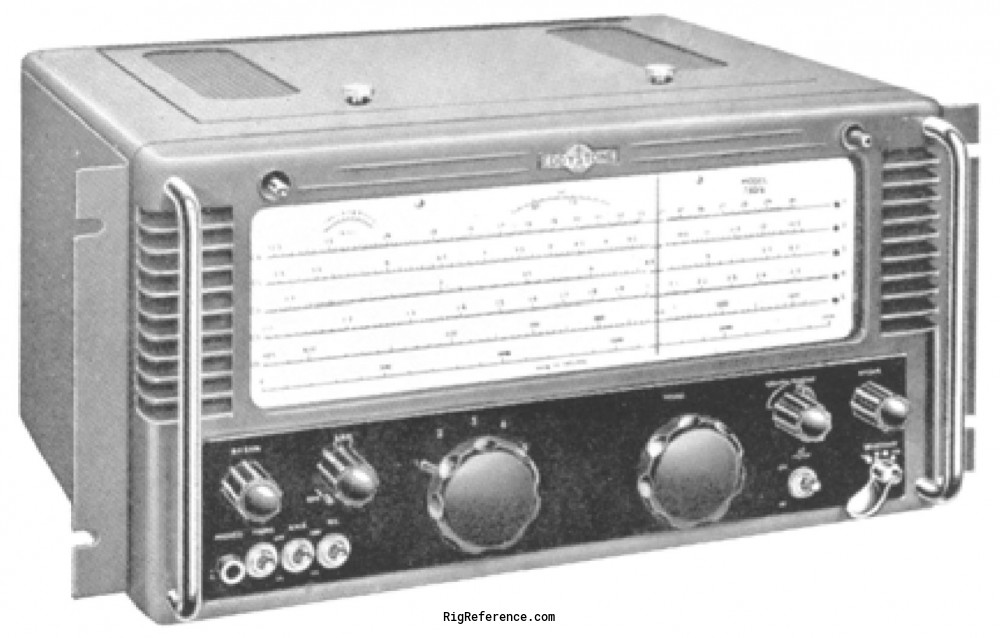

Eddystone 730/7

General characteristics

HAM bands

?

Frequency stability

Below 10 MHz: 50 Hz/MHz Above 10 MHz: 20 Hz/MHz Both after 30 minutes warm-up

Tuning steps

?

Memories

?

Receiver

RX-range

0.2-0.42 / 1.1-30 MHz in 5 bands

Modulations

AM   CW

Sensitivity

AM: 5 µV
CM 1-2 µV

Selectivity

1.5 / 3.0 / 6.0 / 12.0 kHz selectable (-6 dB)

Filters

500 Hz switchable crystal filter

Receiver system

Superheterodyne

IF-frequencies

450 kHz

Image rejection

?

Audio output

1 W

Connections

Antenna

-

Impedance

70/80Ω

Other

-

Electrical

Power requirements

Mains (100-125 or 200-250 V AC) or external PSU

Current drain RX

80 W

TX

-

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 1959 and 196x in Great Britain

Other features

Usage

Military communication

Features + options

-

Accessories

-

RigReference ID

6358

MPN

EDDYSTONE-000730/7
