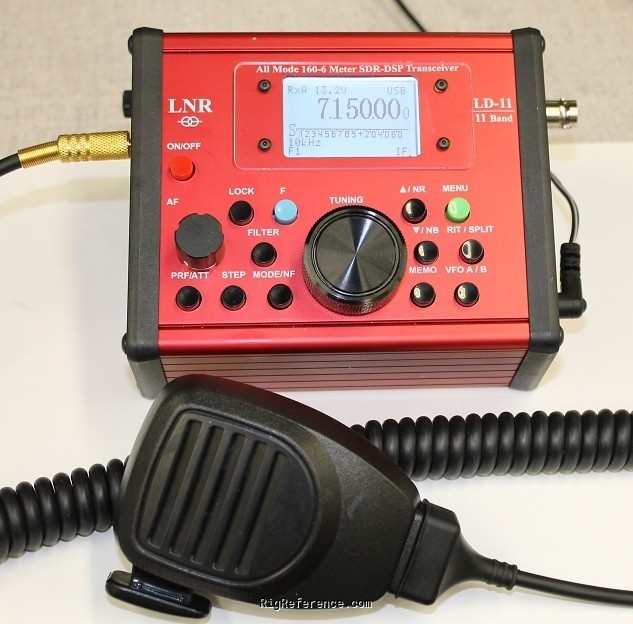

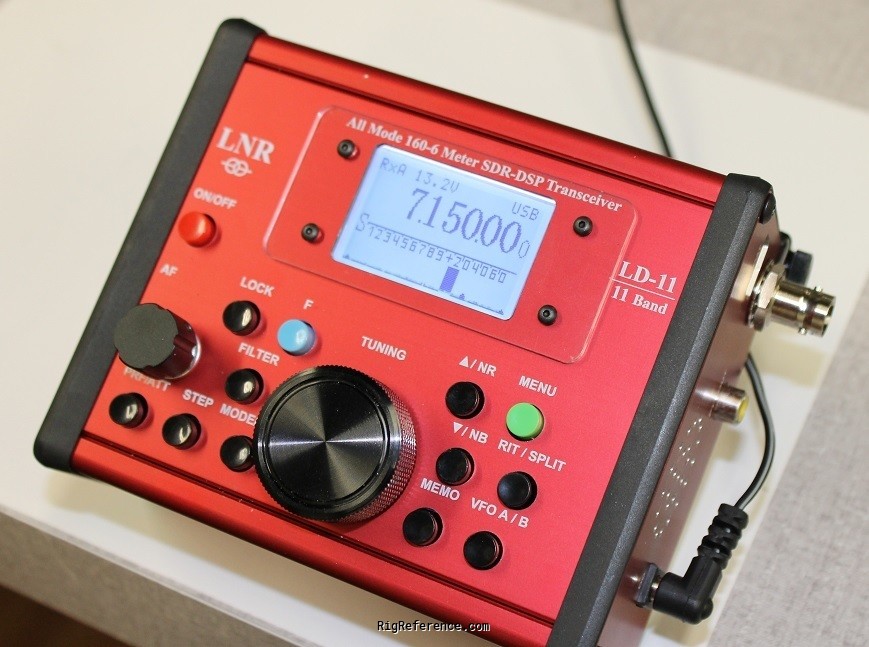

The LNR Precision LD-11 is a Digital Direct Conversion, SDR type tranceiver with build-in DSP CPU (SM32a).
This enables direct sampling with extremely low phase and floor noise.
The DSP is unique and features two independent channels. It also employs a unique differential algorithm within the software which is applied for IQ processing of the channels with phase suppression of the unwanted side-band channel.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ± 3 p.p.m. (Si570 defined) typical over 0-50 °C
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 1.8–29.990 / 50-54 MHz
- Modulations
- AM FM CW USB LSB RTTY PSK31/63 SSTV
- Sensitivity
- 0.15 µV w/o preamp
- Selectivity
- CW: 50-1000 Hz
SSB: 250-3600 Hz - Filters
- 300 / 500 / 1.3 / 1.6 / 1.9 / 2.2 / 2.5 kHz (DSP)
- Receiver system
- Digital Direct Conversion / SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 8 ohms, .5 watts
Transmitter
- TX-range
- 160-10 / 6 m
- Modulations
- AM FM CW USB LSB RTTY PSK31/63 SSTV
- RF-output
- 5-8 W

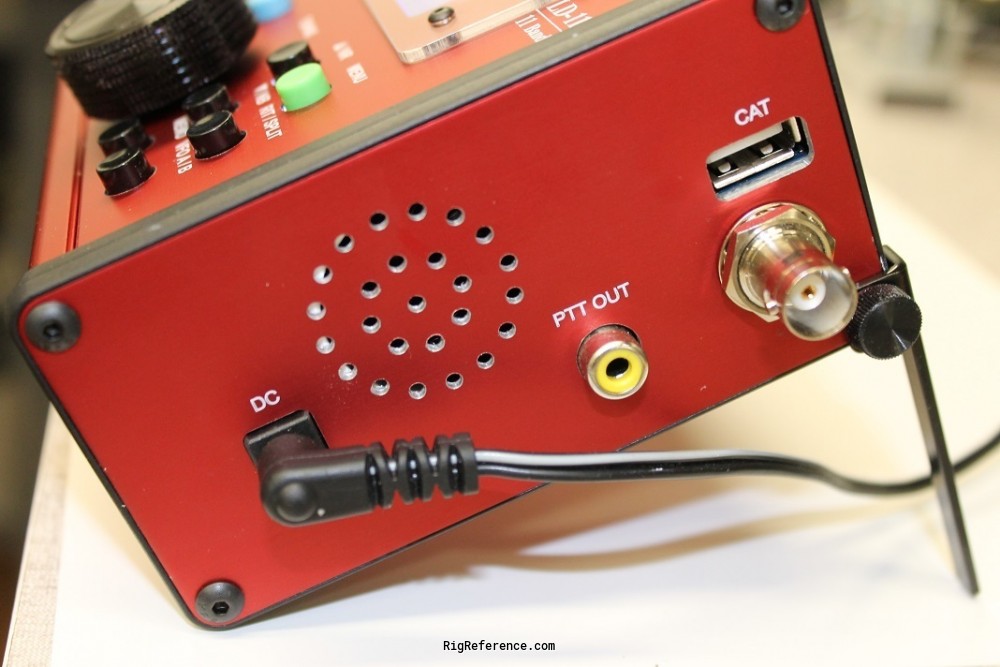

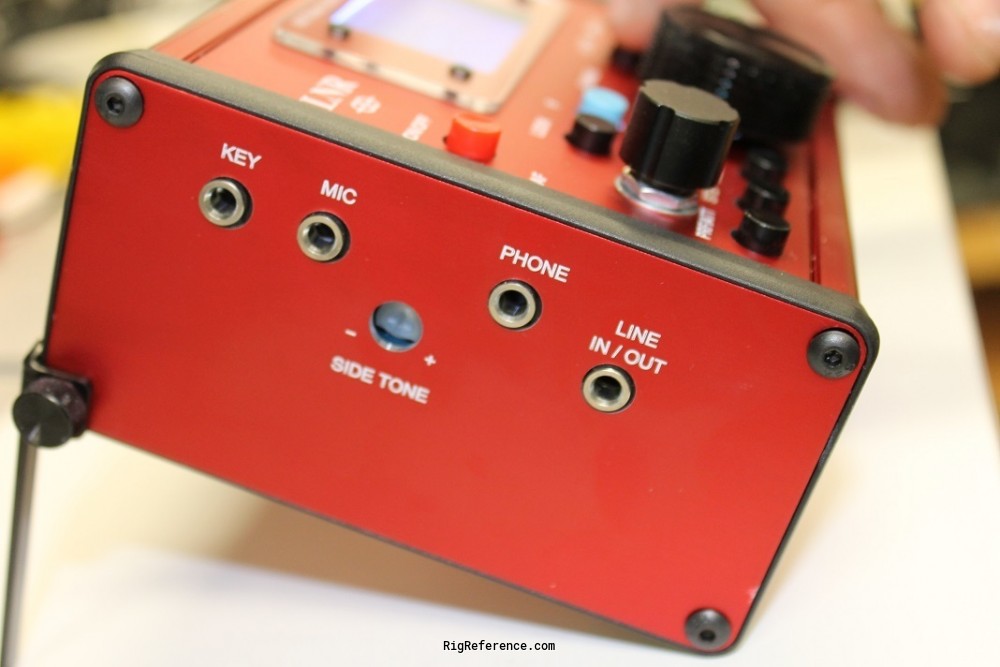

Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 10.5-15.0 V DC
- Current drain RX
- 350 mA
- TX
- 2 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 540 gr (1.2 lbs)
- Form factor
- Portable
- Manufactured
- Between 2018 and 20xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 128×64 pixels LCD
- Accessories
- -
- RigReference ID
- 6376
- MPN
- LNR-PRECISION-LD-000011
Manuals, diagrams and brochures
- LNR LD-11 User Manual PDF - 978.0 kB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used LNR Precision LD-11. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the LNR Precision LD-11 is around:
- USD 615.00
These estimates are based on the following prices:
