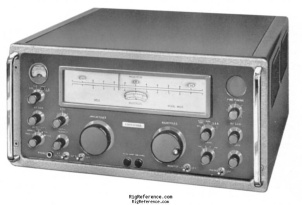

High-stability communications receiver covering 500 kHz - 30.5 MHz in AM, CW and SSB. With the optional H5011 adaptor, FSK mode is also supported. This model is identical to the Eddystone 880/3.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.5-30.5 MHz in 30 bands
Modulations
AM   CW   SSB   FSK
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
?
Image rejection
?
Audio output
?

Connections

Antenna
Clamps / screws
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
Max 100 W
TX
-

Physical

Dimensions (w×h×d)
483 × 222 × 400 mm (19.02 × 8.74 × 15.75 in)
Weight
40.00 kg (88.3 lbs)
Form factor
Base Station
Manufactured
Between 1964 and 196x in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6388
MPN
MARCONI-H002301
