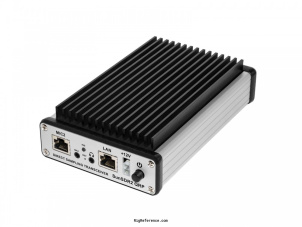

Non-PRO version of the Expert Electronics SunSDR2 PRO.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  10m
Frequency stability
+/- 2.5 p.p.m.
Tuning steps
Software defined
Memories
10000 channels in 10000 bank(s)

Receiver

RX-range
0.01-65 / 95-148 MHz (300 MHz with oversampling)
Modulations
AM   AM-sync   N-FM   W-FM   CW   USB   LSB   DSB   Multiple (Software defined)
Sensitivity
70 nV (with preamp)
Selectivity
Software defined
Filters
Software defined
Receiver system
Direct Down Conversion, SDR
IF-frequencies
Software defined
Image rejection
≥ 90 dB
Audio output
Through computer

Transmitter

TX-range
0.01-65 / 95-148 MHz (300 MHz with oversampling)
Modulations
AM   AM-sync   N-FM   W-FM   CW   USB   LSB   DSB
RF-output
HF: 20 W, VHF: 8 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
10 to 15 V DC
Current drain RX
?
TX
3A max

Physical

Dimensions (w×h×d)
165 × 100 × 35 mm (6.50 × 3.94 × 1.38 in)
Weight
500 gr (1.1 lbs)
Form factor
Headless
Manufactured
Between 201x and 20xx in Russia

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6426
MPN
EXPERT-ELECTRONICS-SUNSDR000002

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Expert Electronics SunSDR2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year Historic price Condition Submitted by
