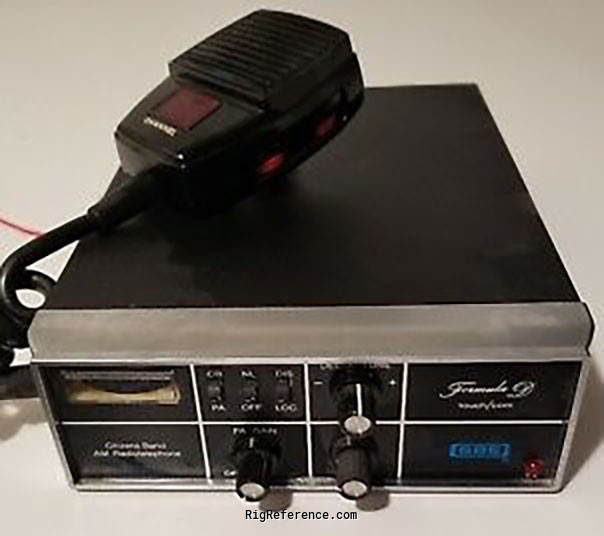

Identical to the SBE Formula D except this model has only 23 channels touch key controls for channel selection.

General characteristics

HAM bands
11m (CB)
Frequency stability
± 0.003 %
Tuning steps
Channelized
Memories
23 channels in 1 bank(s)

Receiver

RX-range
26.965-27.255 MHz
Modulations
AM
Sensitivity
0.5 µV (10 dB S+N/N)
Selectivity
20 kHz (-50 dB), 40 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10 MHz
2nd: 455 kHz
Image rejection
-40 dB
Audio output
3.5 W at 10% distortion / 8 ohm

Transmitter

TX-range
26.965-27.255 MHz
Modulations
AM
RF-output
4 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7-15.9 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
170 × 60 × 240 mm (6.69 × 2.36 × 9.45 in)
Weight
2.27 kg (5.0 lbs)
Form factor
Mobile
Manufactured
Between 197x and 197x in Japan

Other features

Usage
Citizen Band (27Mc)
Features + options
PA
Delta tune (± 750 Hz)
Accessories
-
RigReference ID
6488
MPN
SBE-FORMULA D TOUCH/COM
