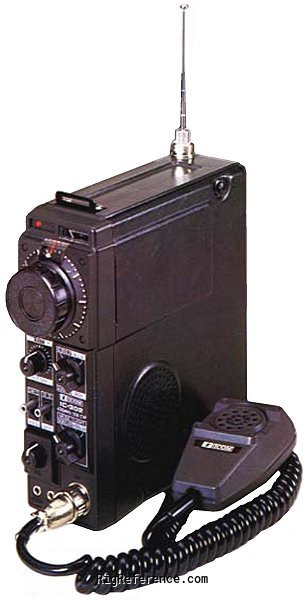

This is the European version of the ICOM IC-402 and part of a range of models:

The ICOM IC-502 - 6 Meter SSB
The ICOM IC-202 - 2 Meter SSB
The ICOM IC-212 - 2 Meter FM (European Model)
The ICOM IC-215E - 2 Meter FM
The ICOM IC-302 - 70 cm SSB (European Model)
The ICOM IC-402 - 70 cm SSB

General characteristics

HAM bands
6m  70cm
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
430-436 MHz
Modulations
CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
430-436 MHz
Modulations
CW   SSB
RF-output
3 W

Connections

Antenna
SO-239 + Built-in telescopic
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
40 mA
TX
Max 1 A

Physical

Dimensions (w×h×d)
61 × 183 × 162 mm (2.40 × 7.20 × 6.38 in)
Weight
2.00 kg (4.4 lbs)
Form factor
Handheld
Manufactured
Between 1978 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
VXO
Accessories
-
RigReference ID
6506
MPN
ICOM-IC-000302
