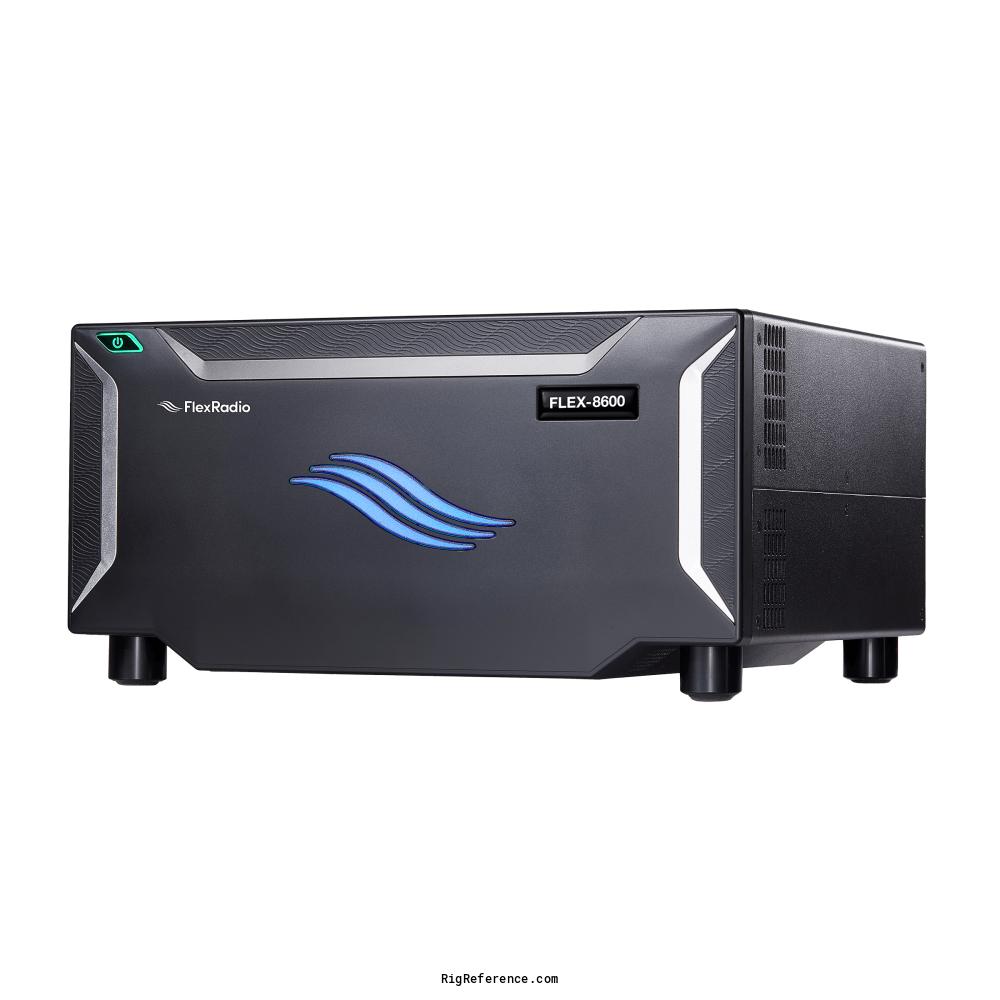

FlexRadio FLEX-8600
Remotely operated HF/VHF SDR transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
The FLEX-8600 model is designed for the Ham who wants to operate the radio exclusively as a server from PC, laptop, Maestro, Mac* or iOS* clients – whether local or remote.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- (0⁰C – 50⁰C) 0.5 p.p.m. (TCXO)
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 30 kHz – 54 MHz
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY Digital (other) DV
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR, SDR, Direct Sampling SDR 245.76Msps – 16 bit
- IF-frequencies
- ?
- Image rejection
- ≥ 100 dB
- Audio output
- 1W diagnostic speaker
Transmitter
- TX-range
- 160-6 m
- Modulations
- AM AM-sync FM N-FM CW USB LSB RTTY Digital (other) DV
- RF-output
- 160m-6m Transmitter Output: 1-100W (25W AM)

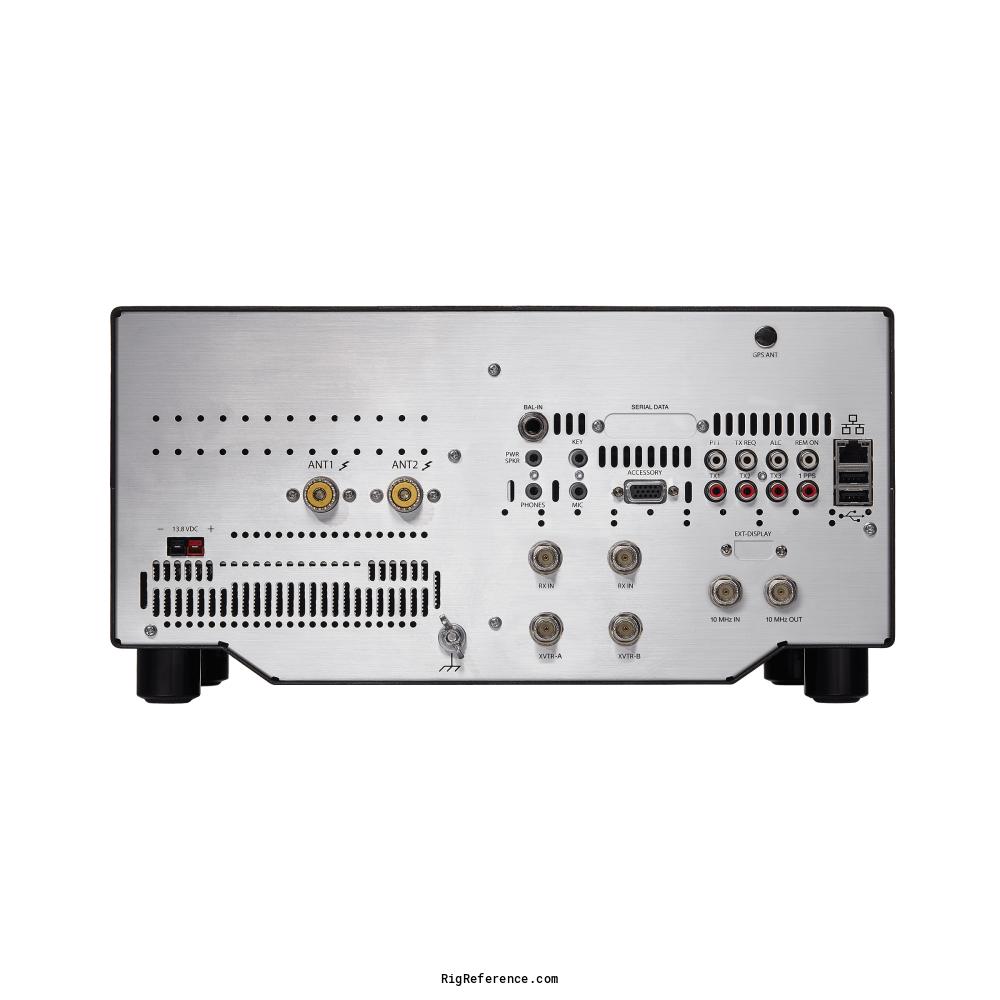

Connections
- Antenna
- BNC + SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC +/- 15% (14 V DC Nominal)
- Current drain RX
- 1.7 A
- TX
- 23 A
Physical
- Dimensions (w×h×d)
- 356 × 171 × 337 mm (14.02 × 6.73 × 13.27 in)
- Weight
- ?
- Form factor
- Headless
- Manufactured
- Between 2024 and 202x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Optional Integrated Automatic Antenna Tuner Range: 3:1 SWR
Optional Continuous MARS/CAP Coverage with Extended Transmit Filter - Accessories
- -
- RigReference ID
- 6630
- MPN
- FLEXRADIO-FLEX-008600
Manuals, diagrams and brochures
-
No manuals yet for the FlexRadio FLEX-8600. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the FlexRadio FLEX-8600
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio FLEX-8600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the FlexRadio FLEX-8600 in Good condition is around:
- USD 3,683
These estimates are based on the following prices:
