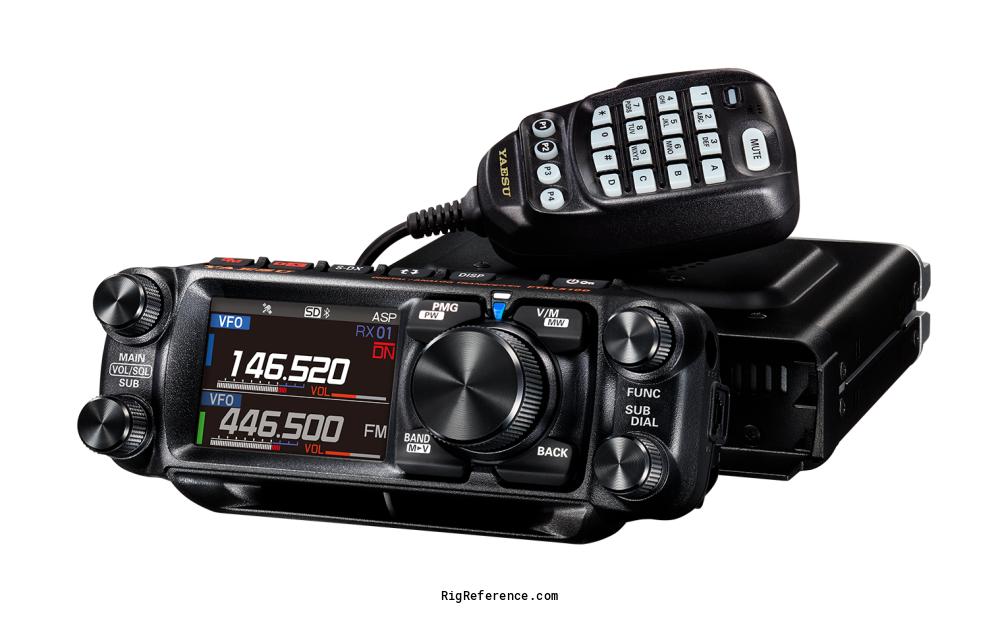

Yaesu FTM-510 ASP

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 p.p.m. @ -20 to +60°C (-4 to +140°F)

Tuning steps

5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

1053 channels in 1 bank(s)

Receiver

RX-range

108-550 MHz

Modulations

FM   N-FM   C4FM

Sensitivity

AM (10 dB S/N)
108-137 MHz: 0.8 µV
300-336 MHz: 0.8 µV

FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
174-222 MHz: 0.3 µV
222-300 MHz: 0.25 µV
336-420 MHz: 0.25 µV
420-470 MHz: 0.2 µV
470-550 MHz: 0.2 µV

DV/Fusion (BER 1%)
2 m/70 cm: 0.19 µV

Selectivity

12 kHz (-6 dB)
30 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 56.75 MHz (Main RX) - 55.85 MHz (Sub RX)
2nd: 450 kHz

Image rejection

?

Audio output

3 W (Main unit), 6 W (Control head) at 10% distortion / 8 ohm

Transmitter

TX-range

144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)

Modulations

FM   N-FM   C4FM

RF-output

5 / 25 / 55 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

11.7-15.8 V DC

Current drain RX

500 mA

TX

11 A

Physical

Dimensions (w×h×d)

156 × 64 × 59 mm (6.14 × 2.52 × 2.32 in) Control unit

Weight

1.40 kg (3.1 lbs)

Form factor

Base Station

Manufactured

Between 2025 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6639

MPN

YAESU-FTM-000510-ASP
