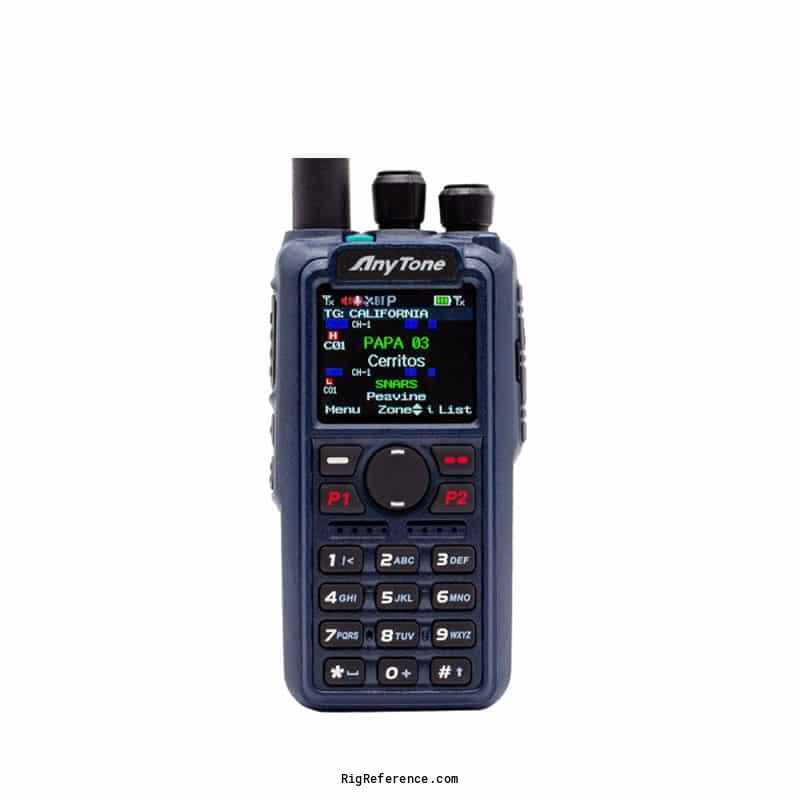

Anytone AT-D890UV

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 p.p.m. @ -20 to +55°C (-4 to +131°F)

Tuning steps

5 / 6.25 / 8.33 kHz

Memories

4000 channels in 1 bank(s)

Receiver

RX-range

136-174 / 400-480 MHz

Modulations

AM   FM   N-FM   DMR   NXDN

Sensitivity

FM: 0.25 µV (12 dB SINAD)
N-FM: 0.35 µV (12 dB SINAD)
DMR: 0.3 µV (BER 5%)

Selectivity

FM: 65 dB (Adjacent channel)
N-FM: 60 dB (Adjacent channel)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

≥ 60 dB

Audio output

1 W at 5% distortion / 16 ohm

Transmitter

TX-range

87.5-108 / 108-174 / 400-480 MHz

Modulations

FM   N-FM   DMR   NXDN

RF-output

7 / 5 / 2.5 / 0.2 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

61 × 129 × 42 mm (2.40 × 5.08 × 1.65 in)

Weight

293 gr (10.3 oz) with battery

Form factor

Handheld

Manufactured

Between 2025 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

DMR APRS reporting
1.7" TFT display
10000 talk groups and 150000 contacts
Auto-sense DMR or FM reception
GPS

Accessories

-

RigReference ID

6663

MPN

ANYTONE-AT-D000890UV

Manuals, diagrams and brochures

No manuals yet for the Anytone AT-D890UV. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Anytone AT-D890UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Anytone AT-D890UV in Good condition is around:

• EUR 195
• GBP 165
• USD 225

Price History Chart

These estimates are based on the following prices:
