Nicknamed "D-Core".
Transmitter
Spurious suppression: ≥55 dB
Carrier suppression: ≥40 dB
Sideband suppression: ≥50 dB
SSB frequency response: 300-2700 Hz (-6 dB)
FM deviation: ±5 kHz
Microphone impedance: 200 ohm - 10 kohm
Antenna tuner
Matching range: 20-150 ohm
Initial tuning time: ≤10 s, memory recall: ≤0.1 s
Operating temperature: 0-55 °C
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- 1 Hz (minimum)
- Memories
- ?
Receiver
- RX-range
- 0.5-30 / 50-54 MHz
- Modulations
- AM N-FM CW SSB Digital (other)
- Sensitivity
- SSB/CW/FM: 0.2 µV
AM: 2 µV
MDS: -138 dBm - Selectivity
- ?
- Filters
- ?
- Receiver system
- Direct RF sampling SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 0.5-30 / 50-54 MHz
- Modulations
- AM N-FM CW SSB Digital (other)
- RF-output
- HF: 100 W ±1 dB, 50 MHz: 90 W ±1 dB
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 9.0-15.0 VDC (Anderson Powerpole)
- Current drain RX
- 1.2 A max
- TX
- 25 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2026 and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options

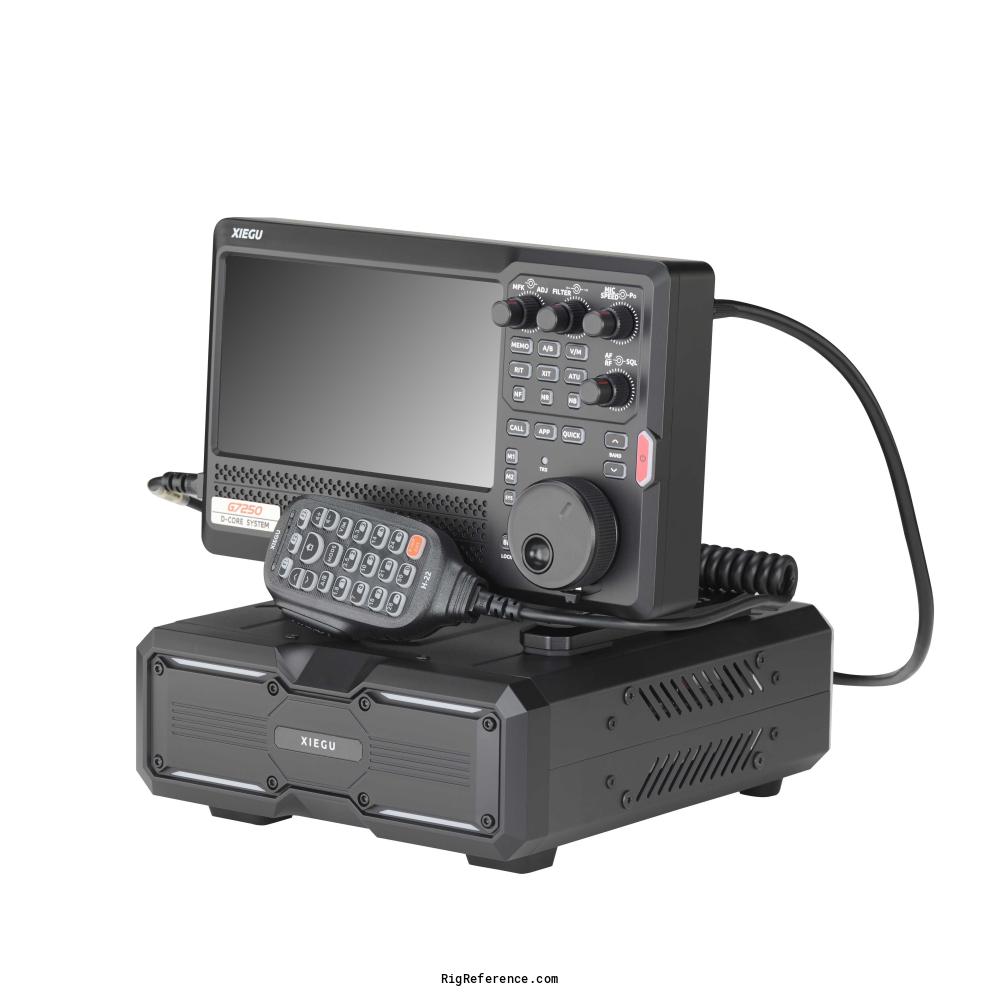

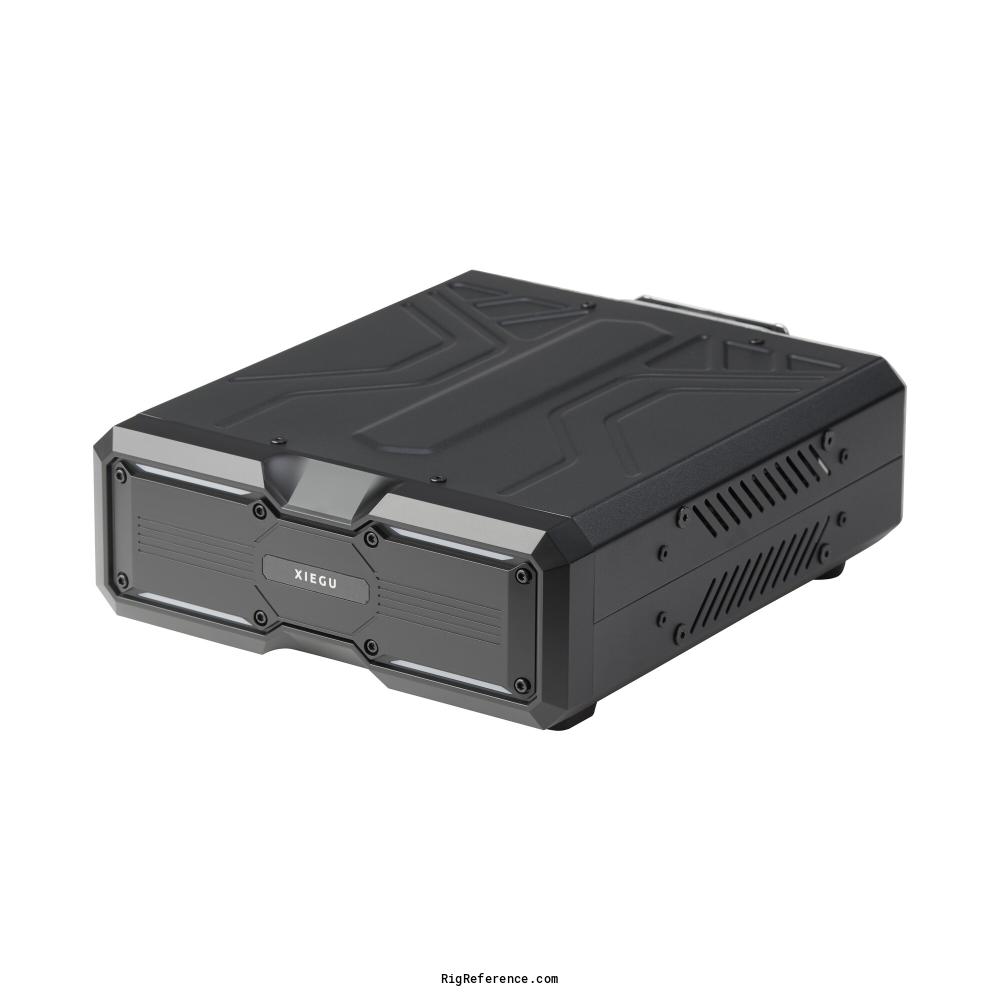

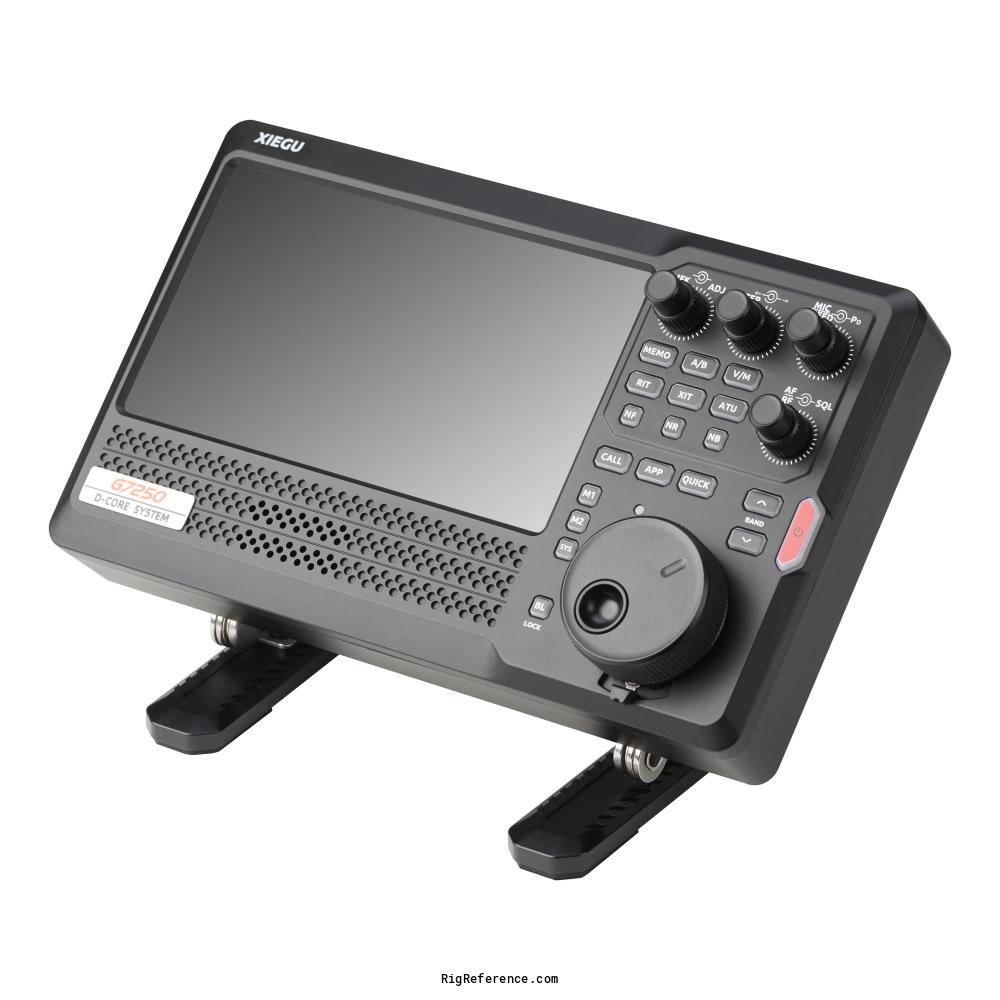

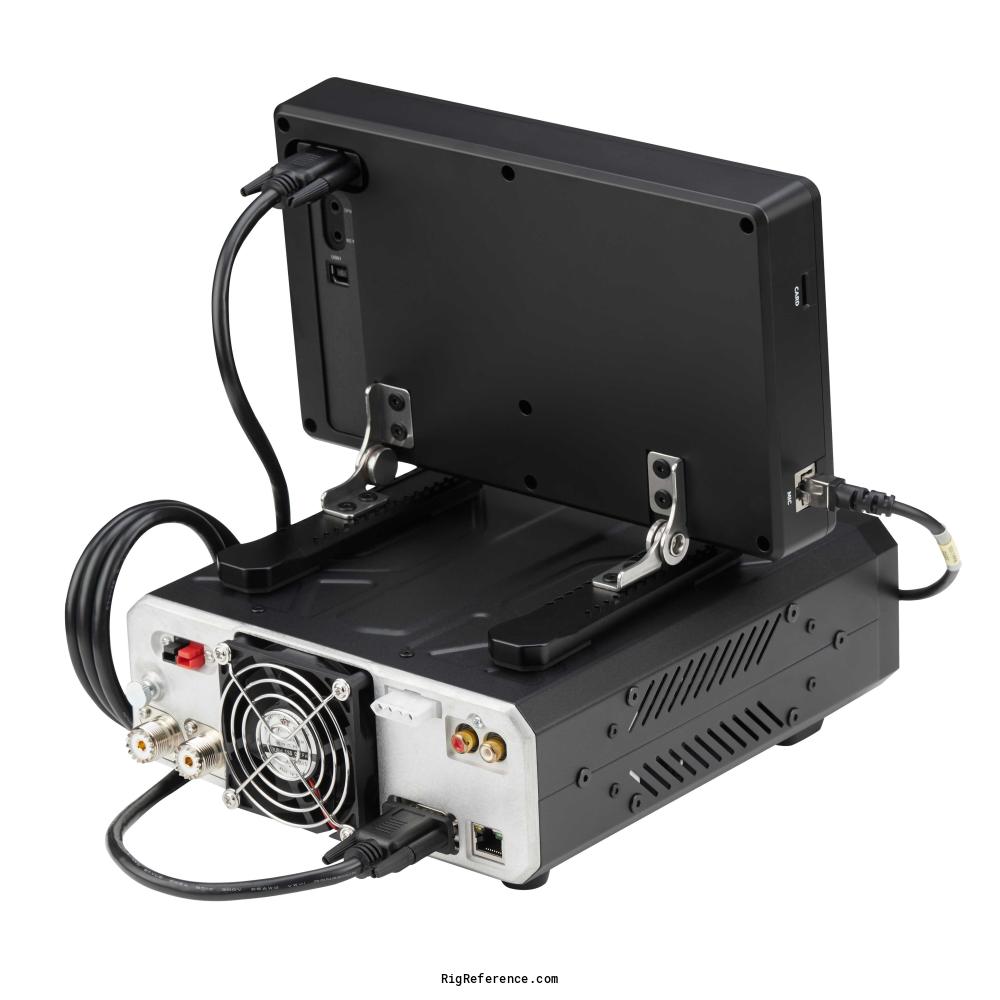

- Split design: RF unit with detachable controller

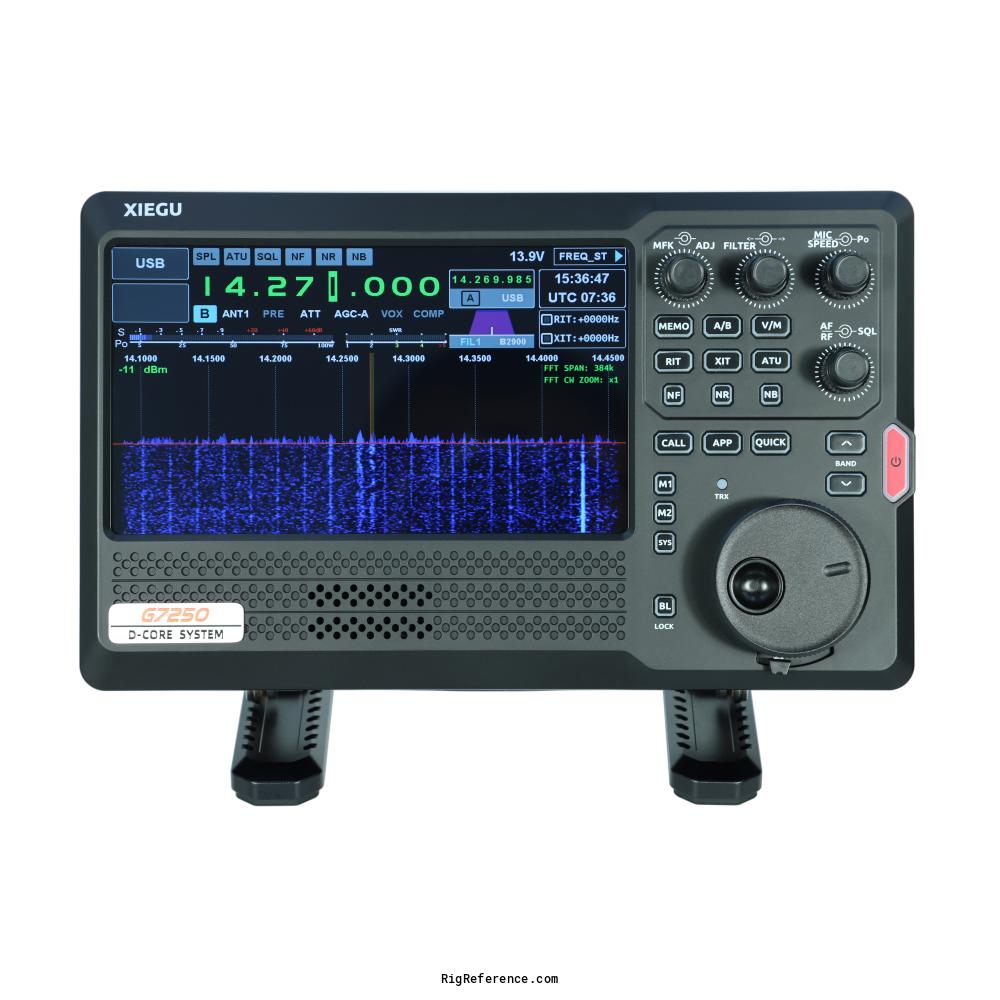

7" capacitive colour touchscreen
Built-in automatic antenna tuner (20-150 ohm) with per-band memory
Spectrum scope and waterfall
Adjustable digital filters, digital noise reduction, noise blanker
Voice recorder
USB (digital modes)
Network-based remote operation
Two selectable SO-239 antenna ports - Accessories
- -
- RigReference ID
- 6666
- MPN
- XIEGU-G007250
