Midland/Alan 8001 Pro

CB Mobile Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

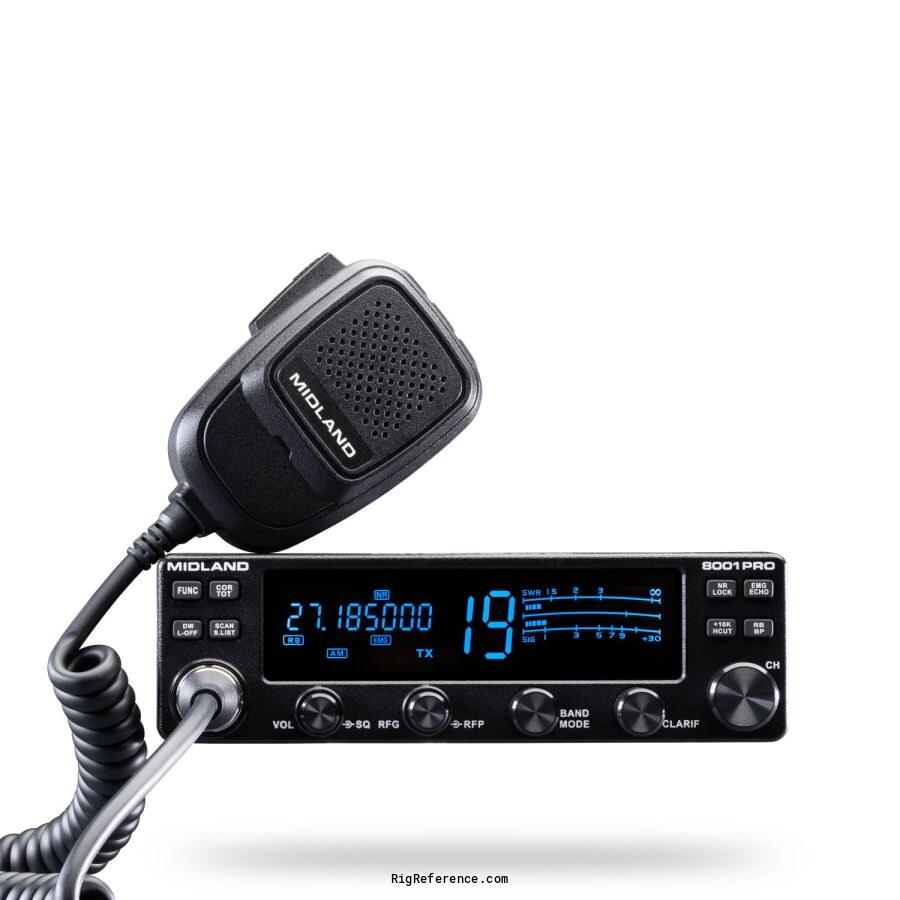

8001 Pro front panel with microphone - Submitted by Peter

Max. FM deviation: ≤1.9 kHz
Spurious emissions: < -54 dBm
Adjacent channel power: < 20 µW
Adjacent channel rejection: better than 60 dB
Frequency response: 300-3000 Hz
Operating temperature: -10 to +55 °C

General characteristics

HAM bands: 11m (CB)
Frequency stability: ±5.0 ppm
Tuning steps: ?
Memories: ?

Receiver

RX-range: 26.565-27.99125 MHz (FM), 26.965-27.405 MHz (AM) (EU authorised bands)
Modulations: AM FM USB LSB
Sensitivity: < 1 µV (12 dB SINAD)
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ≥ 3 W (8 ohm)

Transmitter

TX-range: 26.565-27.99125 MHz (FM), 26.965-27.405 MHz (AM) (EU authorised bands)
Modulations: AM FM USB LSB
RF-output: AM/FM: 4 W, SSB: 12 W

Connections

Antenna: SO-239
Impedance: ?
Other: -

Electrical

Power requirements: 12.6 VDC ±10%
Current drain RX: ?
TX: < 6 A

Physical

Dimensions (w×h×d): 175 × 55 × 135 mm (6.89 × 2.17 × 5.31 in)
Weight: 1.20 kg (2.6 lbs) Including microphone
Form factor: Mobile
Manufactured: Between 20xx and 20xx

Other features

Usage: Citizen Band (27Mc)
Features + options: 4.25" multicolour VA LCD, 7 selectable colours
Dual-function NR filter (DSP and AI) on RX and TX
CTCSS/DCS private channels
VOX (9 levels), echo (6 levels), hi-cut filter (6 levels)
Dual watch, channel scan, emergency channels 9/19
Clarifier
Adjustable SWR protection
Microphone with UP/DOWN/LOCK-ASQ, 9-level automatic squelch
Accessories: -
RigReference ID: 6670
MPN: MIDLANDALAN-008001-PRO

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
