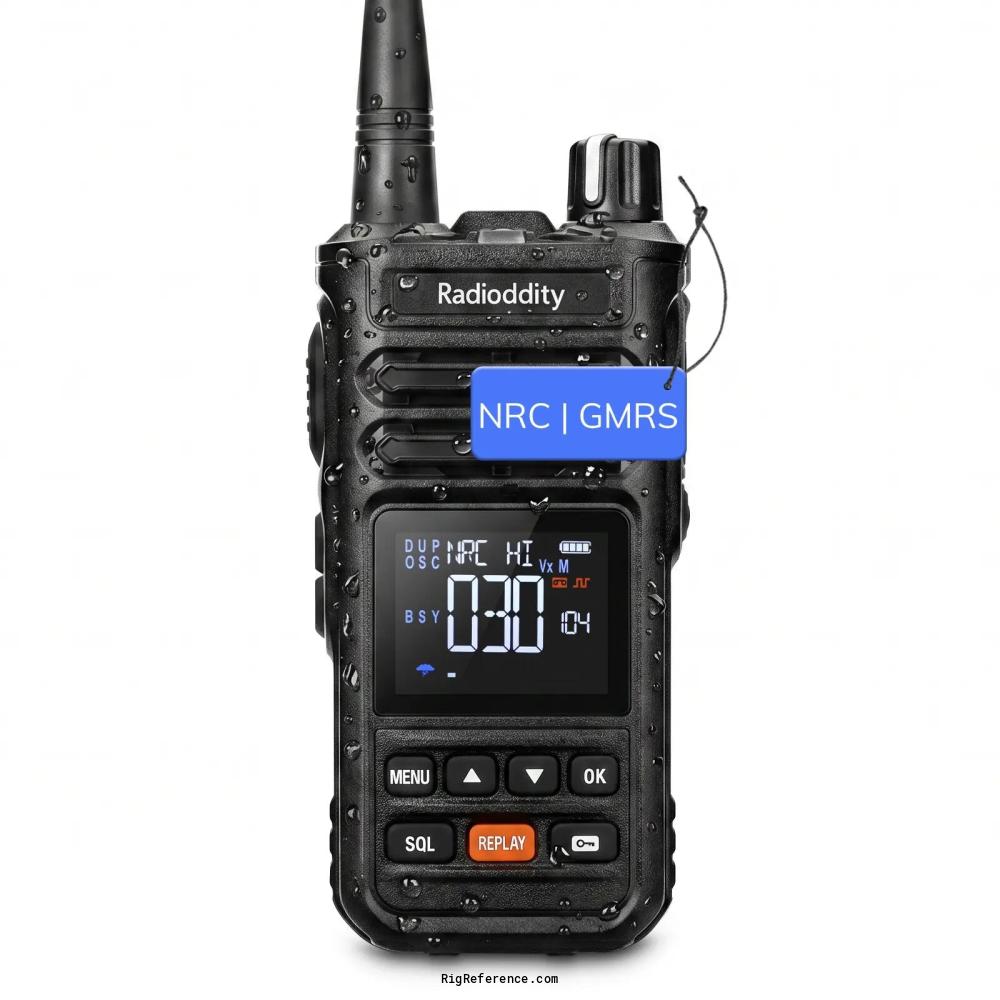

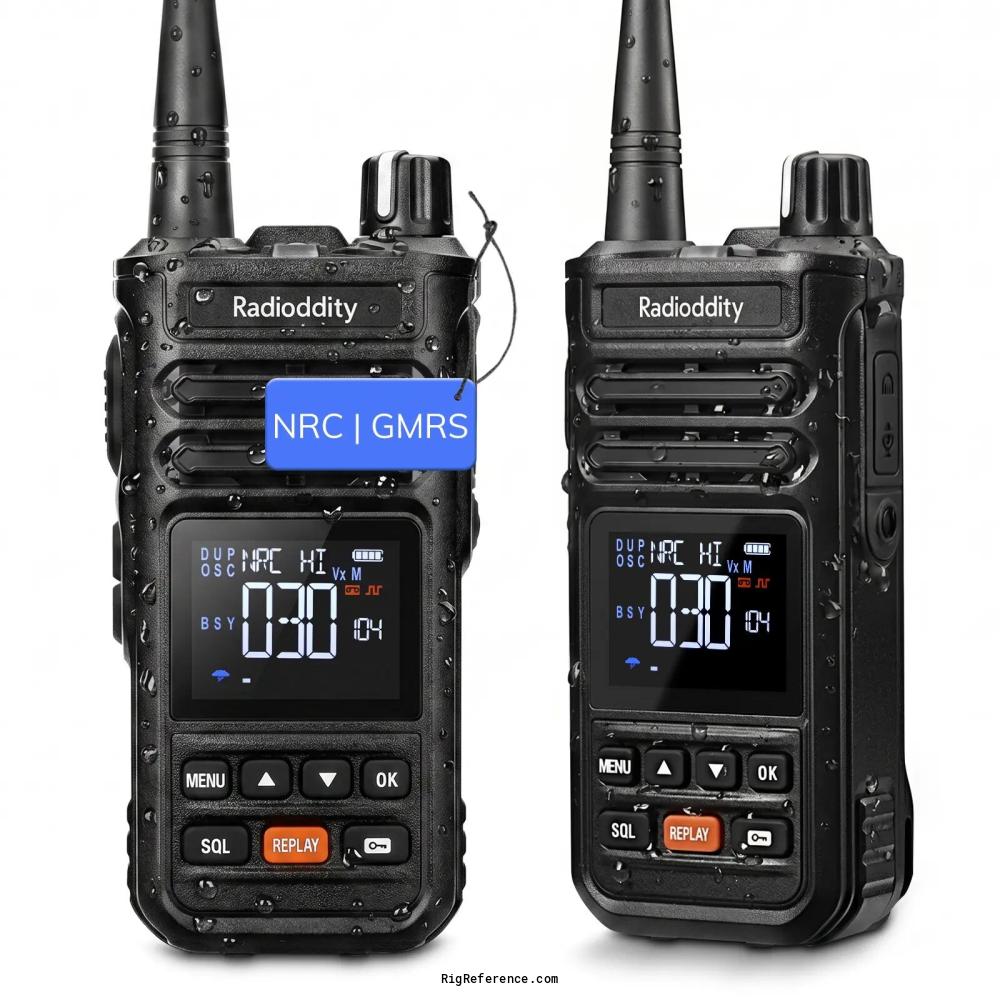

Radioddity X1 Pro

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

Channelised

Memories

?

Receiver

RX-range

161.650-163.275 MHz (NOAA), 462 / 467 MHz

Modulations

N-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W

Transmitter

TX-range

462 / 467 MHz (GMRS)

Modulations

N-FM

RF-output

High: 7 W, Mid: 5 W, Low: 0.5 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC (Li-ion battery pack, 3000 mAh)

Current drain RX

Less than 380 mA

TX

Less than 1.2 A

Physical

Dimensions (w×h×d)

60 × 115 × 36 mm (2.36 × 4.53 × 1.42 in)

Weight

300 gr (10.6 oz)

Form factor

Handheld

Manufactured

Between 2026 and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

22 GMRS simplex and 8 repeater channels
10 NOAA weather channels with alert
CTCSS/DCS
IP67 waterproof
USB-C charging
Noise reduction
Record and replay
LED flashlight
VOX

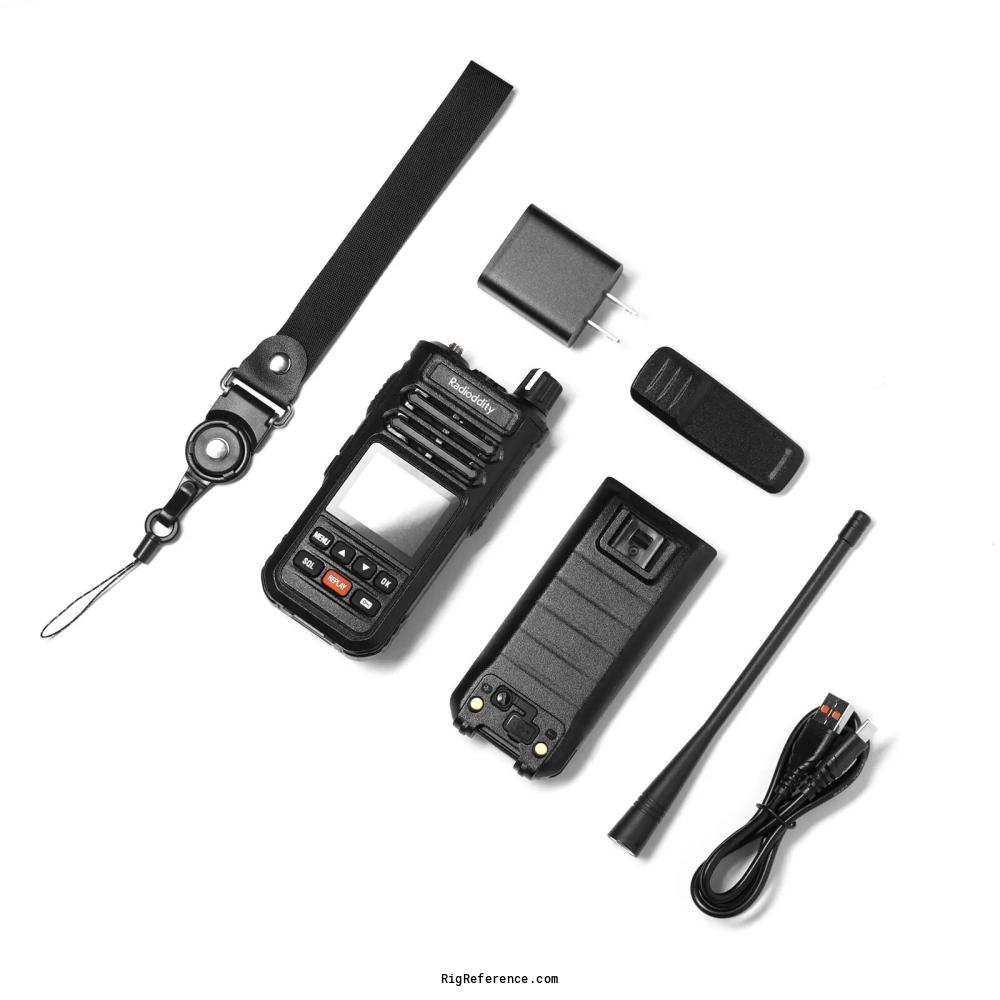

Accessories

-

RigReference ID

6689

MPN

RADIODDITY-X000001-PRO

Manuals, diagrams and brochures

No manuals yet for the Radioddity X1 Pro. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity X1 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Radioddity X1 Pro is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.
