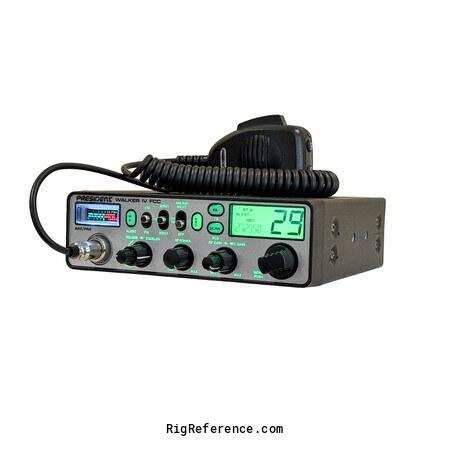

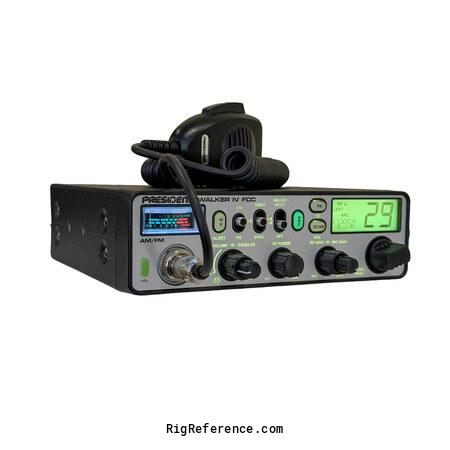

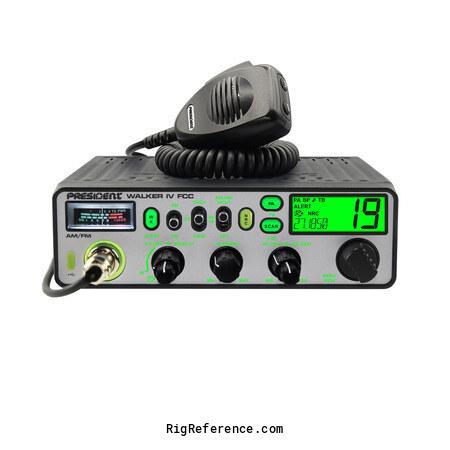

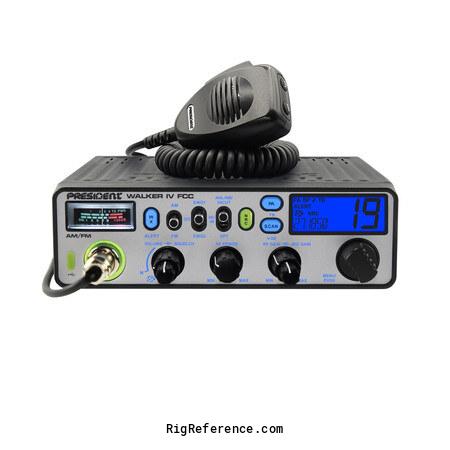

President Walker IV FCC

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

26.965-27.405 MHz, 162.400-162.550 MHz (NOAA weather)

Modulations

AM   FM

Sensitivity

AM: 0.5 µV (20 dB SINAD)
FM: 0.3 µV (20 dB SINAD)

Selectivity

60 dB (adjacent channel)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

60 dB

Audio output

3 W

Transmitter

TX-range

26.965-27.405 MHz

Modulations

AM   FM

RF-output

AM: 4 W, FM: 4 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC

Current drain RX

180-500 mA

TX

Less than 2 A

Physical

Dimensions (w×h×d)

185 × 56 × 172 mm (7.28 × 2.20 × 6.77 in)

Weight

1.20 kg (2.6 lbs)

Form factor

Mobile

Manufactured

Between 2026 and 20xx in China

Other features

Usage

Citizen Band (27Mc)

Features + options

40 channels plus five P-channels
7 NOAA weather channels with alert
PA
ANL/NB, ASC
RX/TX noise reduction
SWR meter
Talkback, roger beep, VOX
Two programmable emergency channels
Seven backlight colours and Glow mode
USB-C charging port

Accessories

-

RigReference ID

6691

MPN

PRESIDENT-WALKER-IV-FCC

Manuals, diagrams and brochures

No manuals yet for the President Walker IV FCC. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used President Walker IV FCC. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the President Walker IV FCC is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
