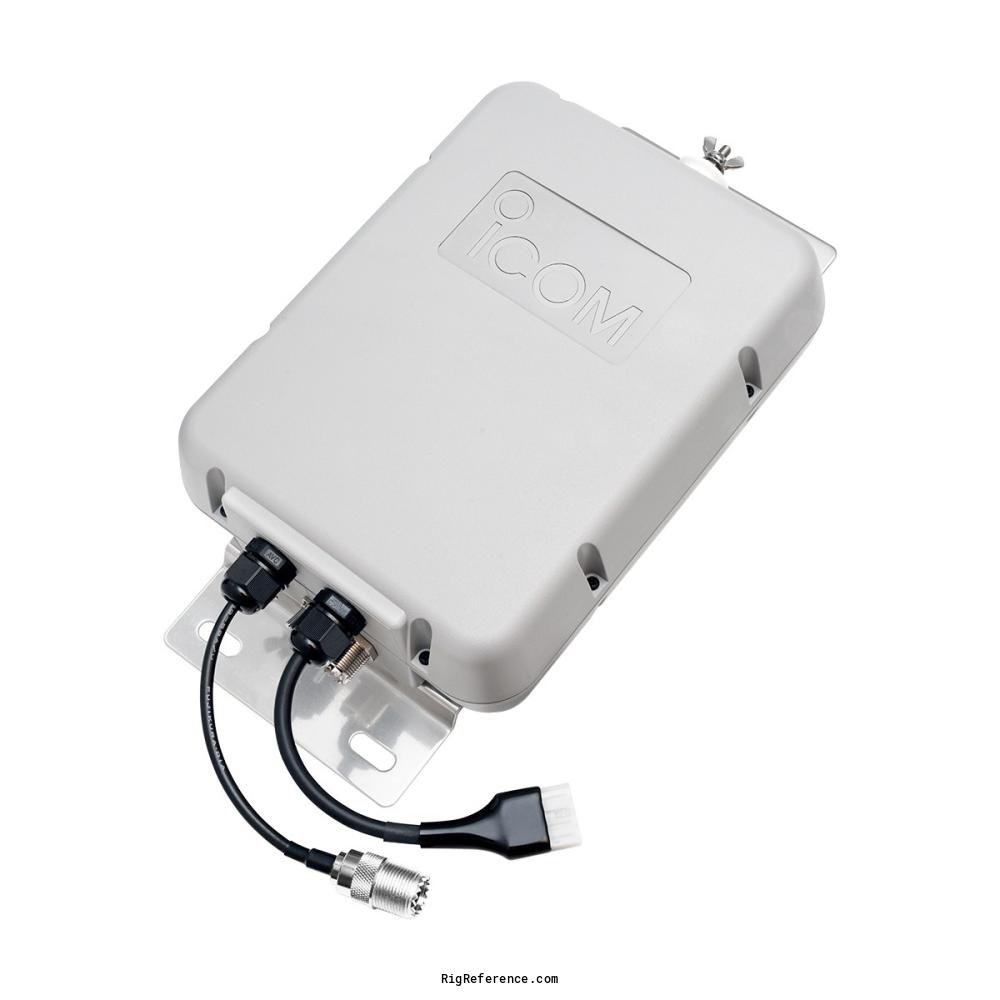

ICOM AH-6

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±15% (supplied by the transceiver)

Current drain RX

?

TX

0.6 A or less

Physical

Dimensions (w×h×d)

172 × 230 × 71 mm (6.77 × 9.06 × 2.80 in) Projections not included

Weight

1.25 kg (2.8 lbs)

Form factor

Mobile

Manufactured

Between 2026 and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

Automatic tuning for long wire and 50 ohm antennas, selectable by switch
SO-239 connector for 50 ohm antennas
200 tuning memories, re-tune in about 1 s
Tuning time 2-3 s average (max. 15 s)
Attenuator reduces RF to about 0.3 W during tuning
IP54 outdoor housing
Supplied with 10 m OPC-1465 control cable and mounting kit

Accessories

-

RigReference ID

6695

MPN

ICOM-AH-000006

Manuals, diagrams and brochures

No manuals yet for the ICOM AH-6. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM AH-6. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ICOM AH-6 in Good condition is around:

• GBP 351

Price History Chart

These estimates are based on the following prices:
