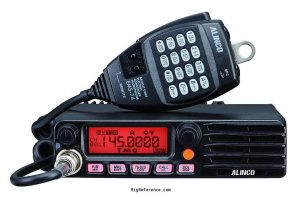

Alinco DR-B185EMKII
Amateur Mobile Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Channel spacing: 25 / 20 / 12.5 kHz
Intermodulation: ≥65 dB (wide), ≥60 dB (narrow)
Spurious rejection: ≥70 dB (wide), ≥60 dB (narrow)
Spurious emission: -36 dB
Operating temperature: -20 to +60 °C
CE amateur version. DR-B185TMKII is the FCC amateur version (TX 144-148 MHz); DR-B185MKII is the land mobile version.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ±1.5 ppm
- Tuning steps
- 2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Memories
- 200 channels in bank(s)
Receiver
- RX-range
- 136-174 MHz
108-136 MHz (AM airband), 76-108 MHz (WFM broadcast) - Modulations
- AM FM N-FM W-FM
- Sensitivity
- 12 dB SINAD: ≤0.25 µV (wide), ≤0.35 µV (narrow)
- Selectivity
- Adjacent channel: ≥70 dB (wide), ≥60 dB (narrow)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- >2 W (10% distortion)
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM N-FM
- RF-output
- 90 / 30 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 160 × 43 × 185 mm (6.30 × 1.69 × 7.28 in)
- Weight
- 1.29 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2026 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 90 W output with integrated cooling fan
Built-in GPS and APRS
Transmit noise reduction
Airband and FM broadcast receiver (20 memories)
Voice compander
2-tone, 5-tone, 50 CTCSS, 1024 DCS, tone burst, DTMF/ANI decode
Stun/kill/revive
Backlit keypad microphone EMS-74
MIL-STD-810G shock and vibration
PC programmable, 200 channels with alphanumeric names - Accessories
- -
- RigReference ID
- 6699
- MPN
- ALINCO-DR-B000185EMKII
Manuals, diagrams and brochures
-
No manuals yet for the Alinco DR-B185EMKII. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Alinco DR-B185EMKII
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-B185EMKII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DR-B185EMKII in Good condition is around:
- EUR 203
These estimates are based on the following prices:
