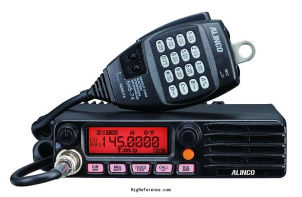

Alinco DR-B185TMKII
Amateur Mobile Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Channel spacing: 25 / 20 / 12.5 kHz
Intermodulation: ≥65 dB (wide), ≥60 dB (narrow)
Spurious rejection: ≥70 dB (wide), ≥60 dB (narrow)
Spurious emission: -36 dB
Operating temperature: -20 to +60 °C
FCC amateur version. DR-B185EMKII is the CE amateur version (TX 144-146 MHz); DR-B185MKII is the land mobile version.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ±1.5 ppm
- Tuning steps
- 2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
- Memories
- 200 channels in bank(s)
Receiver
- RX-range
- 136-174 MHz
108-136 MHz (AM airband), 76-108 MHz (WFM broadcast) - Modulations
- AM FM N-FM W-FM
- Sensitivity
- 12 dB SINAD: ≤0.25 µV (wide), ≤0.35 µV (narrow)
- Selectivity
- Adjacent channel: ≥70 dB (wide), ≥60 dB (narrow)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- >2 W (10% distortion)
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM N-FM
- RF-output
- 90 / 30 / 10 / 5 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 160 × 43 × 185 mm (6.30 × 1.69 × 7.28 in)
- Weight
- 1.29 kg (2.8 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2026 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 90 W output with integrated cooling fan
Built-in GPS and APRS
Transmit noise reduction
Airband and FM broadcast receiver (20 memories)
Voice compander
2-tone, 5-tone, 50 CTCSS, 1024 DCS, tone burst, DTMF/ANI decode
Stun/kill/revive
Backlit keypad microphone EMS-74
MIL-STD-810G shock and vibration
PC programmable, 200 channels with alphanumeric names - Accessories
- -
- RigReference ID
- 6700
- MPN
- ALINCO-DR-B000185TMKII
