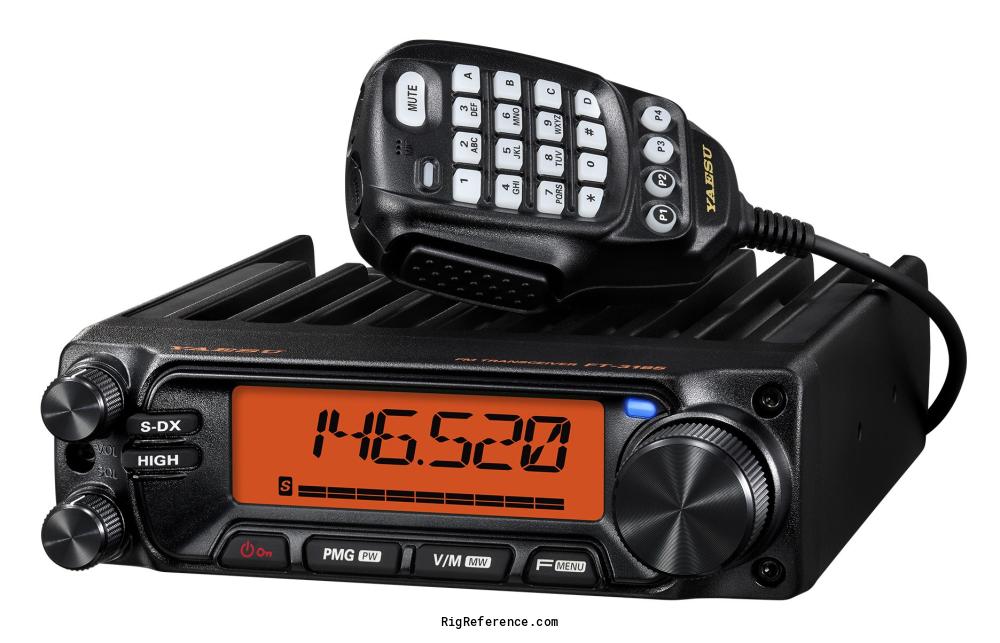

Yaesu FT-3185R

General characteristics

HAM bands

2m

Frequency stability

Better than ±5 ppm (-20 to +60 °C)

Tuning steps

5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz

Memories

?

Receiver

RX-range

136-174 MHz

Modulations

FM   N-FM

Sensitivity

12 dB SINAD:
136-140 MHz: better than 0.16 µV
140-150 MHz: better than 0.14 µV
150-174 MHz: better than 0.19 µV

Selectivity

30 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

21.7 MHz / 450 kHz

Image rejection

?

Audio output

3 W (8 ohm, 10% THD)

Transmitter

TX-range

144-148 MHz

Modulations

FM   N-FM

RF-output

85 / 50 / 20 / 5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC ±15%, negative ground

Current drain RX

0.7 A (0.5 A squelched)

TX

15 A (85 W), 11 A (50 W), 7 A (20 W), 3 A (5 W)

Physical

Dimensions (w×h×d)

160 × 50 × 185 mm (6.30 × 1.97 × 7.28 in) Without knobs

Weight

1.90 kg (4.2 lbs)

Form factor

Mobile

Manufactured

Between 20xx and 20xx in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

85 W output, 4 power levels
Super DX receive function
Optional SPU-1 audio signal processing unit (ASP)
Primary Memory Group activity monitor (PMG, 5 channels)
Custom Function List (CFL)
Advanced Track Tuning front end
200 memory channels plus band-edge, home and PMG memories
CTCSS/DCS encoder/decoder
Keyboard frequency entry from the microphone
Weather alert (USA version)

Accessories

-

RigReference ID

6702

MPN

YAESU-FT-003185R

Manuals, diagrams and brochures

No manuals yet for the Yaesu FT-3185R. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-3185R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-3185R in Good condition is around:

• USD 195
