Radioddity GS-10B Pro

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

999 channels in bank(s)

Receiver

RX-range

LW 153-279 kHz, MW 520-1710 kHz, SW 2.3-30 MHz
FM broadcast 64-108 MHz, AM airband 108-137 MHz
136-174 / 400-470 MHz
NOAA weather (North America)

Modulations

AM   FM   W-FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

FM

RF-output

8 / 5 / 2 W

Connections

Antenna

SMA

Impedance

?

Other

-

Electrical

Power requirements

7.4 V Li-ion battery, 2500 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

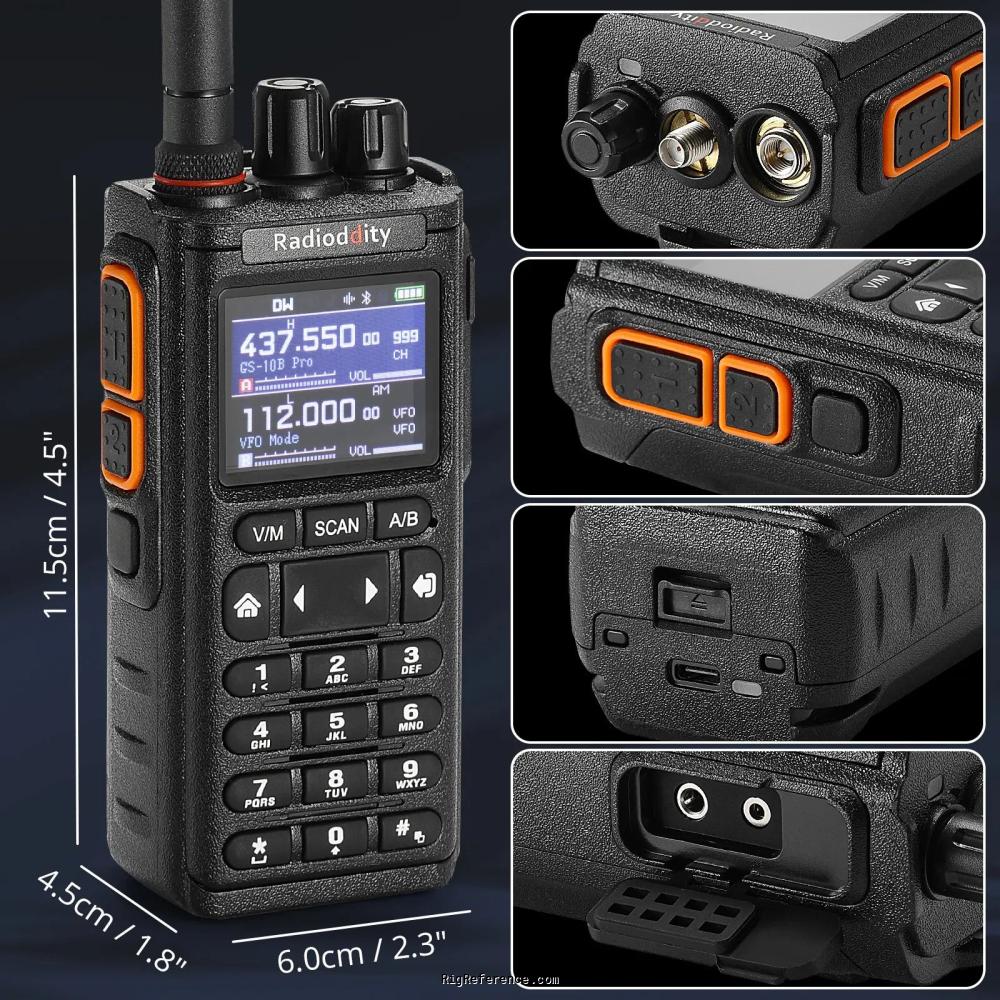

60 × 115 × 45 mm (2.36 × 4.53 × 1.77 in)

Weight

?

Form factor

Handheld

Manufactured

Between 2026 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

HF receive with SSB/CW

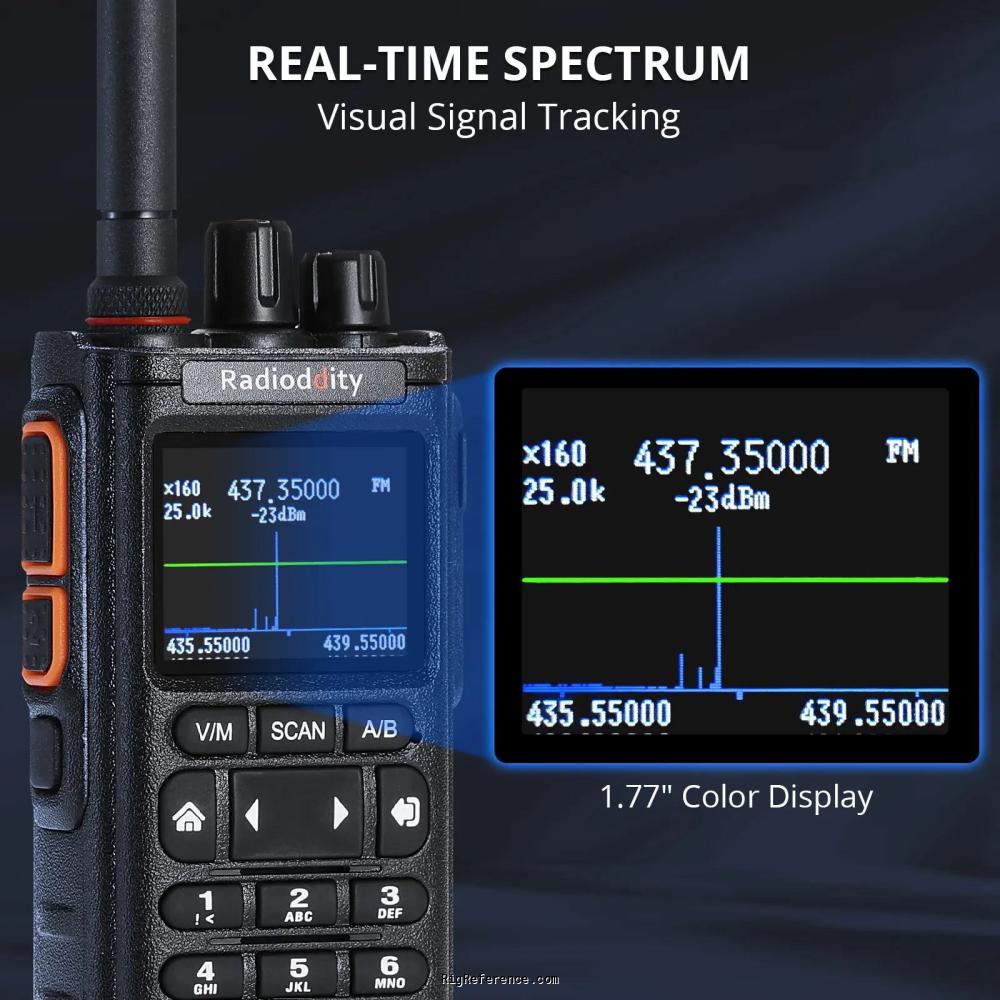

Real-time spectrum display
1.77" colour display

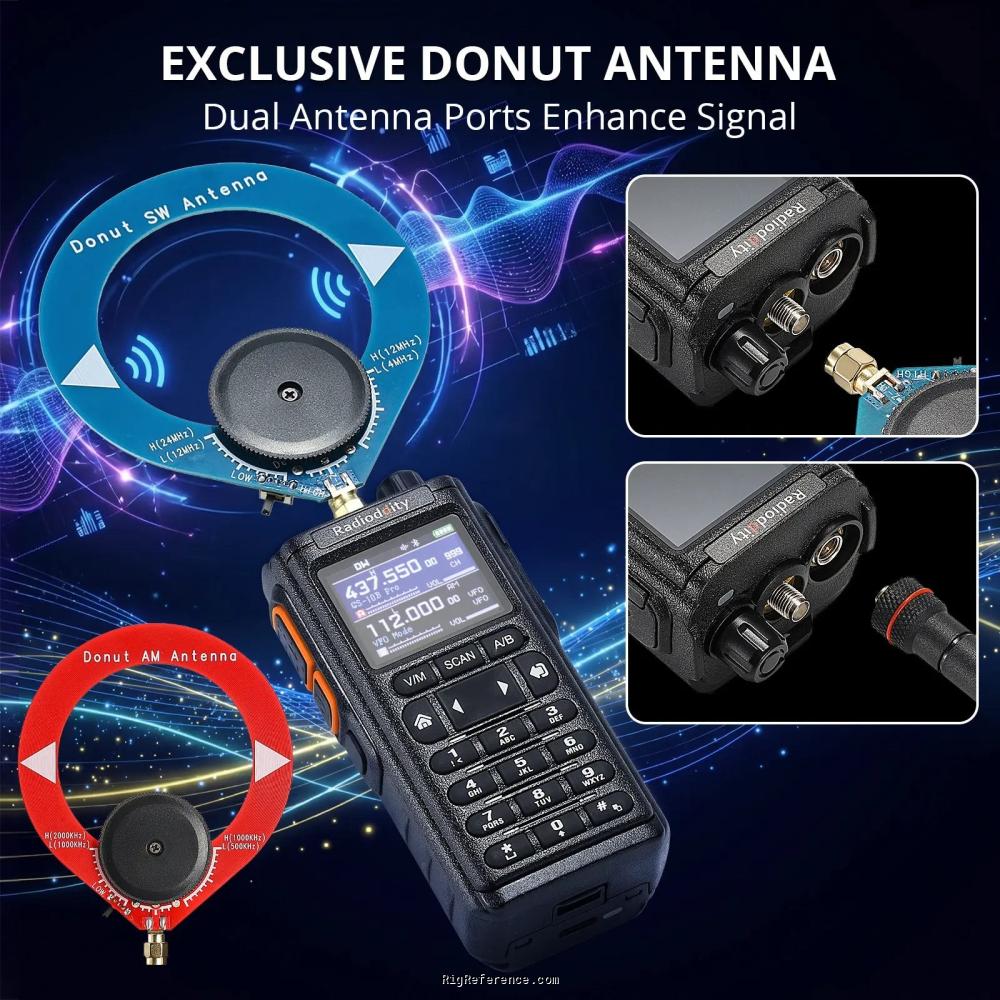

Dual antenna ports (SMA-M / SMA-F) with SW and MW loop antennas

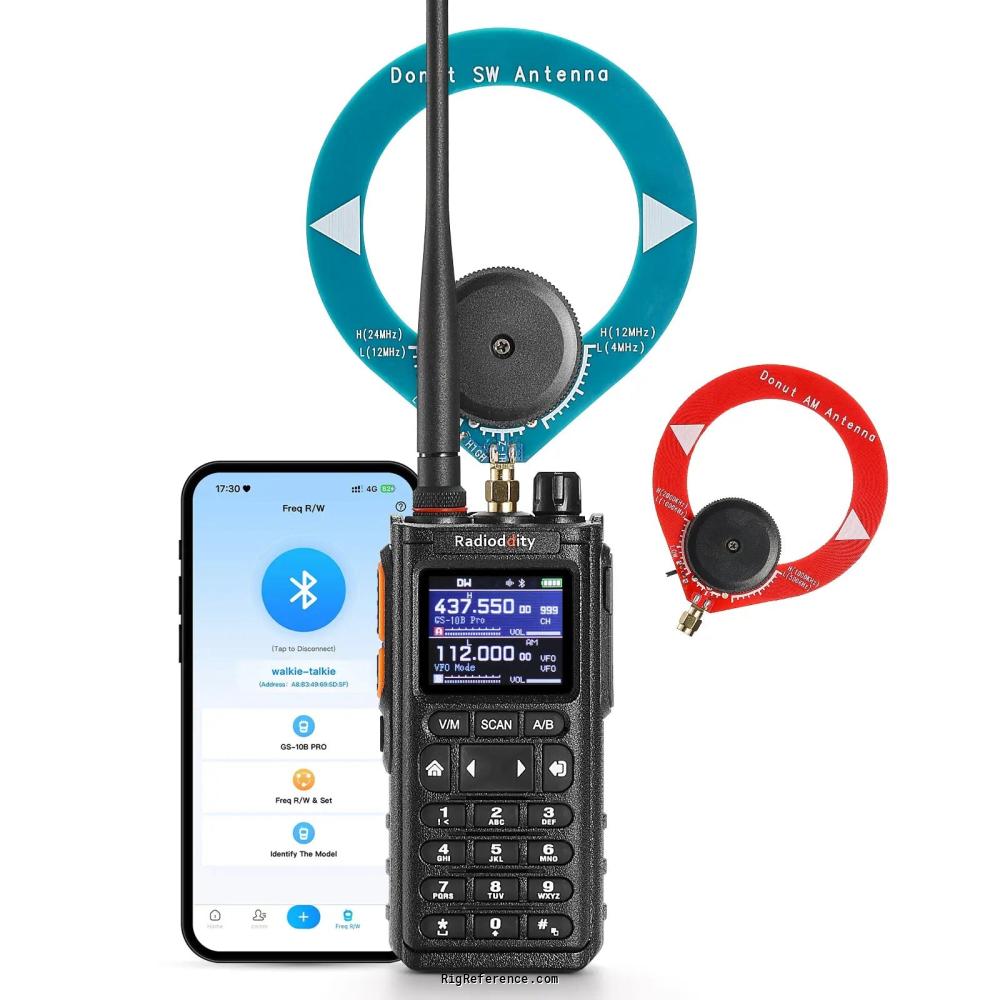

Bluetooth app programming
USB-C charging
TX noise reduction
Dual PTT
999 memory channels

Accessories

-

RigReference ID

6703

MPN

RADIODDITY-GS-000010B-PRO

Manuals, diagrams and brochures

No manuals yet for the Radioddity GS-10B Pro. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity GS-10B Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radioddity GS-10B Pro in Good condition is around:

• USD 53
