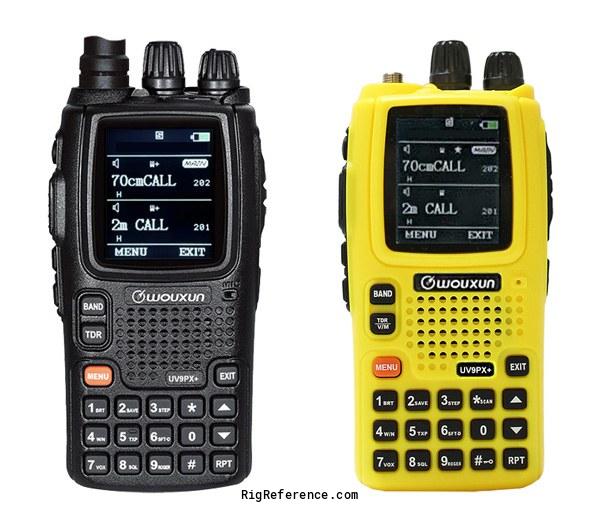

Wouxun KG-UV9PX

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 kHz

Memories

999 channels in bank(s)

Receiver

RX-range

76-108 MHz (FM broadcast), 108-136 MHz (AM)
136-180 / 219-250 / 350-400 / 400-512 / 700-986 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

0.25 µV (13 dB SINAD, VHF/UHF)

Selectivity

Adjacent channel: 70 dB (wide), 60 dB (narrow)

Filters

?

Receiver system

Double conversion superheterodyne, true dual receive

IF-frequencies

?

Image rejection

?

Audio output

500 mW

Transmitter

TX-range

136-174 / 400-512 MHz

Modulations

FM   N-FM

RF-output

10 / 5 / 2 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

True dual receive, full duplex
Cross-band repeater
7-band receive incl. AM airband and FM broadcast
999 memory channels, 10 scan groups
50 CTCSS / 105 DCS
Colour screen with 4 display modes
VOX, flashlight, voice announce

Accessories

-

RigReference ID

6704

MPN

WOUXUN-KG-UV000009PX

Manuals, diagrams and brochures

No manuals yet for the Wouxun KG-UV9PX. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-UV9PX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Wouxun KG-UV9PX in Good condition is around:

• USD 165
