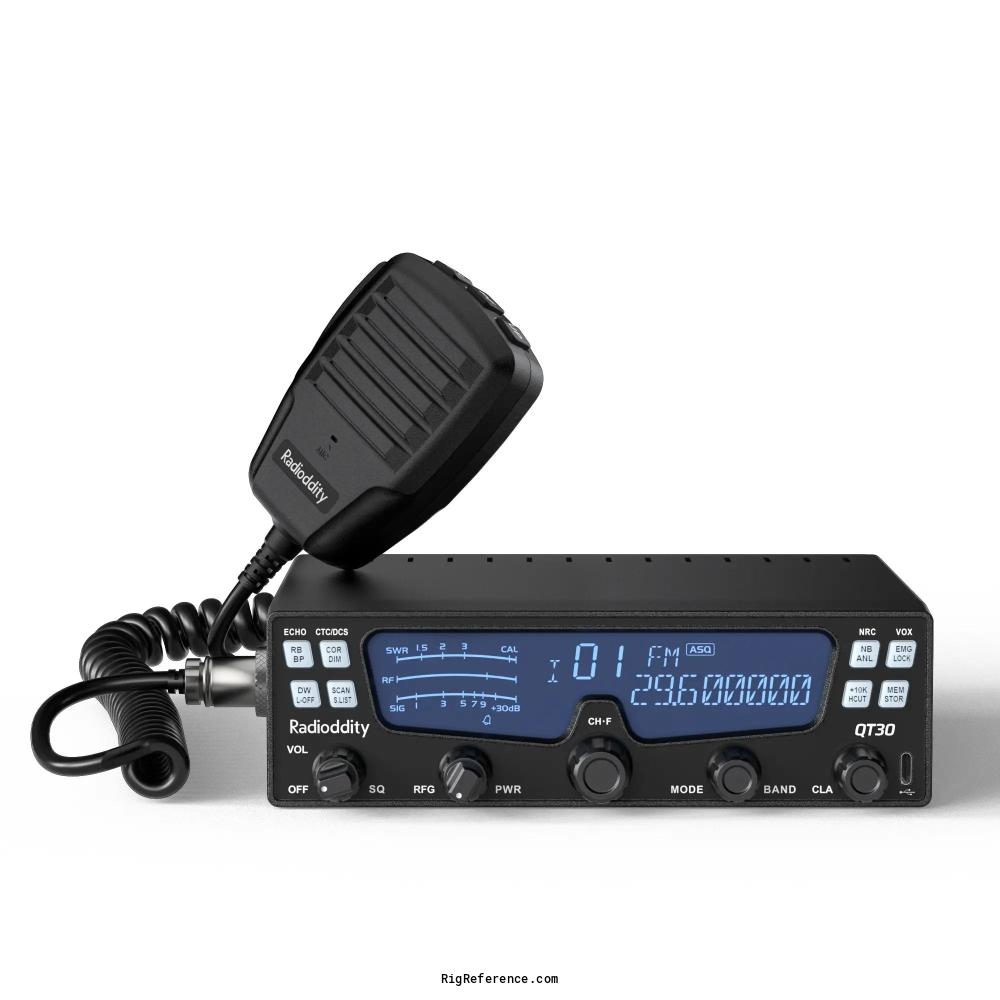

Radioddity QT30

General characteristics

HAM bands

10m

Frequency stability

?

Tuning steps

10 Hz / 100 Hz / 1 kHz / 5 kHz / 10 kHz / 100 kHz / 1 MHz

Memories

?

Receiver

RX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   SSB

RF-output

FM: 30 W, SSB: 30 W PEP, AM: 10 W (35 W PEP)

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC (12 V nominal)

Current drain RX

?

TX

?

Physical

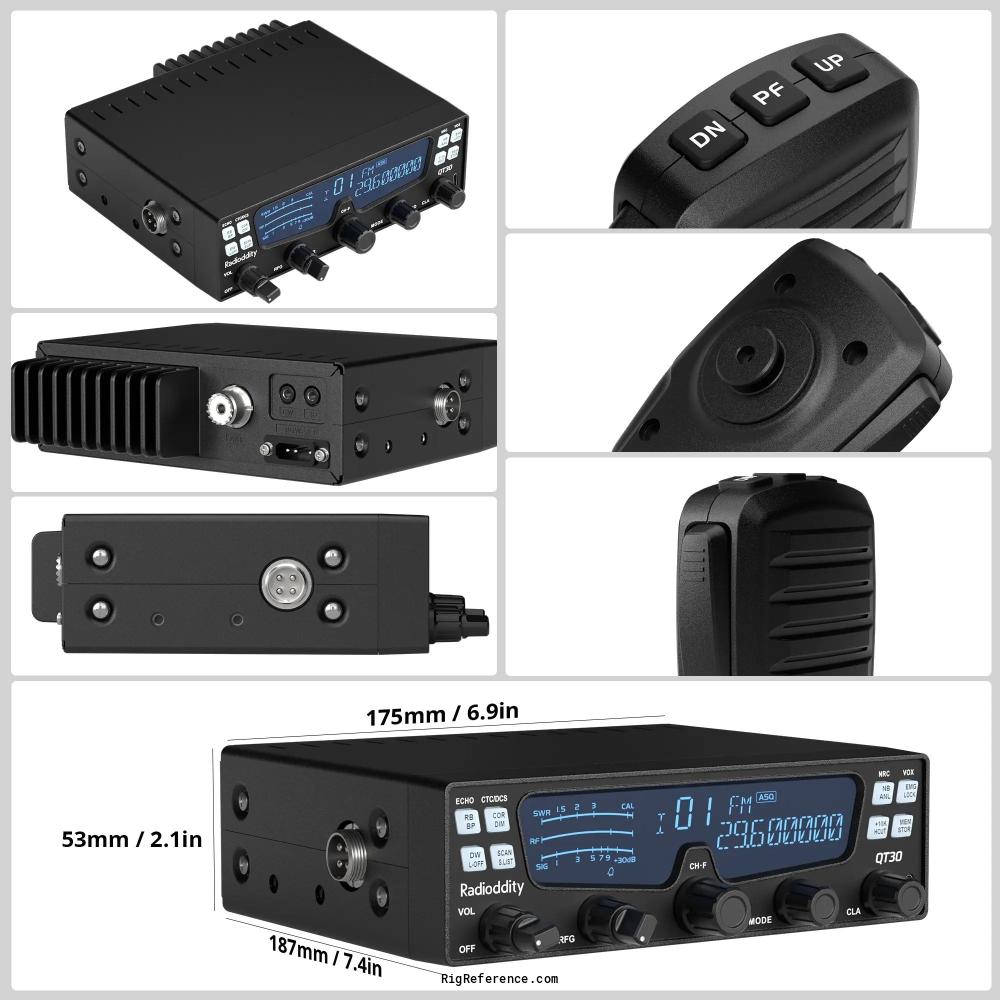

Dimensions (w×h×d)

187 × 53 × 175 mm (7.36 × 2.09 × 6.89 in)

Weight

1,000 gr (2.2 lbs)

Form factor

Mobile

Manufactured

Between 2026 and 20xx

Other features

Usage

Amateur / Ham radio operators

Features + options

AM/FM/USB/LSB/CW and PA
5-level TX and RX noise reduction
ASQ automatic squelch, HI-CUT
Dual watch
SIG/SWR/PWR meters
Clarifier ±500 Hz / ±5 kHz
45-level microphone gain
38 CTCSS / 104 DCS
7-colour backlit LCD with 9-level dimmer
SWR and DC voltage protection

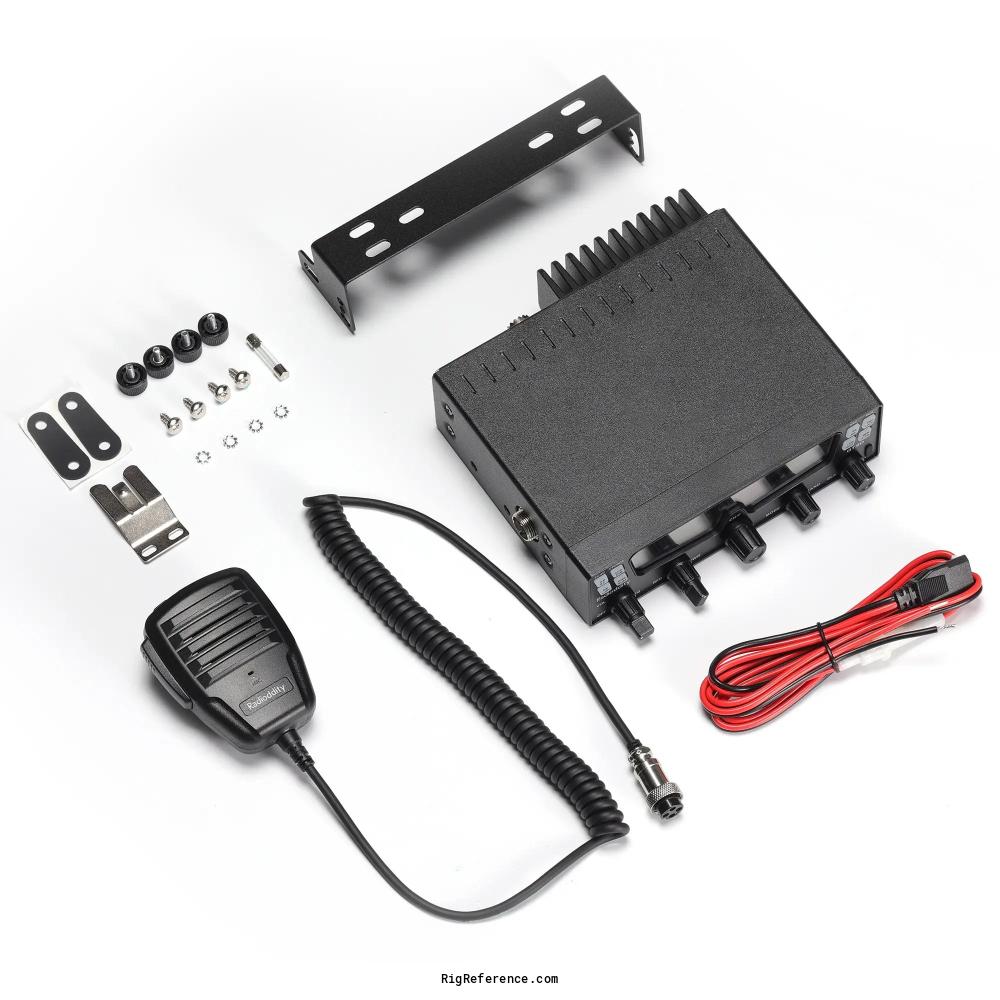

Accessories

-

RigReference ID

6705

MPN

RADIODDITY-QT000030

Manuals, diagrams and brochures

No manuals yet for the Radioddity QT30. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radioddity QT30. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radioddity QT30 in Good condition is around:

• USD 135

Price History Chart

These estimates are based on the following prices:
