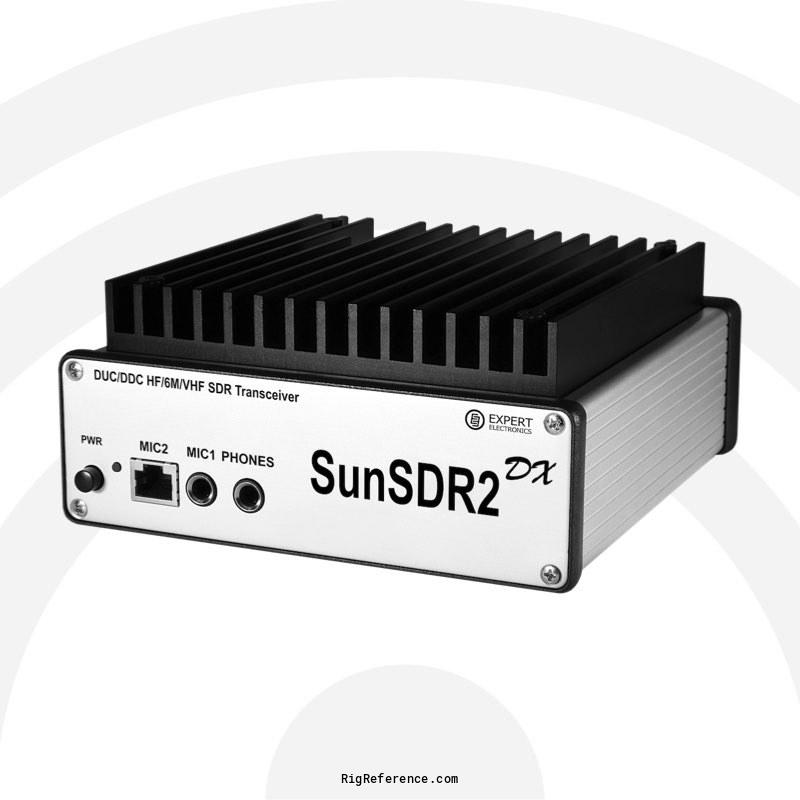

Expert Electronics SunSDR2 DX

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  10m

Frequency stability

TCXO 20 MHz ±0.5 ppm, external 10 MHz input

Tuning steps

?

Memories

?

Receiver

RX-range

0.1-65 / 95-155 MHz

Modulations

Multiple (Software defined)

Sensitivity

0.2 µV

Selectivity

?

Filters

?

Receiver system

Direct sampling SDR (DDC/DUC), 16-bit LTC2209 ADC at 160 MHz, 14-bit DAC at 640 MHz

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

All amateur bands 160-6 m and 2 m

Modulations

Multiple (Software defined)

RF-output

HF: 100 W, 6 m: up to 80 W, 2 m: 7 W (up to 8 W)

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

13.8 V DC recommended (RX 8-14.8 V, TX 10-14.8 V)

Current drain RX

1.2 A

TX

24 A

Physical

Dimensions (w×h×d)

165 × 105 × 185 mm (6.50 × 4.13 × 7.28 in) 18.5 x 16.5 x 10.5 cm (L x W x H), including fan

Weight

2.60 kg (5.7 lbs) Including fan

Form factor

Mobile

Manufactured

Between 20xx and 20xx in Russia

Other features

Usage

Amateur / Ham radio operators

Features + options

2 independent software receivers plus 2 sub-receivers
80 MHz bandscope
RX sample rates 39/78/156/312 kHz at 24 bit
Blocking dynamic range 130 dB (HF), 129 dB (VHF)
IMD3 dynamic range 110 dB, RMDR 119 dB
ATT/preamp -20/-10/0/+10 dB, VHF LNA 27 dB
9 HF band-pass filters
2 HF and 1 VHF antenna port, ADC IN/DAC OUT (SMA)
LAN 100 Mbit PC interface, ExpertSDR2 software
External ATU and fan control connectors
Built-in 24-bit audio codec (114 dB)

Accessories

-

RigReference ID

6706

MPN

EXPERT-ELECTRONICS-SUNSDR000002-DX

Manuals, diagrams and brochures

No manuals yet for the Expert Electronics SunSDR2 DX. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Expert Electronics SunSDR2 DX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Expert Electronics SunSDR2 DX in Good condition is around:

• EUR 2,098
