Retevis A3

General characteristics

HAM bands

6m  2m  70cm  10m

Frequency stability

?

Tuning steps

?

Memories

999 channels in bank(s)

Receiver

RX-range

0.5-1160 MHz

Modulations

AM   FM   N-FM   CW   USB   LSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W (16 ohm)

Transmitter

TX-range

18-76 / 136-580 MHz

Modulations

FM   N-FM

RF-output

10 / 5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V Li-ion, 2500 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Quad-band transmit (10 m, 6 m, 2 m, 70 cm)
Receive 0.5-1160 MHz, AM / SSB / FM / CW
Dual channel with independent volume

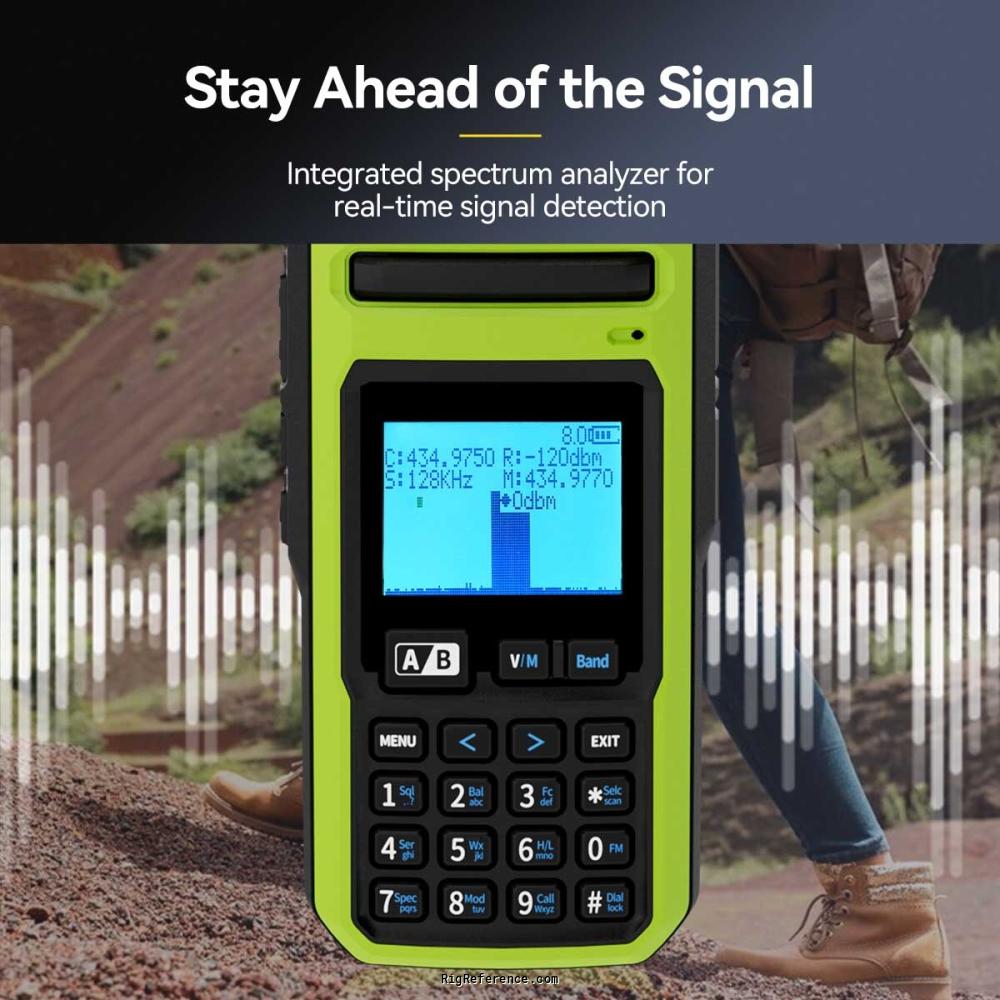

Built-in spectrum display
1.44 inch LCD
NOAA (10 channels), FM radio (32 presets)
Wireless copy, quick band pairing
USB-C charging

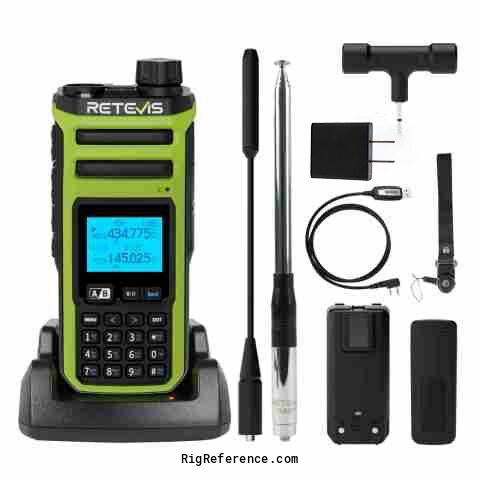

Accessories

-

RigReference ID

6731

MPN

RETEVIS-A000003

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Retevis A3. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis A3. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis A3 in Good condition is around:

• USD 117

Price History Chart

These estimates are based on the following prices:
