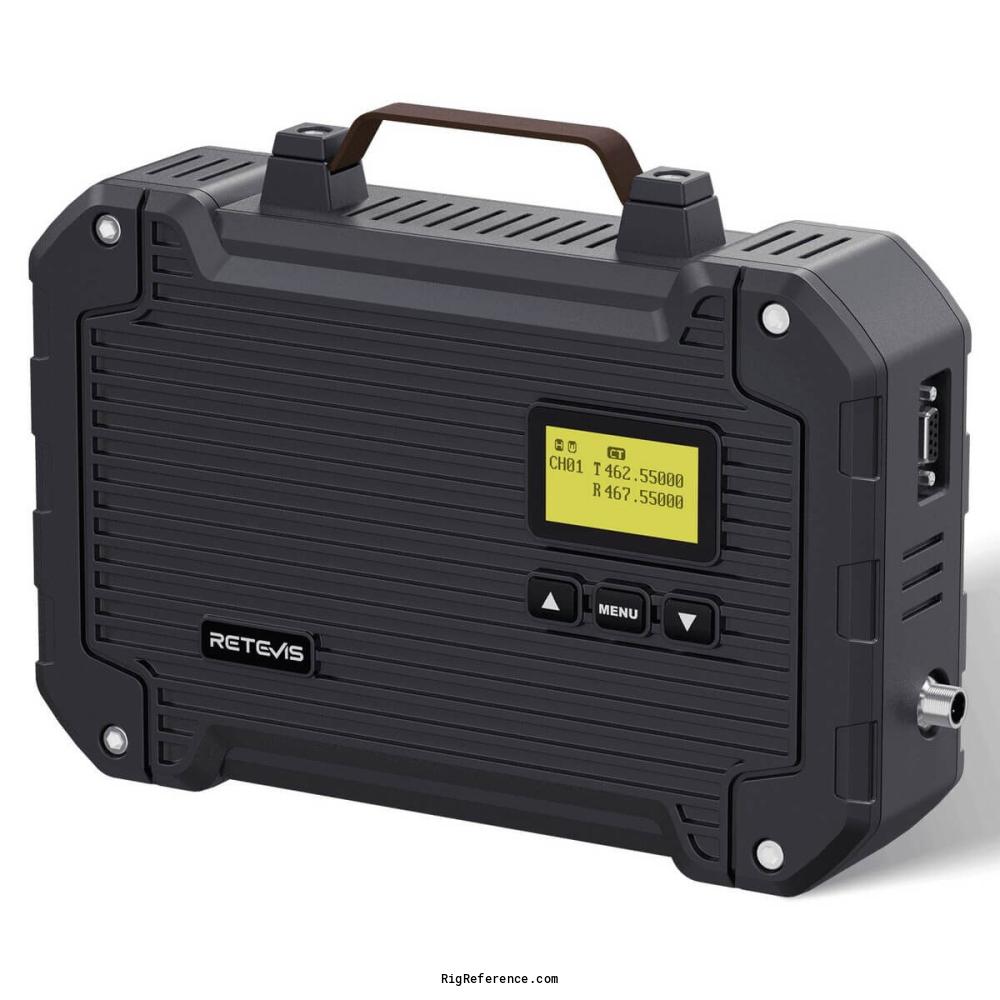

Retevis RT97L GMRS

General characteristics

HAM bands

?

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

16 channels in bank(s)

Receiver

RX-range

467.550-467.725 MHz

Modulations

FM   N-FM

Sensitivity

?

Selectivity

Adjacent channel: 65 dB or better

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

462.550-462.725 MHz

Modulations

FM   N-FM

RF-output

22-25 W (15-22 W after duplexer)

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

15 V DC

Current drain RX

?

TX

6 A or less

Physical

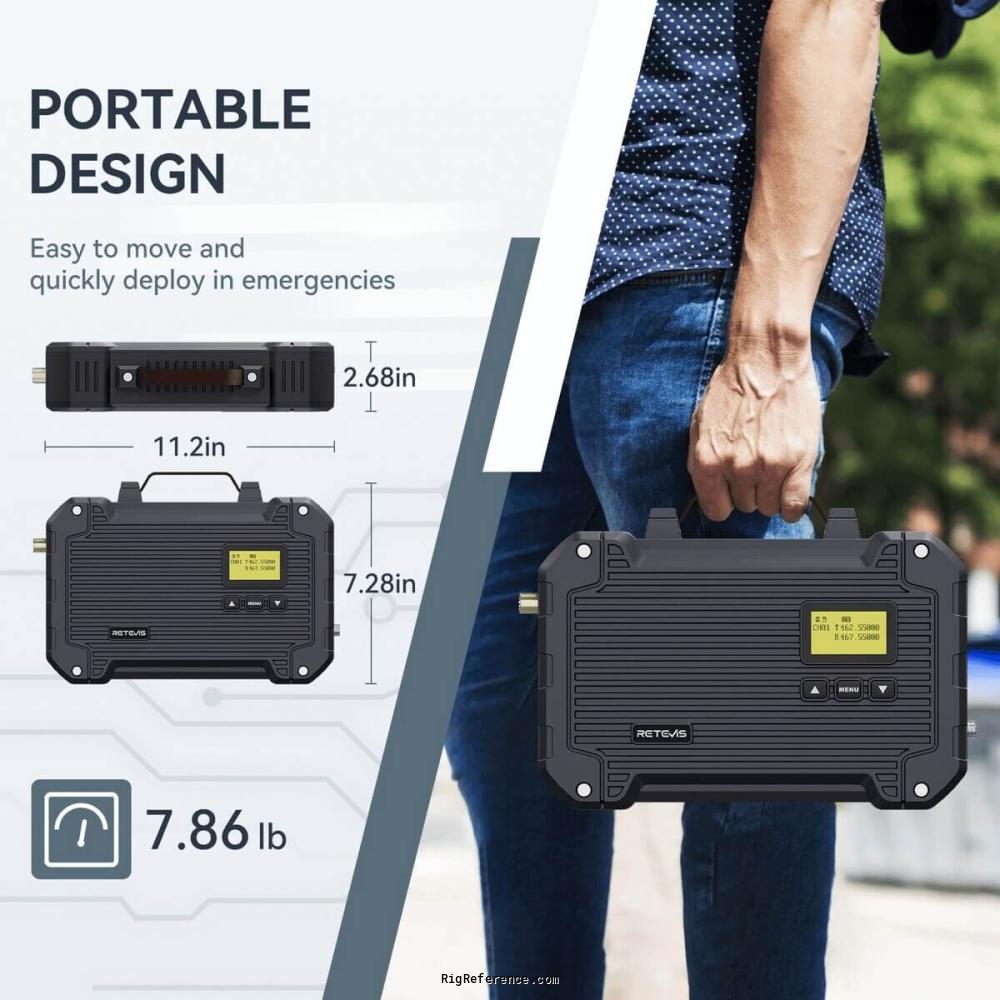

Dimensions (w×h×d)

285 × 68 × 185 mm (11.22 × 2.68 × 7.28 in)

Weight

3.56 kg (7.9 lbs)

Form factor

Base Station

Manufactured

Between 20xx and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

Portable full-duplex GMRS repeater
IP67
50 CTCSS / 210 DCS

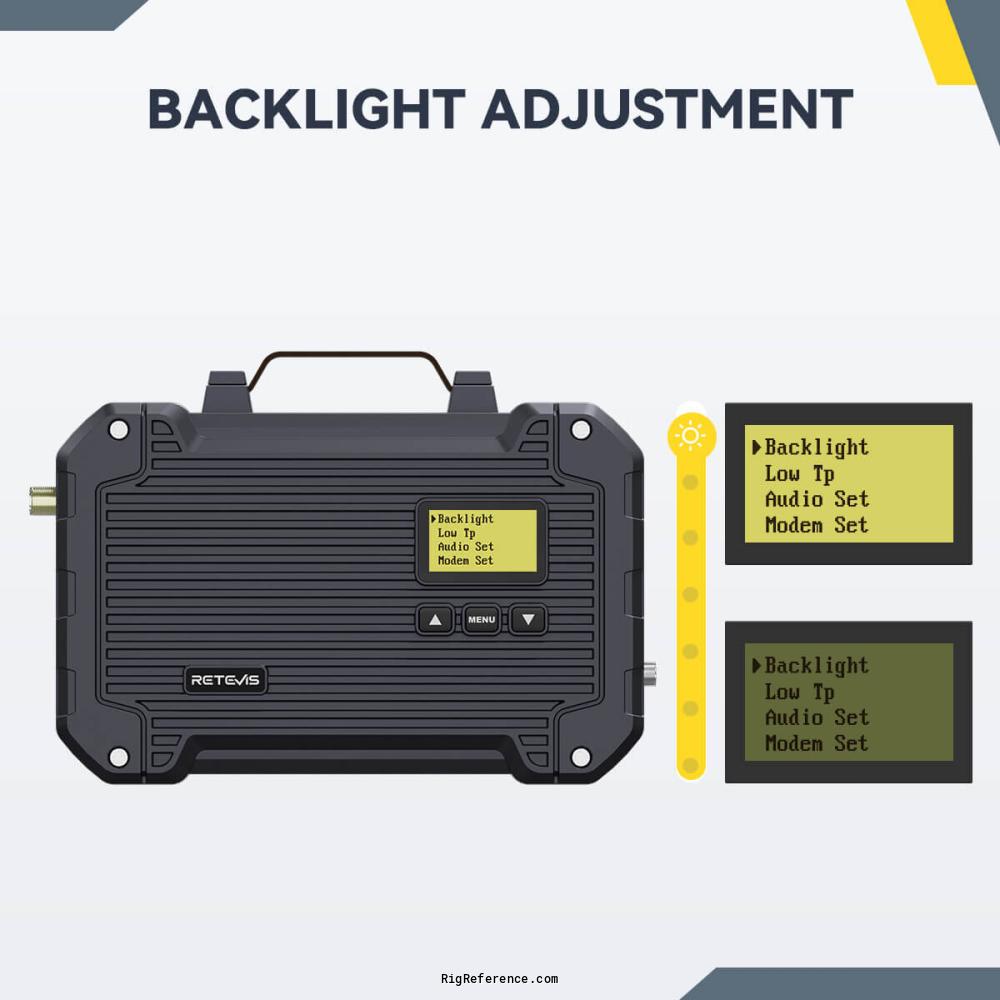

LCD
Channel lock, scan, repeater delay
High / low power
Low-temperature mode

Accessories

-

RigReference ID

6739

MPN

RETEVIS-RT000097L-GMRS
