Zastone CB58

General characteristics

HAM bands

11m (CB)

Frequency stability

±5.0 ppm

Tuning steps

?

Memories

?

Receiver

RX-range

26.965-27.405 MHz

Modulations

AM   FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

26.965-27.405 MHz

Modulations

AM   FM

RF-output

4 W (AM / FM)

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

12 V

Current drain RX

0.3 A squelched, 0.8 A max. volume

TX

2 A max.

Physical

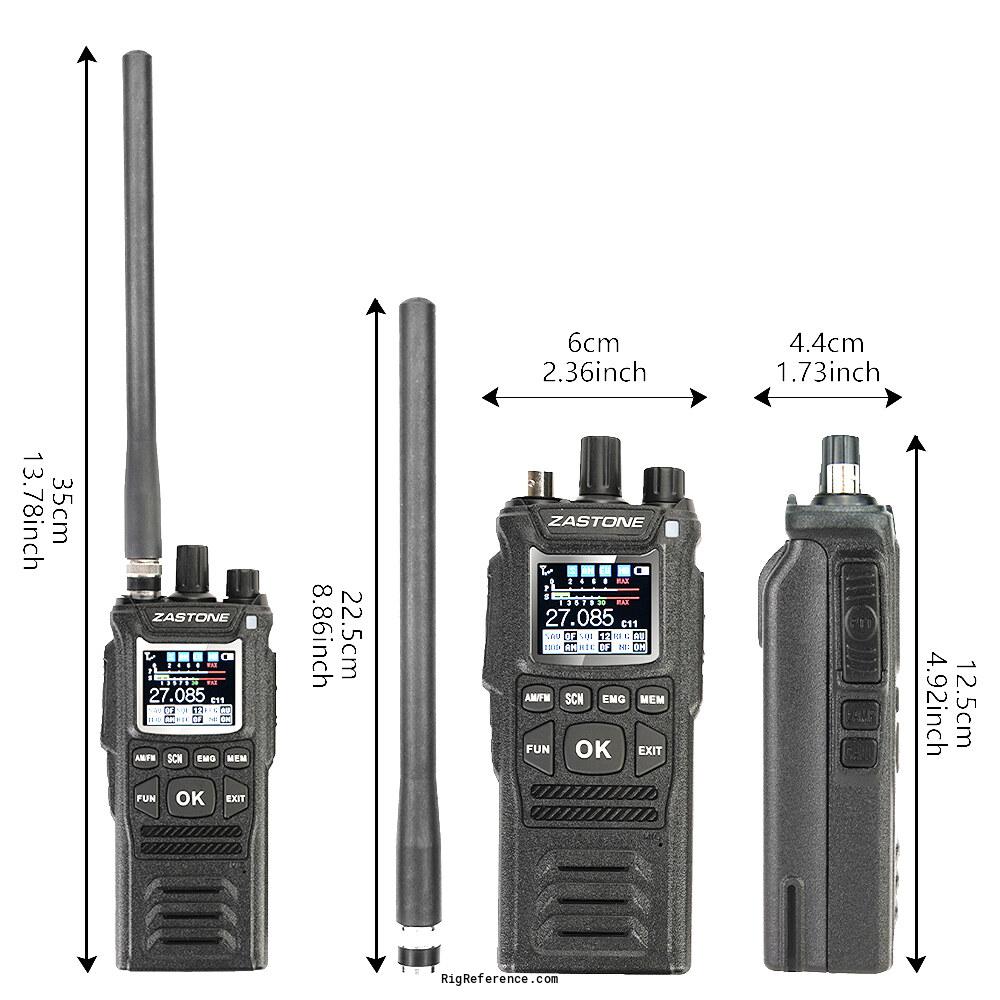

Dimensions (w×h×d)

135 × 44 × 60 mm (5.31 × 1.73 × 2.36 in)

Weight

500 gr (1.1 lbs) Approx.

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Citizen Band (27Mc)

Features + options

27 MHz CB handheld
AM / FM
PLL synthesiser
Colour display
Emergency channel key
SO-239 antenna connector

Accessories

-

RigReference ID

6793

MPN

ZASTONE-CB000058

Manuals, diagrams and brochures

No manuals yet for the Zastone CB58. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone CB58. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Zastone CB58 is around:

• USD 210 ~ USD 390

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
