Modulation: 6K0F3E (wide) / 1K0F3E (narrow) per spec sheet
Operating temperature: -20 to +50 °C
CN site lists 144-148 / 430-440 MHz and 99 channels for its version
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 250 channels in bank(s)
Receiver
- RX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 136-174 / 400-480 MHz
- Modulations
- FM N-FM
- RF-output
- 5 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.4 V DC, 2600 mAh
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 63 × 110 × 35 mm (2.48 × 4.33 × 1.38 in)
- Weight
- 500 gr (1.1 lbs)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx in China

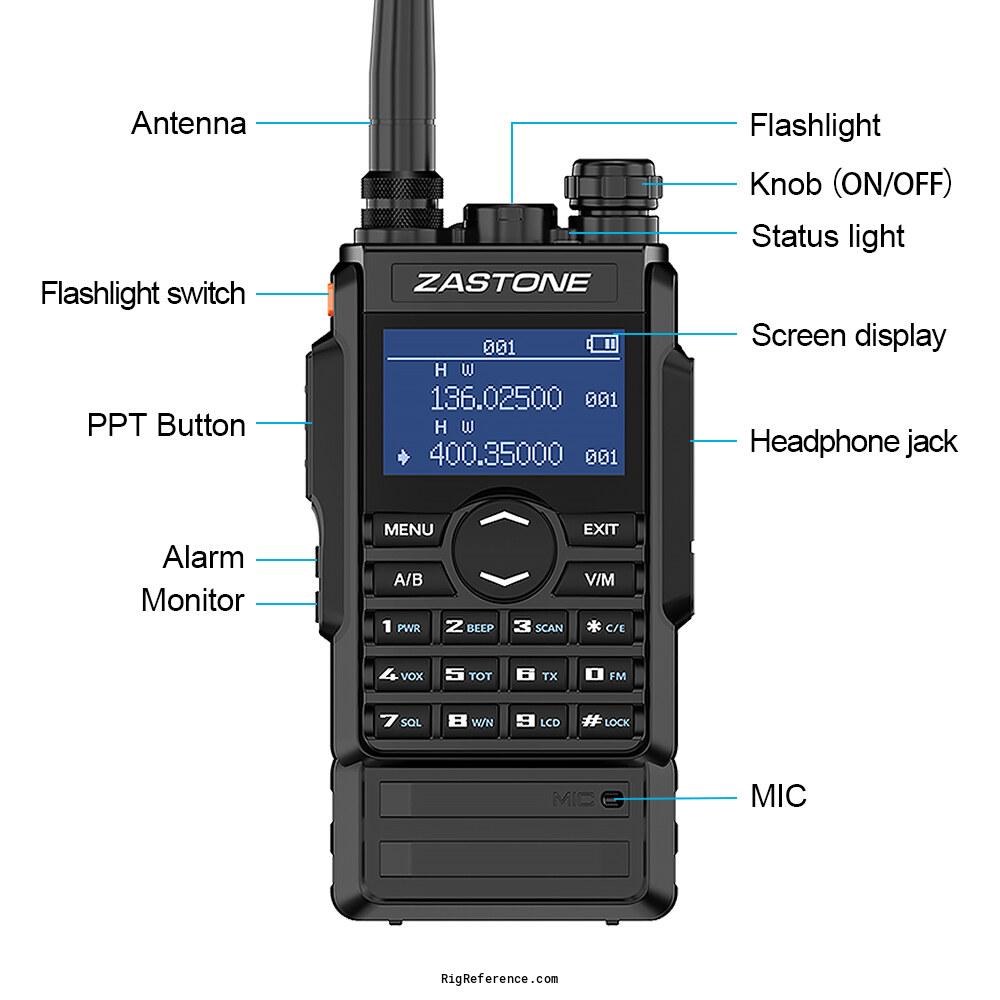

Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Dual-band handheld
250 channels
Flashlight
Alarm

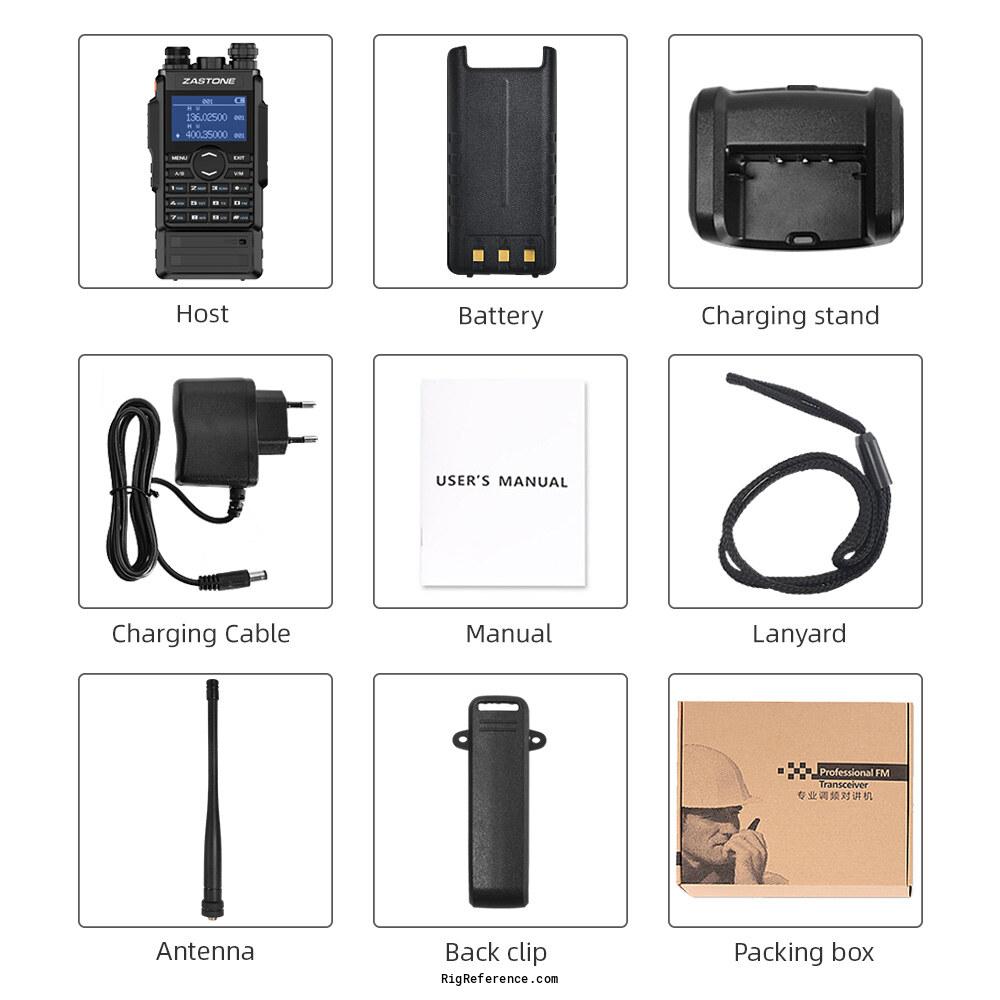

K-type headset jack - Accessories
- -
- RigReference ID
- 6805
- MPN
- ZASTONE-M000007
