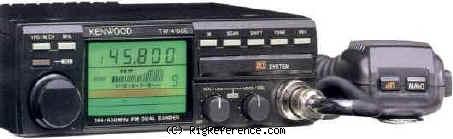

Kenwood TW-4100E

Mobile VHF/UHF Transceiver

Specs Manuals (1) Reviews (0) Prices (0) Compare

The Kenwood TW-4100E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The transceiver offers tuning steps of 5 / 10 / 12.5 kHz. RF output is selectable between High (45W/35W) and Low (5W/5W). It features 1 memory bank with 10 channels. Power requirements are 11-16V DC. The current drain is 0.7A in receive mode and a maximum of 9.5A in transmit mode. Dimensions are 50 × 150 × 200 mm and the weight is 1.6 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 5 / 10 / 12.5 kHz
Memories: 10 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 45/35 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 11-16V DC
Current drain RX: 0.7 A
TX: Max 9.5 A

Physical

Dimensions (w×h×d): 150 × 50 × 200 mm (5.91 × 1.97 × 7.87 in)
Weight: 1.60 kg (3.5 lbs)
Form factor: Mobile
Manufactured: Between 1987 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3521
MPN: KENWOOD-TW-004100E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Kenwood TW-4100 Service Manual PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TW-4100E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Kenwood TW-4100E is around:

USD 224 ~ USD 415

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
