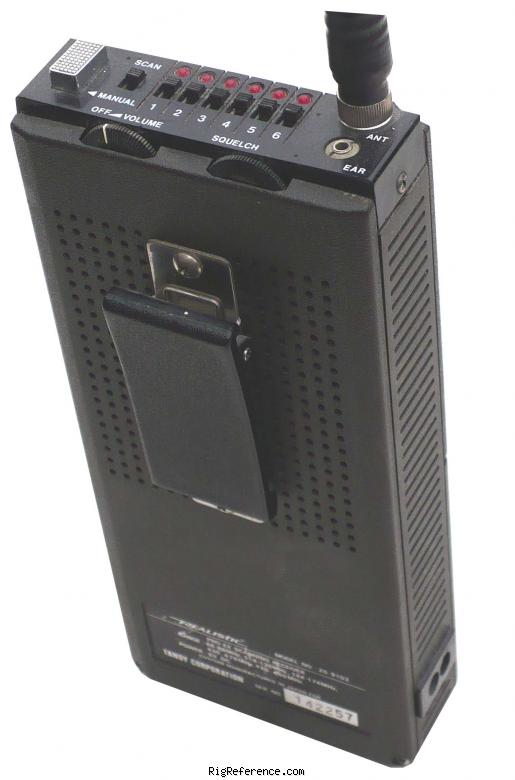

RadioShack / Realistic Pro-22
Handheld VHF/UHF Scanner / receiver
Add a review (+10 rep) Own this rig? Add it to your shack
The RadioShack / Realistic Pro-22 has 6 fixed channels, determined by crystals.
From the RadioShack manual:
The PRO-22 is a ruggedly built electronic unit, with all parts conservatively rated. However, you should treat it with care; don't subject it to excessively rough handling. You will find it will give you long life if kept free from dirt and excessive humidity.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 6 channels in 1 bank(s) @ 6 channels/second
Receiver
- RX-range
- 30-50 / 118-136 / 144-174 / 450-512 MHz
- Modulations
- AM FM
- Sensitivity
- FM better than 1 µV
AM better than 2 µV - Selectivity
- ± 9 kHz (-6 dB)
± 15 kHz (-50 dB) - Filters
- 10.7 MHz Crystal Filter and 455 kHz Ceramic Filter
- Receiver system
- Double conversion + XTAL
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 200 mW
Connections
- Antenna
- BNC
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 6V DC (4 AA cells)
- Current drain RX
- 45-130 mA
- TX
- -
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3870
- MPN
- RADIOSHACK-/-REALISTIC-PRO-000022
