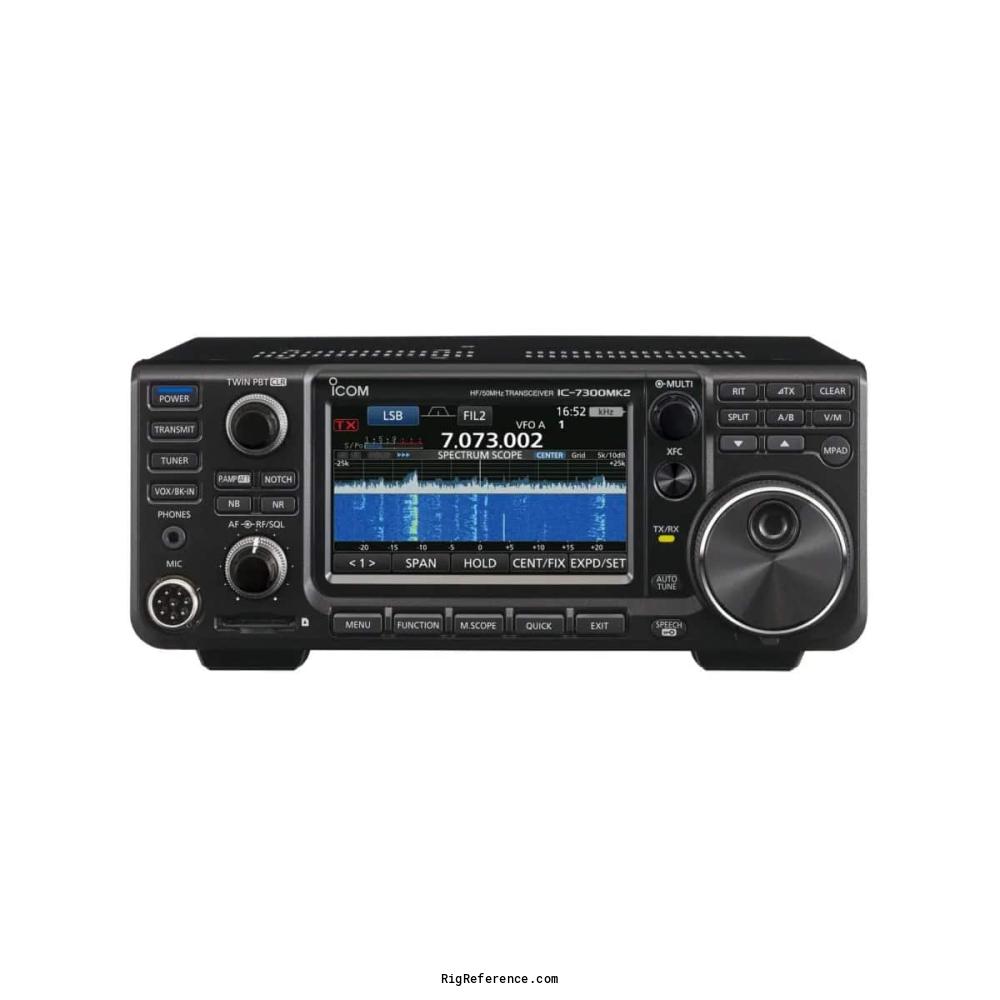

The IC-7300 Mk2 is an evolution of the ICOM IC-7300.

Improved RMDR and Phase Noise Characteristics
The IC-7300MK2’s RMDR is improved to about 105 dB* typical (at 2 kHz separation) and transmit Phase Noise characteristics are improved by about 12 dB (at 1 kHz frequency separation) compared to the previous model. The superior Phase Noise characteristics reduce noise components in both receive and transmit signals.

Lower Heat Generation and Lower Power Consumption
Through component selection and DC power optimisation, the IC-7300MK2 reduces heat generation and enables stable operation during extended operating periods, such as contest operation. Compared to the previous model, the IC-7300MK2 reduces power consumption from 0.9 A to 0.7 A (typical) during RX standby.

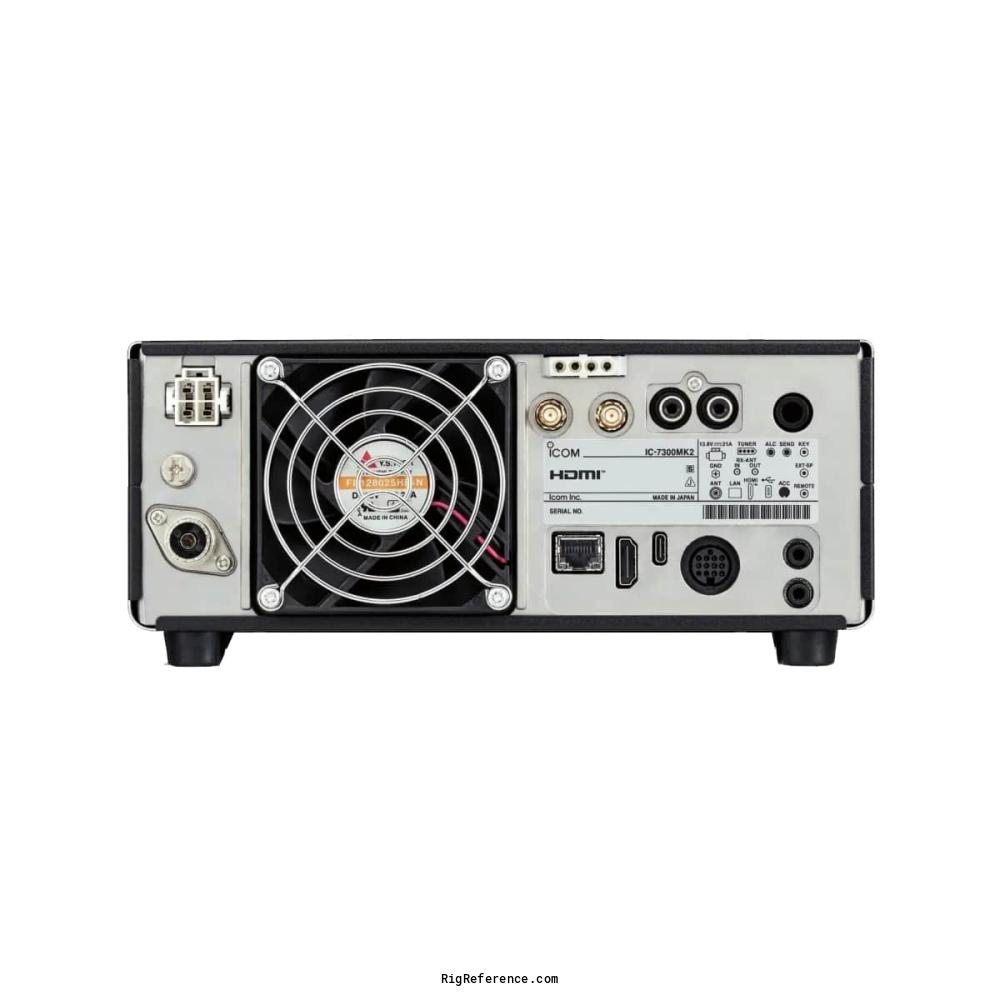

HDMI™ Port for an External Display
As a first for Icom’s HF/50 MHz radios, the IC-7300MK2 incorporates an HDMI™ port for external display connection. Operating information, such as frequency, scope, waterfall, and menus, can be shown on a large monitor, and audio can also be output through HDMI™ to the display’s speakers.

RX Antenna IN/OUT Connectors U
The RX Antenna IN/OUT connectors enable you to take advantage of antenna characteristics for optimized reception, such as avoiding interference and QRN. External bandpass filters and preamps can also be connected to these connectors.

Simplified RS-BA1 Remote Control
Whether from a remote location within your home QTH, or from a remote location somewhere around the world, the RS-BA1 (Version 2) software enables you to operate your IC-7300MK2. With the addition of an Ethernet connector, a base station computer is not required. You are able to remotely turn the radio ON or OFF through the Internet

Built-in CW Decoder
Another first for Icom’s HF/50 MHz radio, the IC-7300MK2 can decode Morse code signals without using a PC or other external equipment. The decode filter automatically follows the target signal, and keying speed is automatically adjusted.

USB Type-C™ with Dual COM + Audio
The IC-7300MK2 provides a USB Type-C™ port with dual virtual COM ports and audio In/Output. You can use two applications simultaneously, such as FT8, logging and contest software, with just one USB cable.

Other Features
• Supports newly allocated 5 MHz band (Europe Version)
• 70 MHz band is included in the Europe Version.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m 4m
Frequency stability: Less than ±0.5 p.p.m. (–10˚C to +60˚C; 14˚F to 140˚F)
Tuning steps: 1 Hz
Memories: 101 channels in bank(s)

Receiver

RX-range: RX: 0.03-74.8 MHz (some bands not guaranteed)
Modulations: AM FM CW USB LSB RTTY
Sensitivity: SSB/CW (at 10dB S/N)
0.5-1.8MHz: -
1.8-29.995MHz: 0.16μV
28.0-29.7MHz: -
50MHz band: 0.13μV

AM (at 10dB S/N)
0.5-1.8MHz: 12.6μV
1.8-29.995MHz: 2.0μV
28.0-29.7MHz: -
50MHz band: 1.0μV

FM (at 12dB SINAD)
0.5-1.8MHz: -
1.8-29.995MHz: -
28.0-29.7MHz: 0.5μV
50MHz band: 0.25μV
Selectivity: SSB (BW: 2.4KHz)
More than 2.4kHz/–6dB
Less than 3.4kHz/–40dB

CW (BW: 500Hz)
More than 500Hz/–6dB
Less than 700Hz/–40dB

RTTY (BW: 500Hz)
More than 500Hz/–6dB
Less than 800Hz/–40dB

AM (BW: 6kHz)
More than 6.0kHz/–6dB
Less than 10kHz/–40dB

FM (BW: 15kHz)
More than 12.0kHz/–6dB
Less than 22kHz/–40dB
Filters: ?
Receiver system: Direct Sampling Superheterodyne
IF-frequencies: 36 kHz
Image rejection: More than 70dB
Audio output: More than 2.5W (at 10% distortion with an 8Ω load, 1kHz)

Transmitter

TX-range: 1.8-1.999 / 3.5-3.999 / 5.255-5.405* / 7-7.3 / 10.1-10.15 / 14-14.35 / 18.068-18.168 / 21-21.45 / 24.89-24.99 / 28-29.7 / 50-54 MHz
Modulations: AM FM CW USB LSB RTTY
RF-output: SSB/CW/FM/RTTY: 2–100W, AM: 1–25W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8V DC ±15%
Current drain RX: 0.7A typical (Standby), 1.25A (Maximum audio)
TX: 21A (at 100W output power)

Physical

Dimensions (w×h×d): 240 × 94 × 238 mm (9.45 × 3.70 × 9.37 in) (projections not included)
Weight: 4.20 kg (9.3 lbs)
Form factor: Base Station
Manufactured: Between 2025 and 20xx

Other features

Usage: Amateur / Ham radio operators
Features + options: HDMI output for external display
Built-in CW decoder
USB-C
Real-time spectrum scope
Built-in automatic antenna tuner
101 channels (99 regular, 2 scan edges)
SD memory card slot for saving data
Cooling fan system
Multi-function meter
CW functions: full break-in, CW reverse, CW auto tuning
SSB, CW, RTTY, AM, FM modes
Remote control via PC (RS-BA1 IP remote control software)
Accessories: -
RigReference ID: 6627
MPN: ICOM-IC-007300
