Uniden-Bearcat Pro - 640e

Mobile CB Transceiver

Specs Manuals (0) Reviews (1) Prices (2) Compare

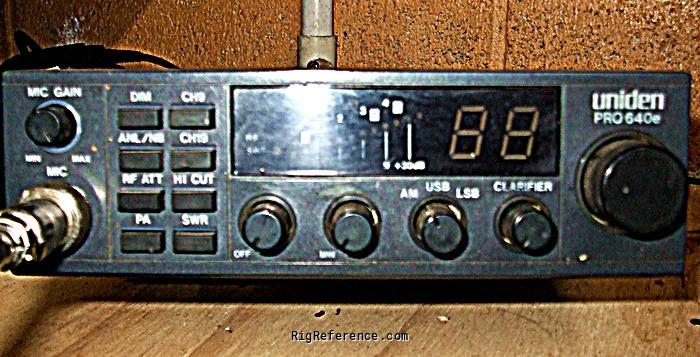

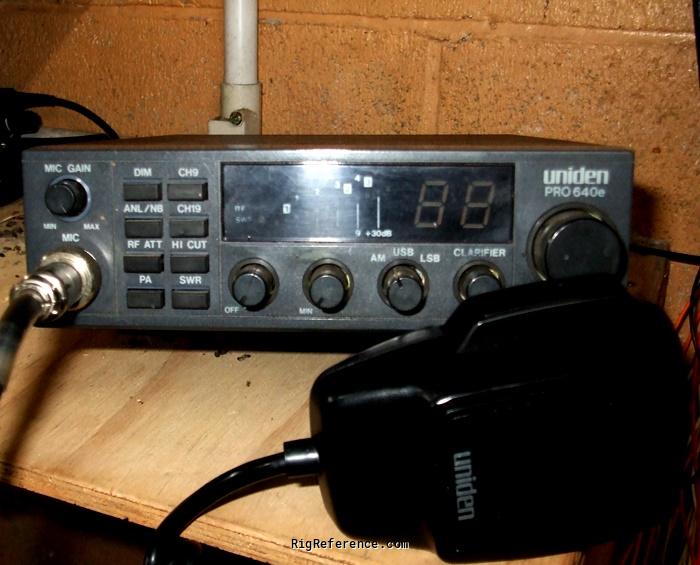

Front view with microphone. - Submitted by Mike

This radio was one of my first CB radios and I kicked myself for having sold the first one I ever bought.
It was ground-breaking in that it didn't look like any other CB transceiver on the market at the time.
Given that a lot of car interiors in the '80's where black and plastic based, this radio was quite popular during it's lifetime.
There were two versions of this model of radio, a 27 MHz set (Australia) and a 26 MHz set (the one that I have, because of the way that our TV channels were allocated in New Zealand).
Unfortunately, as time goes by, most of these radios develop a fault with the LED display for the channel indicators and while they can be repaired, it is not a simple task.

General characteristics

HAM bands: 11m (CB)
Frequency stability: ± 0.005% @ -10 - +50°C
Tuning steps: 40 AM Channels /
40 LSB Channels /
40 USB Channels.
Memories: None

Receiver

RX-range: 26.965 - 27.405 MHz (Australian version)
26.330 - 26.770 MHz (NZ version)
Modulations: AM SSB USB LSB
Sensitivity: AM - < 0.5 ųV.
SSB - < 0.25 ųV for 10 dB (S+N)/N.
Selectivity: 6 dB @ 7kHz, 70 dB @ 10 kHz typical.
Filters: Noise Blanker. Noise Limiter. High Tone Cut.
Receiver system: Dual conversion super-hetereodyne + PLL freguency control.
IF-frequencies: 10.695 MHz
Image rejection: 75 dB typical.
Audio output: 7 Watts into 4 Ohms

Transmitter

TX-range: 26.965 - 27.405 MHz (Australian version)
26.330 - 26.770 MHz (NZ version)
Modulations: AM SSB USB LSB
RF-output: AM - 4 Watts
SSB - 12 Watts PEP.

Connections

Antenna: SO-239
Impedance: 50Ω
Other: External Speaker - 3.5 mm Mono socket.
P.A Speaker - 3.5 mm Mono socket.

Electrical

Power requirements: 13.8 V DC Polarity not important
Current drain RX: 1.2 A Maximum Audio
TX: 3.0 A Full Modulation

Physical

Dimensions (w×h×d): 170 × 55 × 250 mm (6.69 × 2.17 × 9.84 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 1985 and 1993 in Phillipines

Other features

Usage: Citizen Band (27Mc)
Features + options: Instant Channel 9 and 19 buttons.
RF Attennuator .
Mic Gain Control.
SWR Meter.
Display Dimmer.
ANL/NB.
High Cut switch (Tone)
Accessories: -
RigReference ID: 6665
MPN: UNIDEN-BEARCAT-PRO-000640E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Rating	Title	Submitted
	Brilliant radio when it first came out.	4 hours ago by Mike

View all Uniden-Bearcat Pro - 640e reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Uniden-Bearcat Pro - 640e. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Uniden-Bearcat Pro - 640e in Good condition is around:

AUD 237 ~ AUD 245

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
1997	AUD 245.00	Used / Good	Mike
1995	AUD 315.00	New / Mint	Mike
