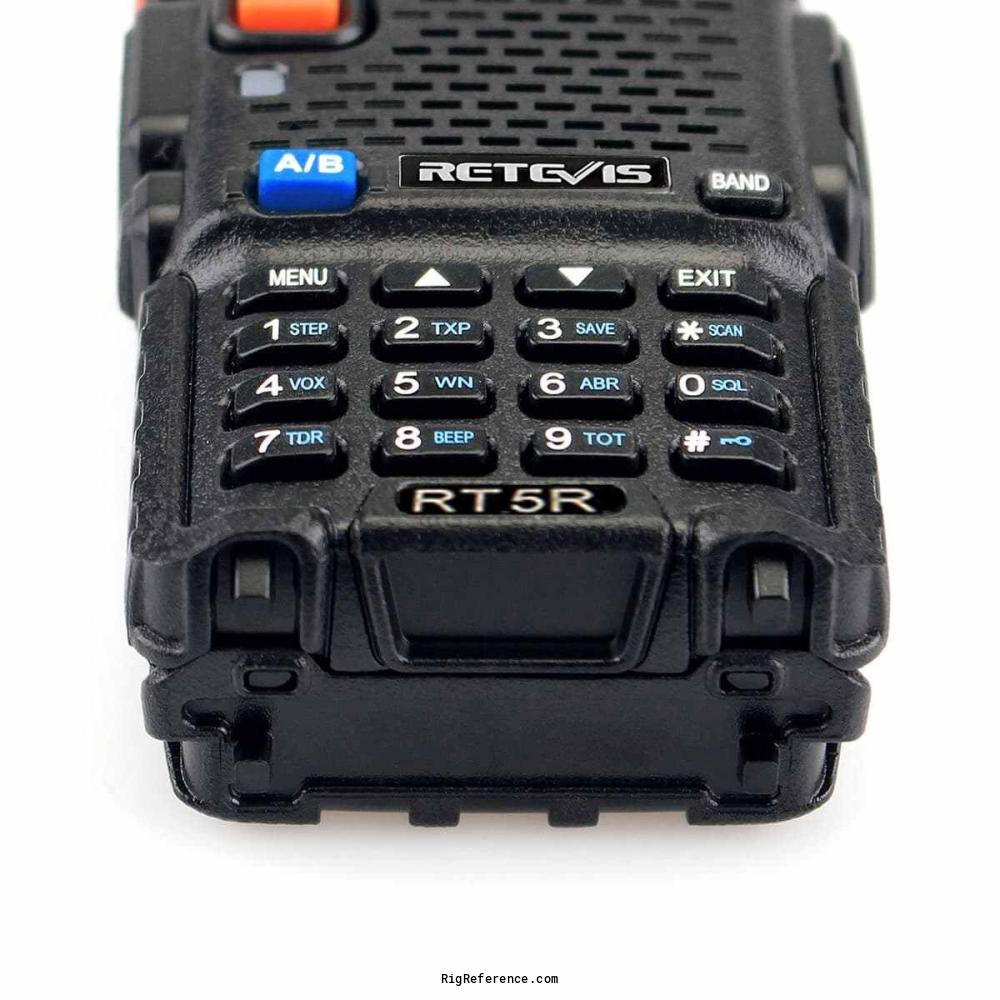

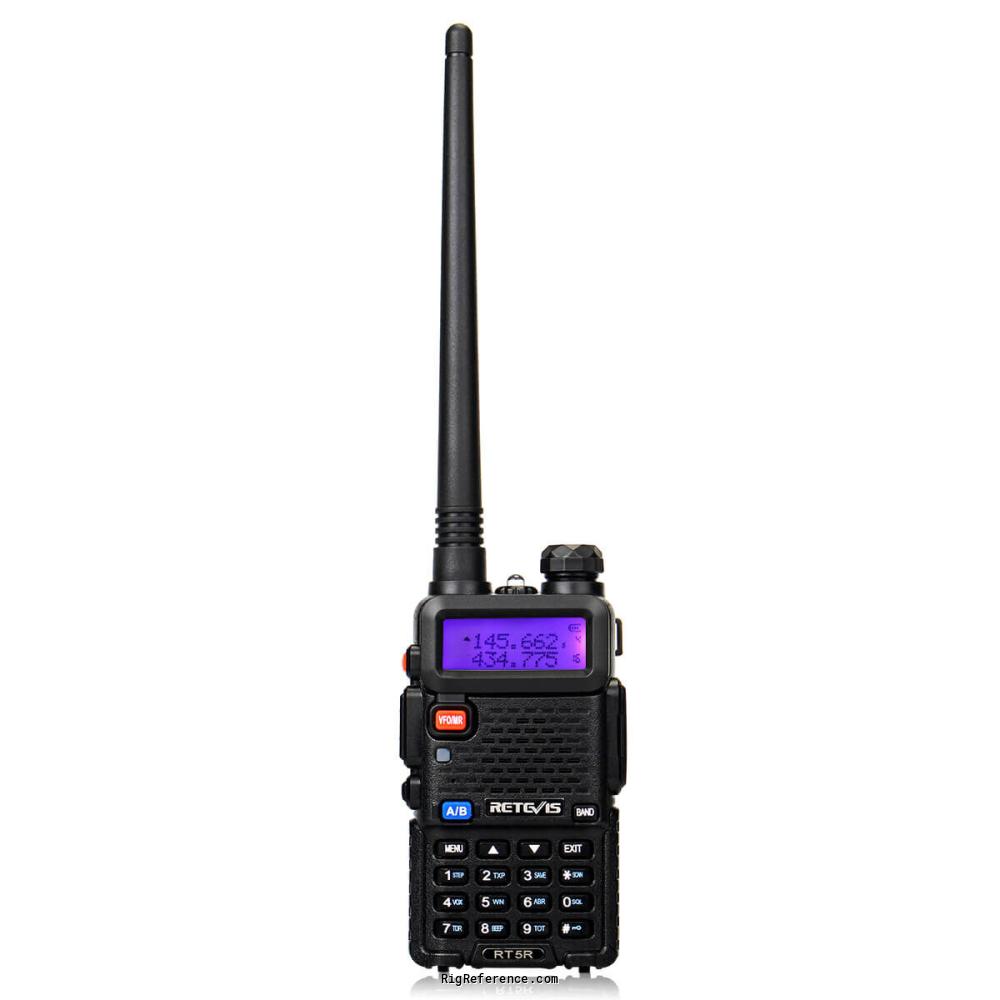

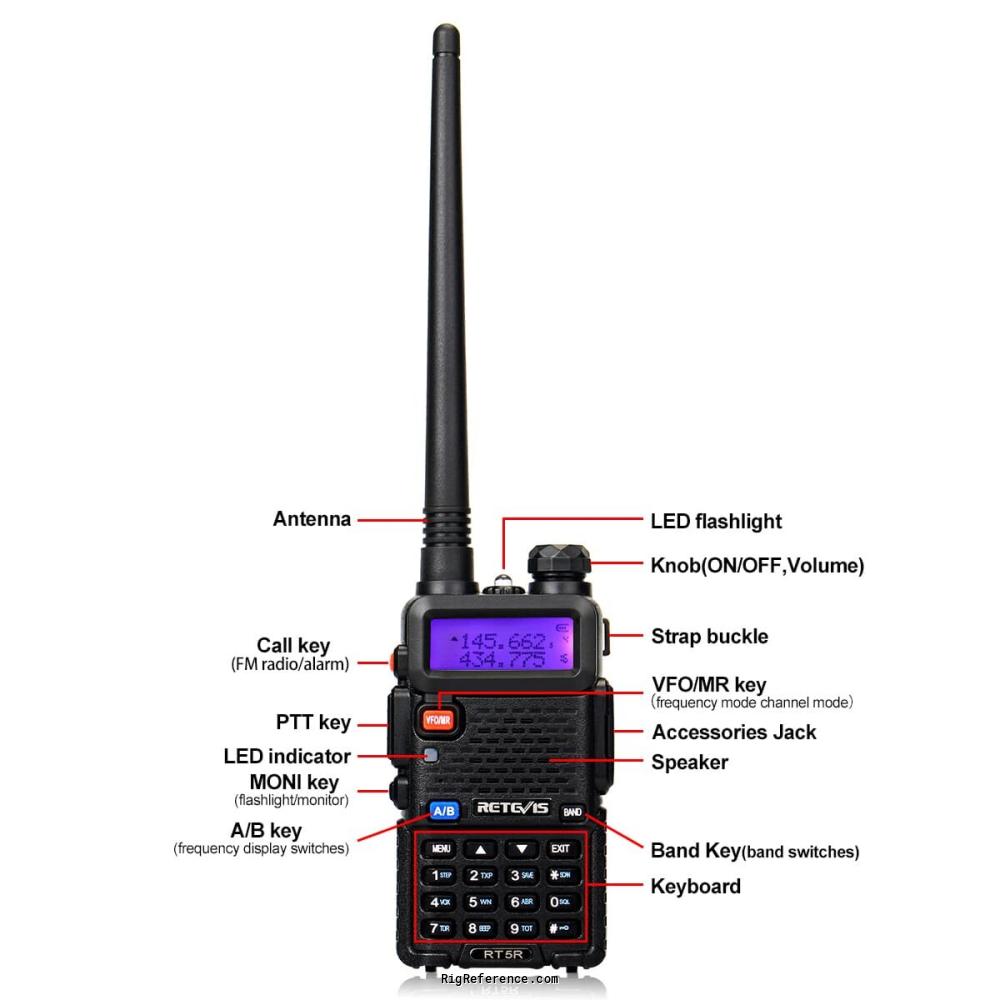

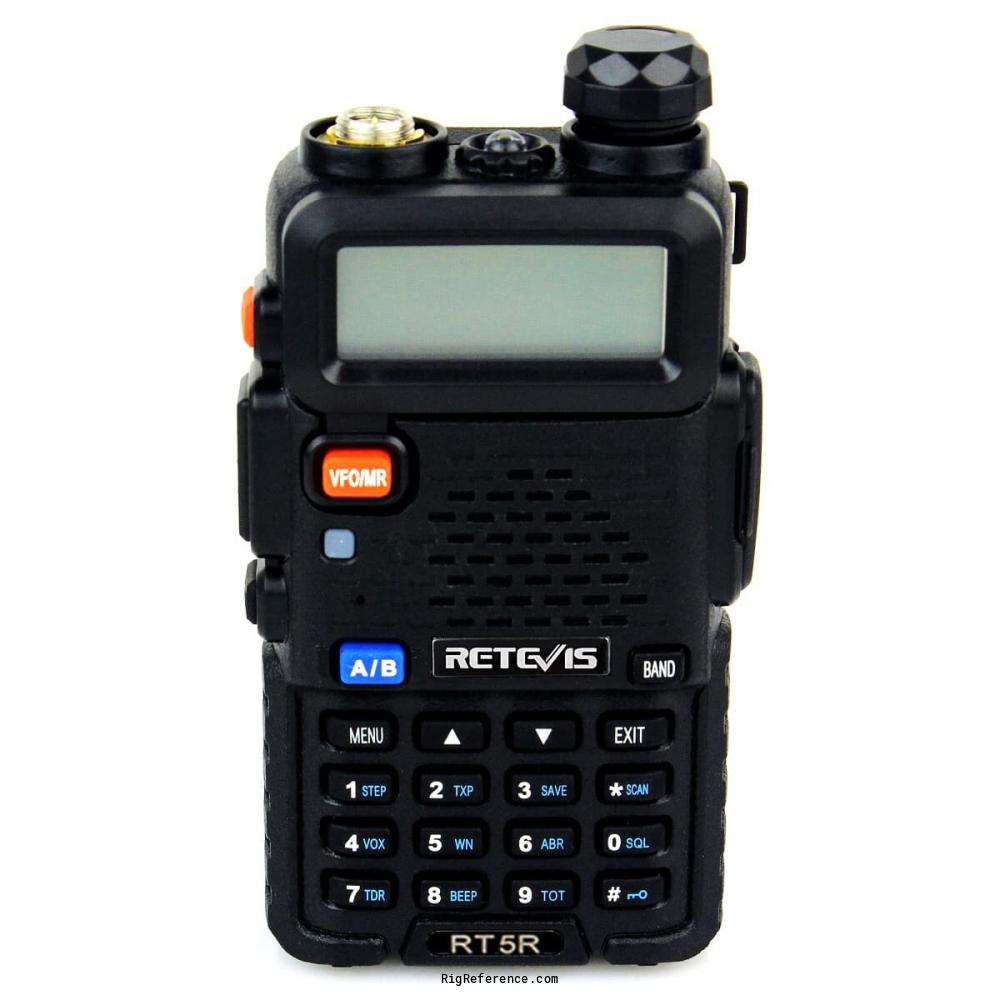

Retevis RT5R

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

128 channels in bank(s)

Receiver

RX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz
FM broadcast: 65-108 MHz

Modulations

FM   N-FM   W-FM

Sensitivity

Less than 0.16 µV (12 dB SINAD)
Squelch: less than 0.2 µV

Selectivity

65 dB (wide) / 60 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

VHF: 5 / 1 W
UHF: 4 / 1 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC Li-ion

Current drain RX

?

TX

Less than 1.6 A (5 W)

Physical

Dimensions (w×h×d)

58 × 110 × 32 mm (2.28 × 4.33 × 1.26 in)

Weight

200 gr (7.1 oz) Without antenna

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual band, dual display, dual standby
128 channels
50 CTCSS / 105 DCS
DTMF, PTT ANI
VOX, scan, TOT, BCLO
FM radio (25 presets)
LED torch
Emergency alarm
IP54

Accessories

-

RigReference ID

6725

MPN

RETEVIS-RT000005R

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Retevis RT5R. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT5R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RT5R in Good condition is around:

• USD 51
