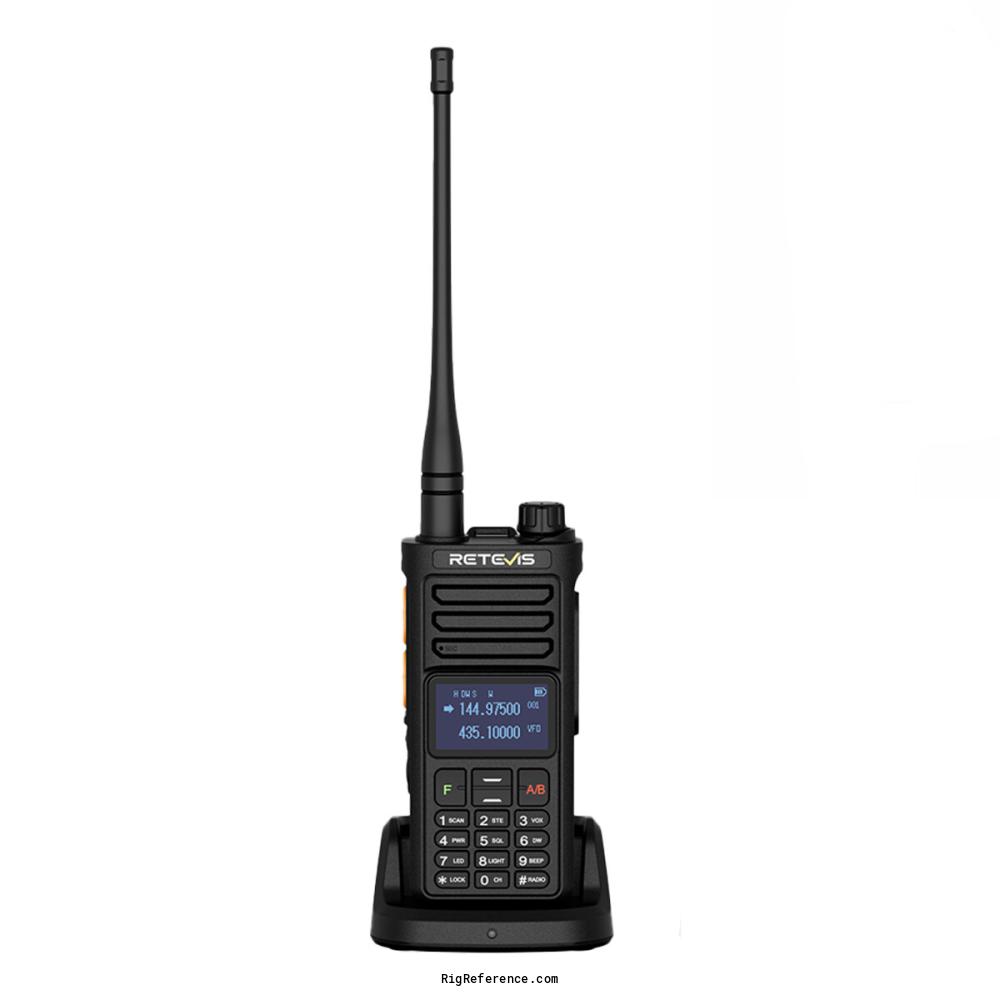

Retevis RA89R

General characteristics

HAM bands

2m  70cm

Frequency stability

5 ppm

Tuning steps

?

Memories

200 channels in bank(s)

Receiver

RX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz
Airband AM, FM broadcast

Modulations

AM   FM   N-FM   W-FM

Sensitivity

0.2 µV or better

Selectivity

65 dB or better

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

More than 500 mW, distortion 10% or less

Transmitter

TX-range

US: 144-148 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM

RF-output

5 / 3 / 1 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V DC Li-ion, 2500 mAh

Current drain RX

60 mA standby, 250 mA working

TX

1.6 A or less

Physical

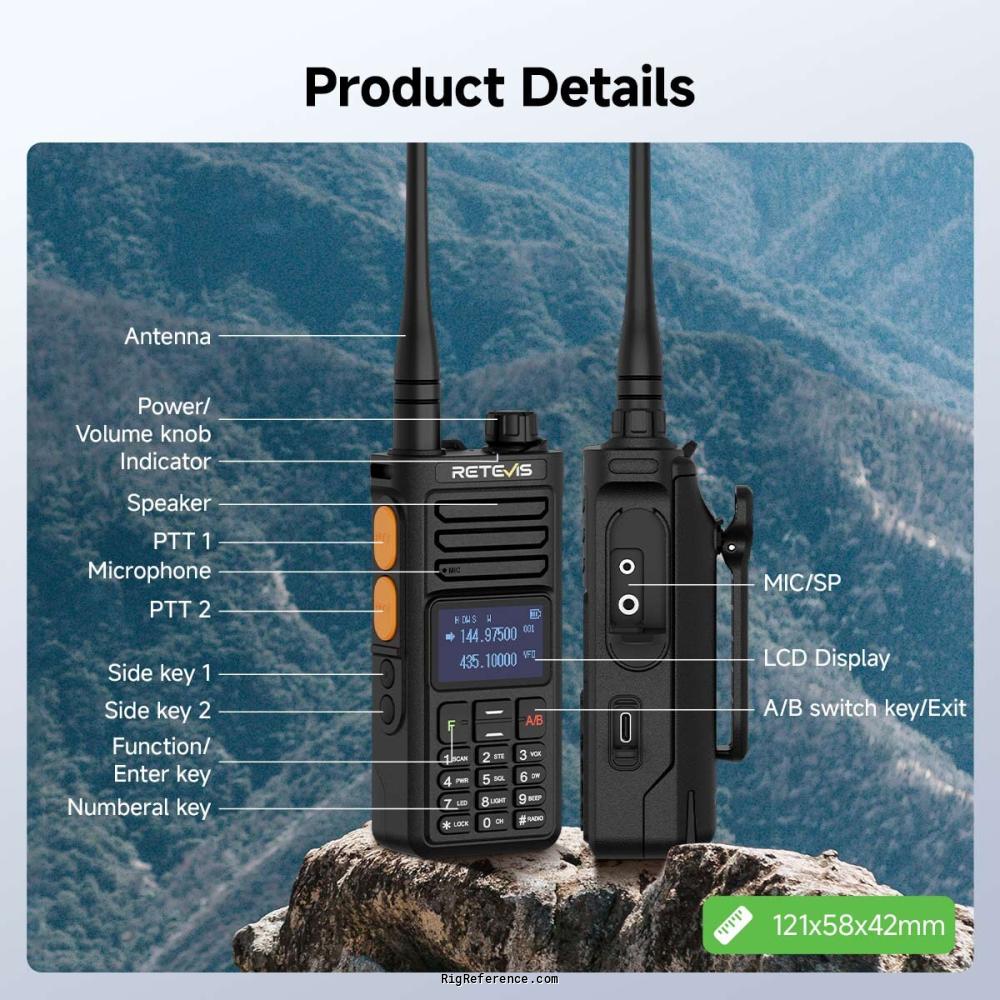

Dimensions (w×h×d)

58 × 121 × 42 mm (2.28 × 4.76 × 1.65 in)

Weight

268 gr (9.5 oz) With battery and antenna

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Cross-band repeater

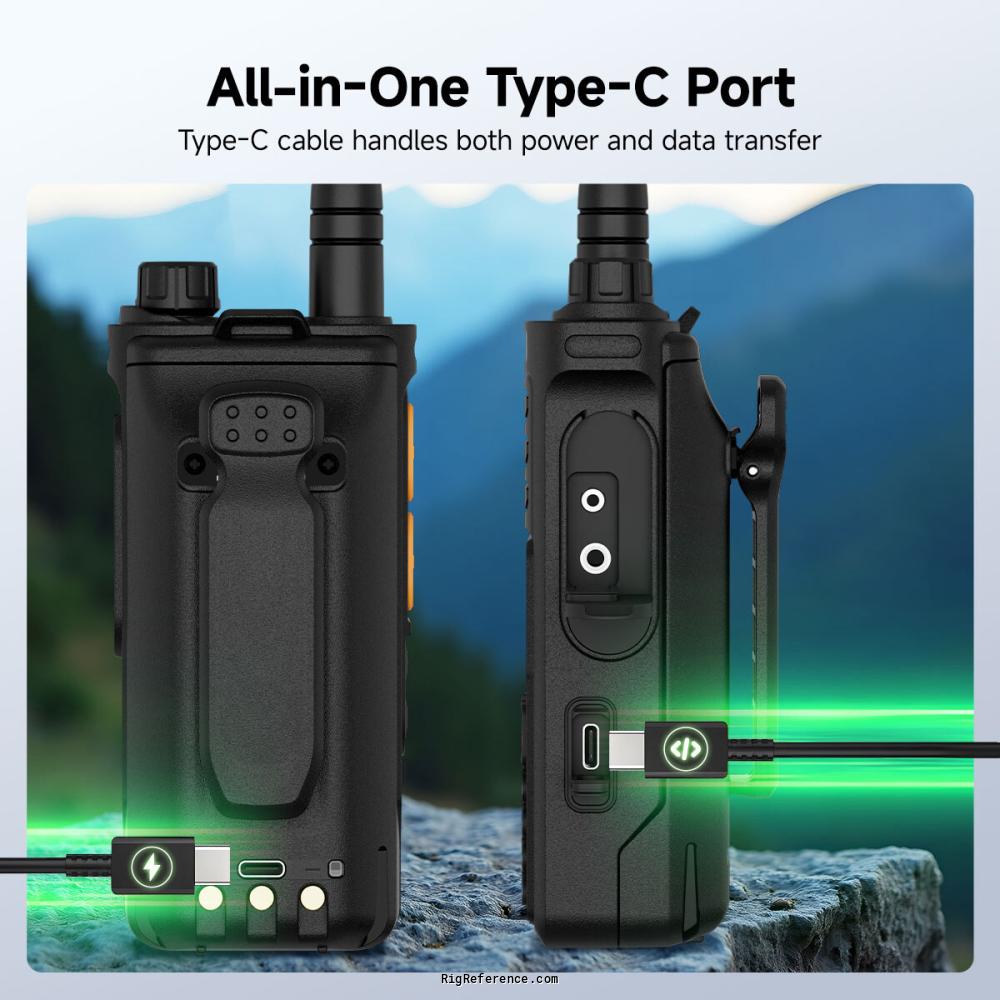

Bluetooth app and USB-C programming
Dual watch
AM airband, FM radio, NOAA
50 CTCSS / 210 DCS, 2-Tone / 5-Tone
VOX, scan, TOT
USB-C charging

Accessories

-

RigReference ID

6728

MPN

RETEVIS-RA000089R

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Retevis RA89R. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RA89R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RA89R in Good condition is around:

• USD 76
