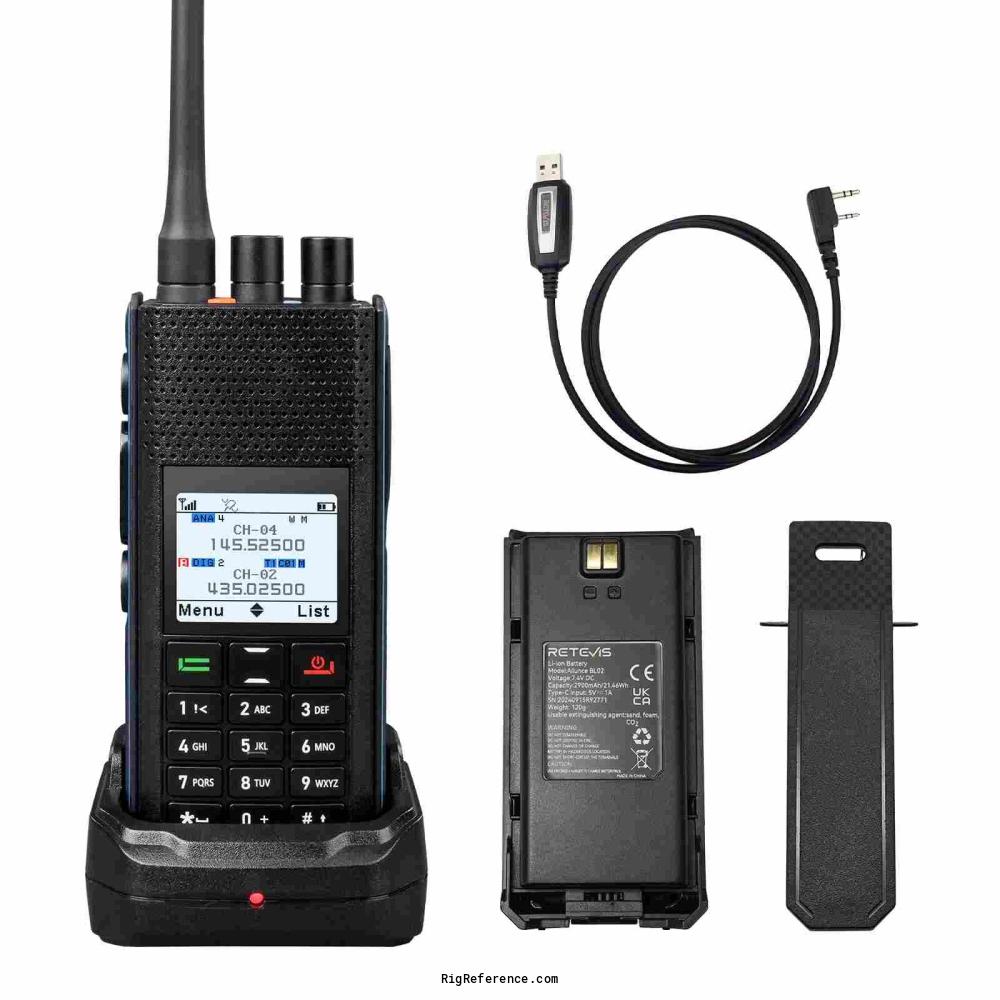

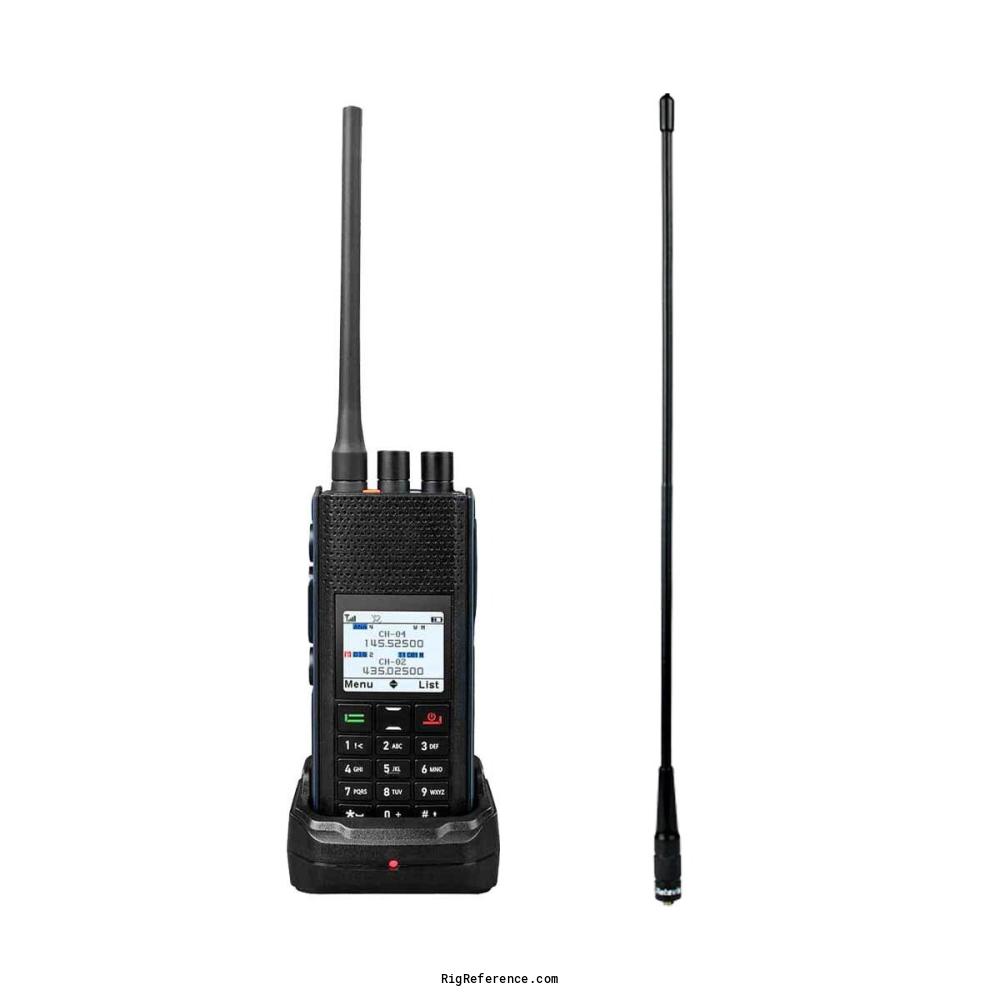

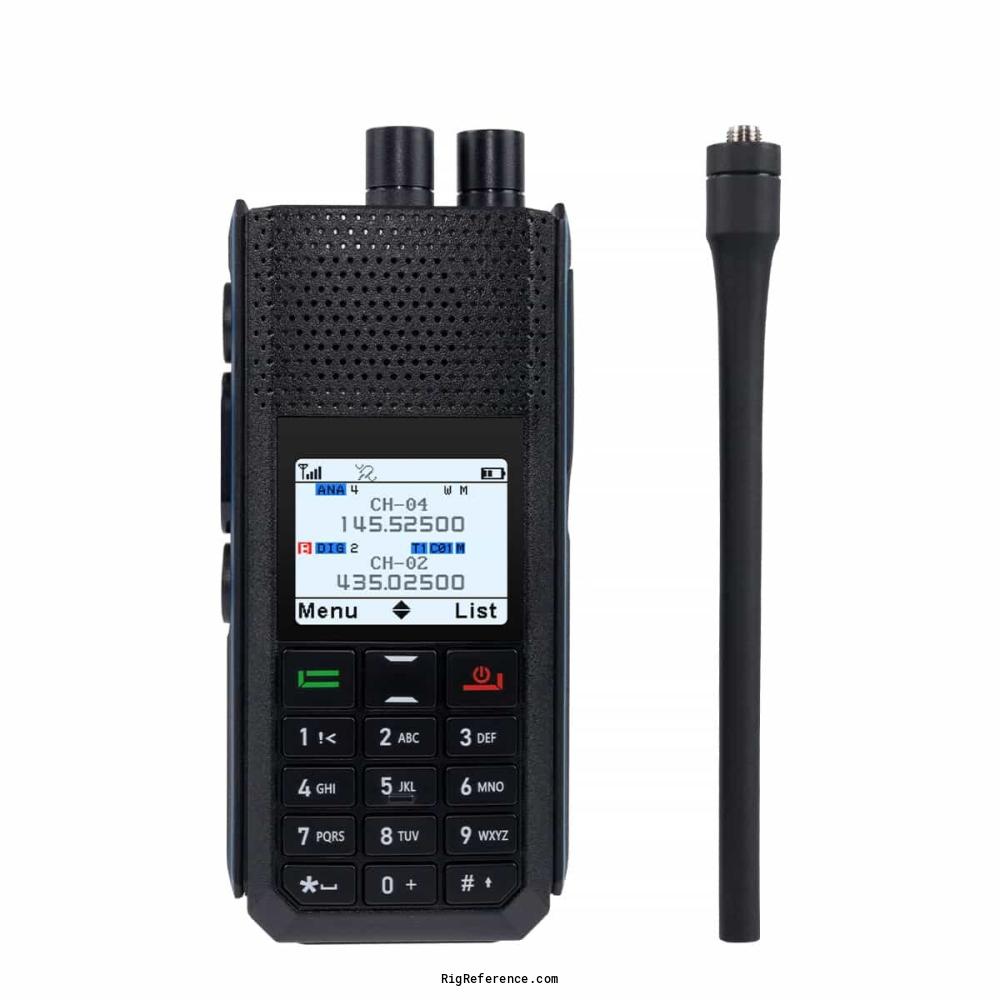

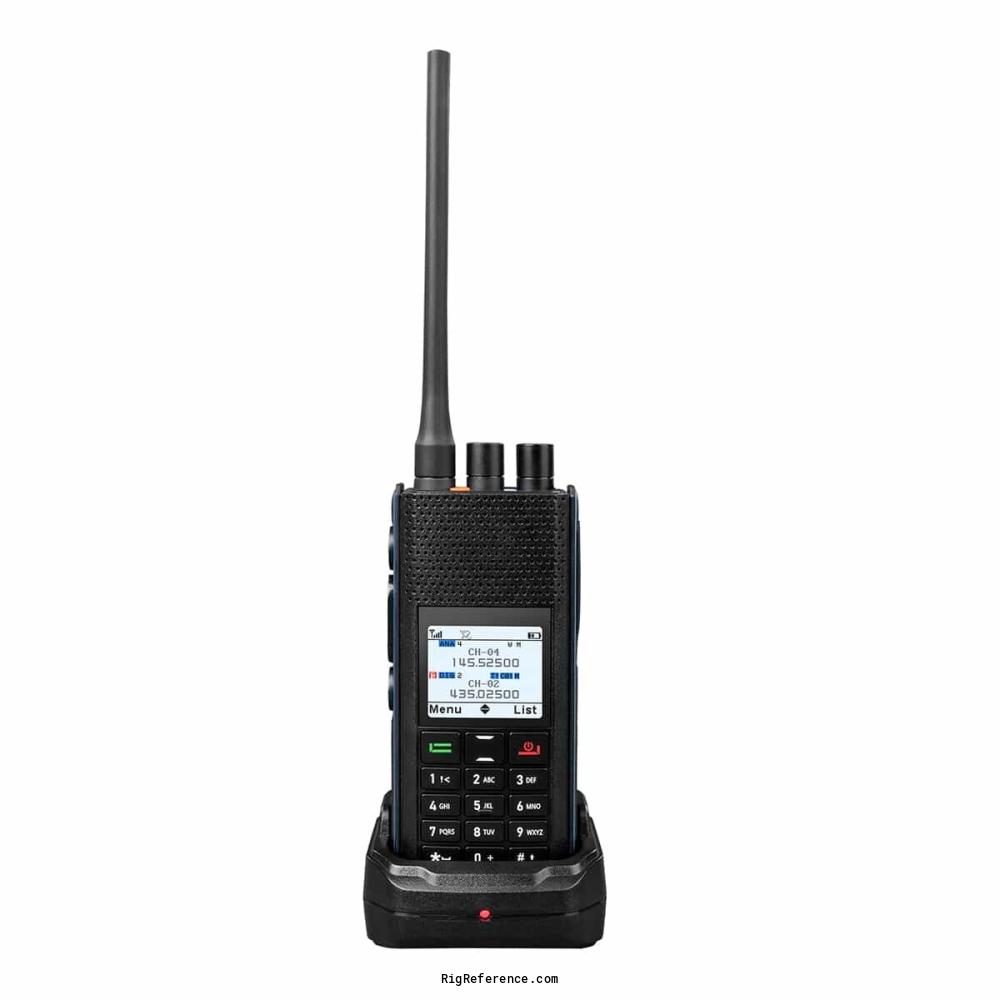

Ailunce H1

General characteristics

HAM bands

2m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

4000 channels in bank(s)

Receiver

RX-range

136-174 / 400-520 MHz

Modulations

FM   N-FM   DMR

Sensitivity

-121 dBm or better (12 dB SINAD)

Selectivity

70 dB (25 kHz) / 60 dB (12.5 kHz)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W (16 ohm)

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM   N-FM   DMR

RF-output

6 / 3 / 0.5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V Li-ion

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band DMR / analog
GPS (GPS, SBAS, QZSS, BDS)
APRS transmit / receive and messaging (1200 bps)
4000 channels
500,000 contacts

Accessories

-

RigReference ID

6734

MPN

AILUNCE-H000001

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Ailunce H1. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ailunce H1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ailunce H1 in Good condition is around:

• USD 146
