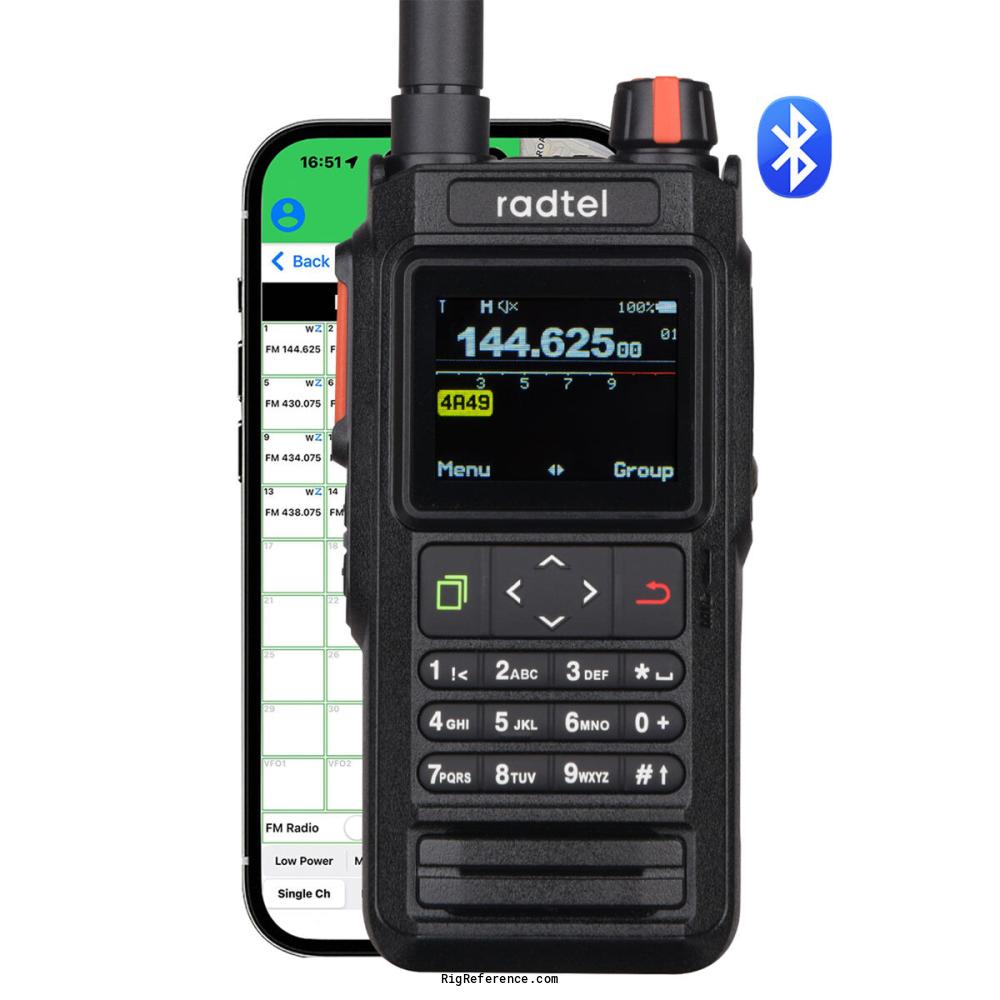

Radtel RT-660

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

136-174 / 350-520 MHz
Airband AM 108-136 MHz
FM broadcast 88-108 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

FM   N-FM

RF-output

Up to 7 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V Li-ion, 2600 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

60 × 130 × 40 mm (2.36 × 5.12 × 1.57 in)

Weight

?

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band handheld
GPS / APRS, KISS TNC, text messaging
Bluetooth app programming and audio, OTA updates
IP67
Dual watch, channel groups
BCL
CTCSS / DCS
USB-C charging

Accessories

-

RigReference ID

6762

MPN

RADTEL-RT-000660

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radtel RT-660. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radtel RT-660. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radtel RT-660 in Good condition is around:

• USD 132

Price History Chart

These estimates are based on the following prices:
