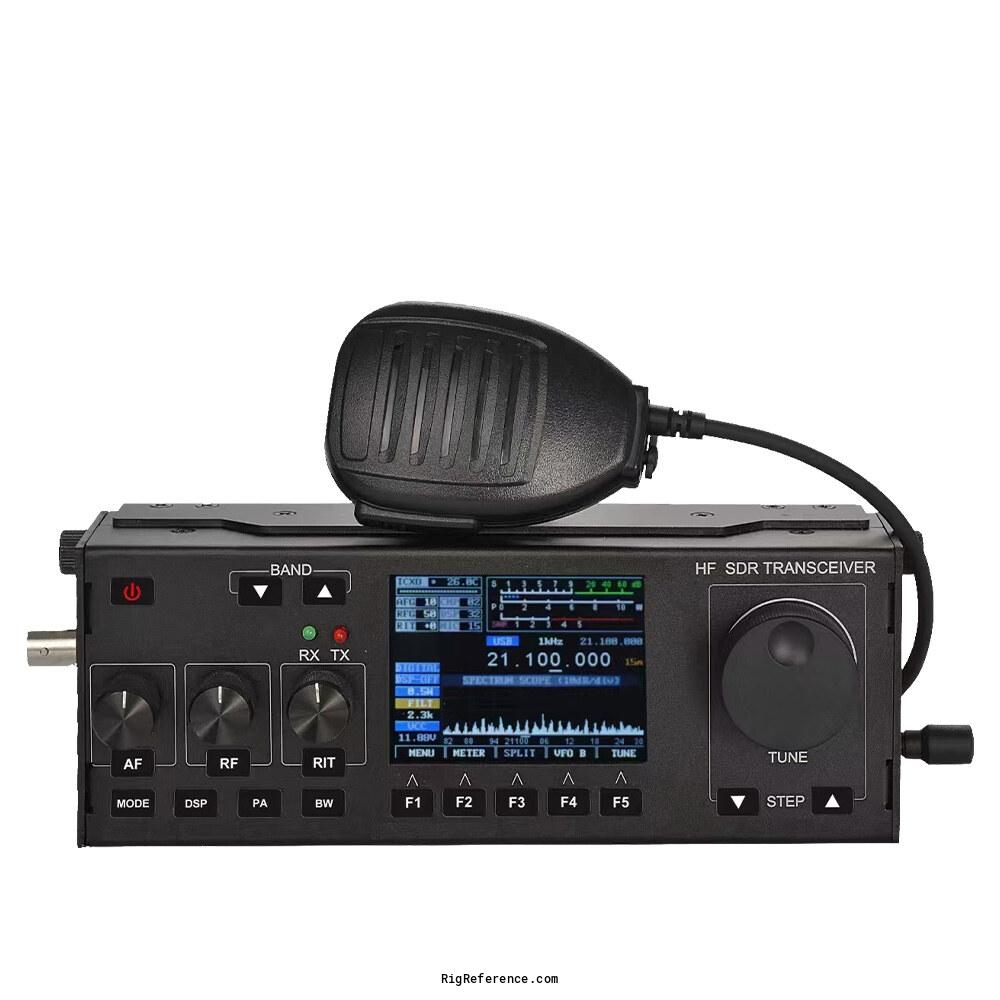

Zastone RS-918

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m

Frequency stability

±1.5 ppm (±0.5 ppm with optional TCXO)

Tuning steps

?

Memories

?

Receiver

RX-range

1.8-30 MHz

Modulations

AM   FM   CW   USB   LSB

Sensitivity

0.11-0.89 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

All HF amateur bands

Modulations

FM   CW   USB   LSB

RF-output

5 W (standard), 15 W (full), at 13.8 V

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

9-15 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

215 × 74 × 62 mm (8.46 × 2.91 × 2.44 in)

Weight

623 gr (1.4 lbs) Mounting bracket included

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

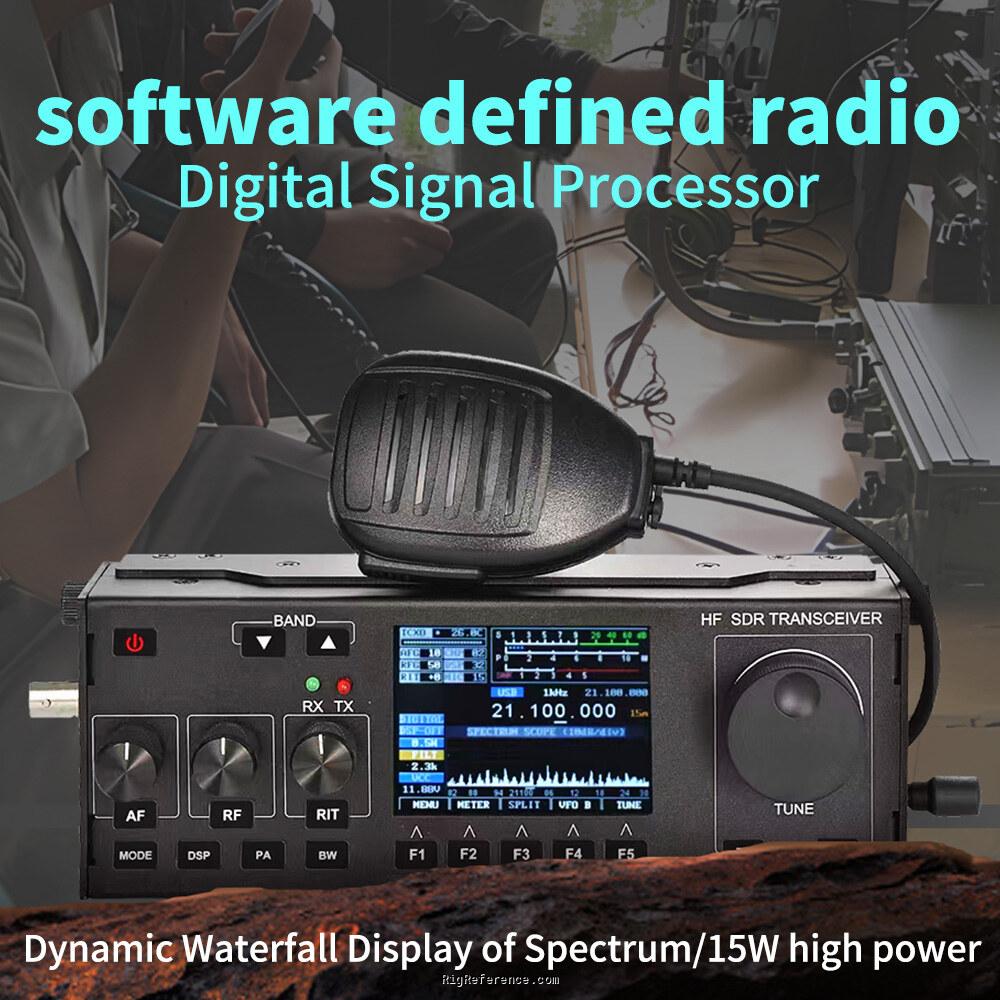

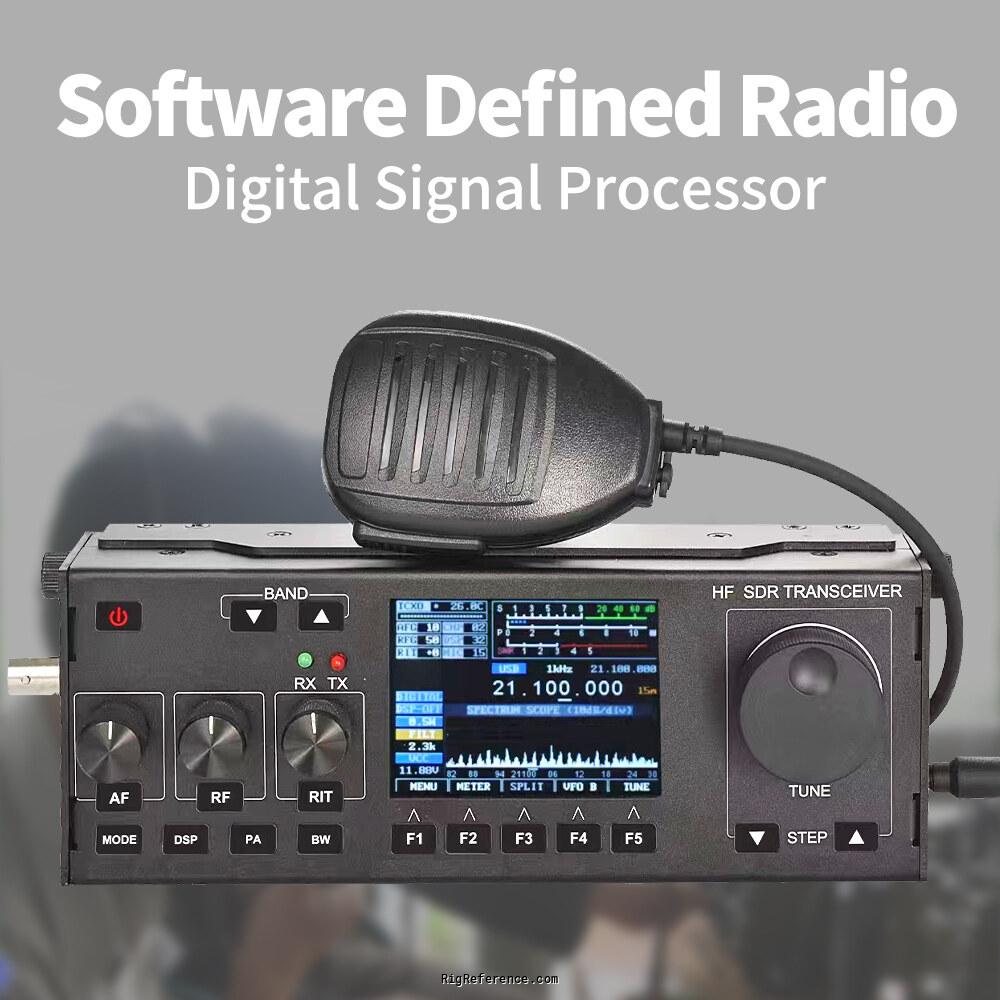

HF SDR transceiver
SSB, CW, AM (RX), FM, FreeDV
Waterfall display
Portable with internal battery option

Accessories

-

RigReference ID

6814

MPN

ZASTONE-RS-000918

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Zastone RS-918. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone RS-918. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Zastone RS-918 is around:

• USD 203 ~ USD 377

This estimate is based on similar equipment and may not reflect the exact value of this model.
