Zastone T3000
Commercial Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Operating temperature: -20 to +60 °C
Title gives 400-480 MHz; spec table 400-520 MHz
General characteristics
- HAM bands
- ?
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 16 channels in bank(s)
Receiver
- RX-range
- 400-520 MHz
- Modulations
- FM N-FM
- Sensitivity
- Less than 0.18 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 400 mW or more
Transmitter
- TX-range
- 400-520 MHz
- Modulations
- FM N-FM
- RF-output
- 6 W or less
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- ?
- Current drain RX
- ?
- TX
- 1.5 A or less
Physical

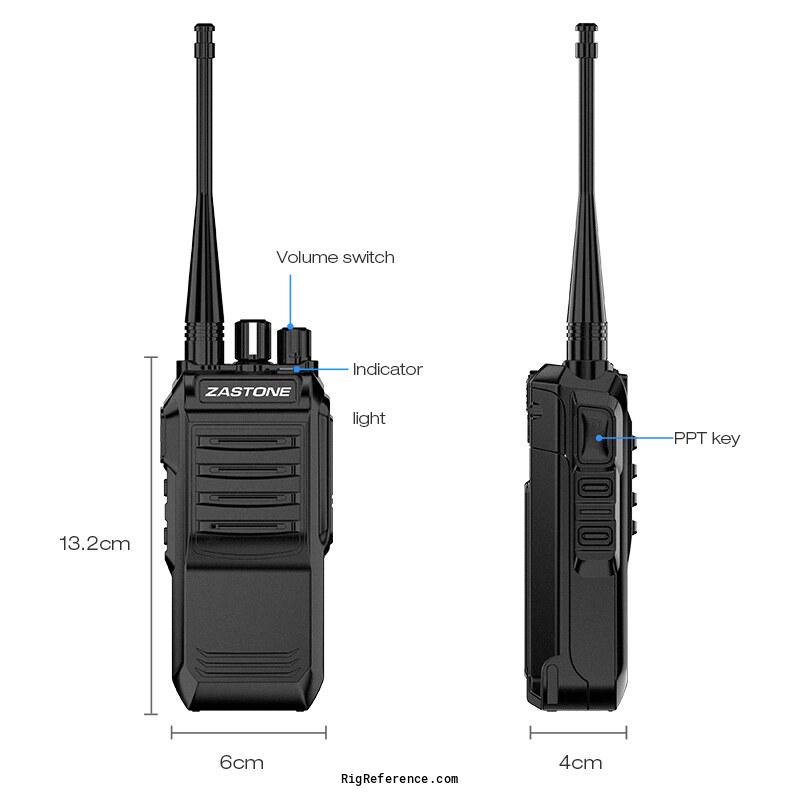

- Dimensions (w×h×d)
- 60 × 132 × 40 mm (2.36 × 5.20 × 1.57 in)
- Weight
- 215 gr (7.6 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- UHF business handheld
16 channels
Simplex or duplex
Scan, monitor
High / low power
Wide / narrow
Busy channel lockout
TOT prompt
English / Chinese voice prompts - Accessories
- -
- RigReference ID
- 6816
- MPN
- ZASTONE-T003000
