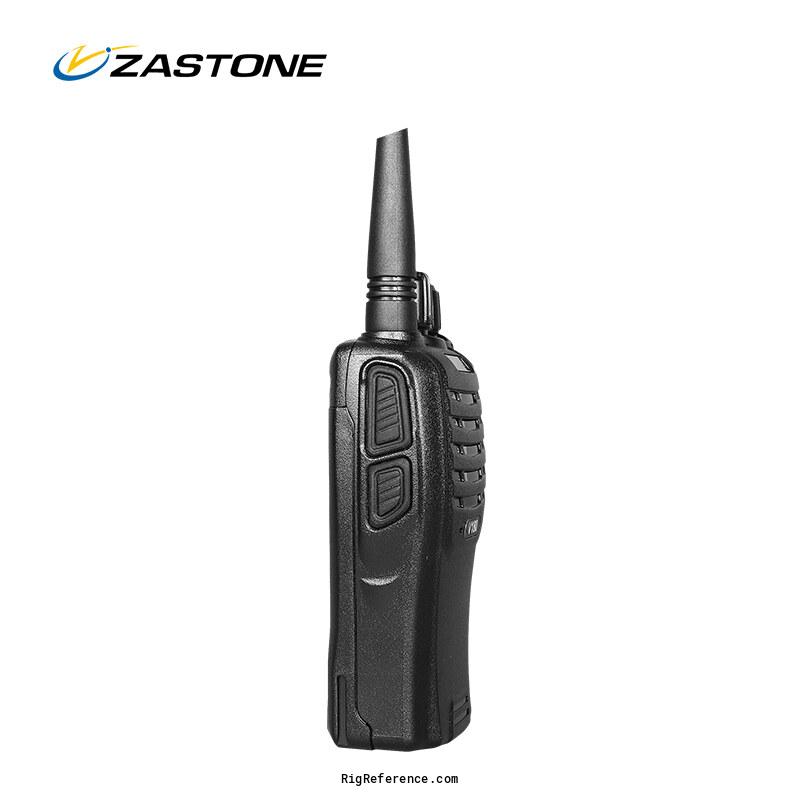

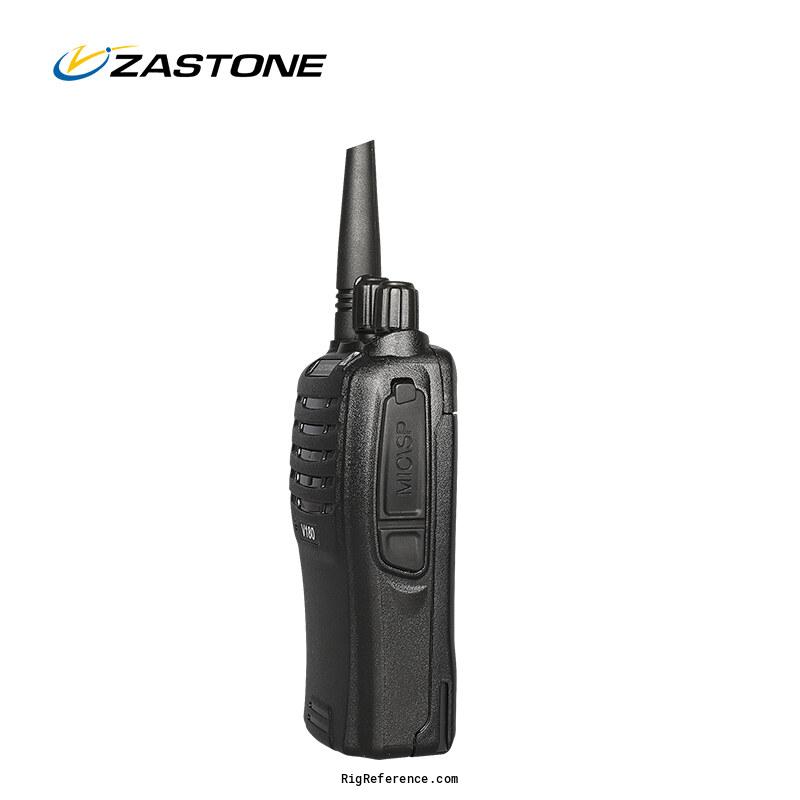

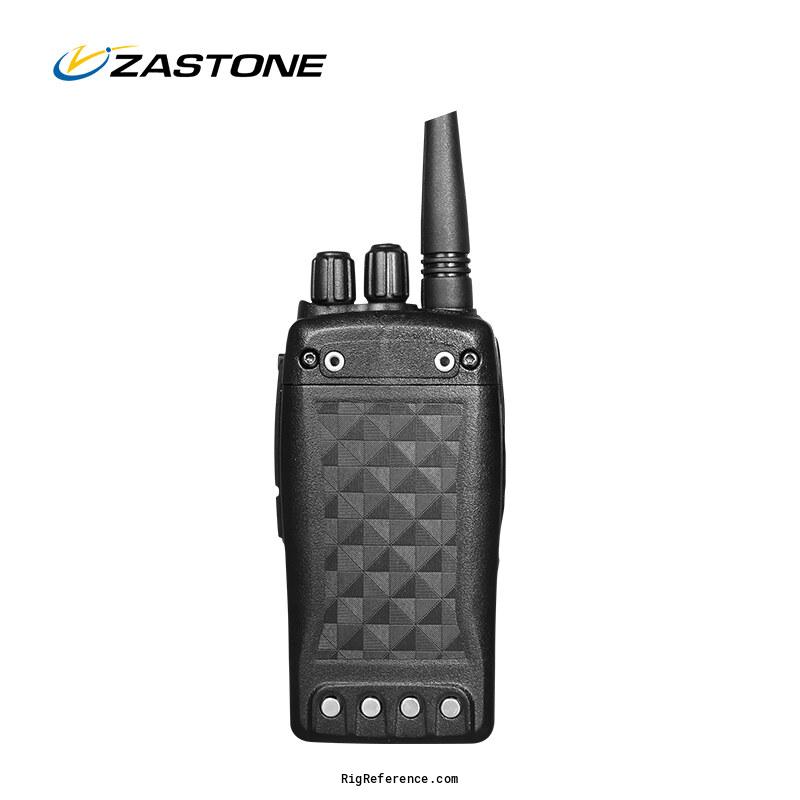

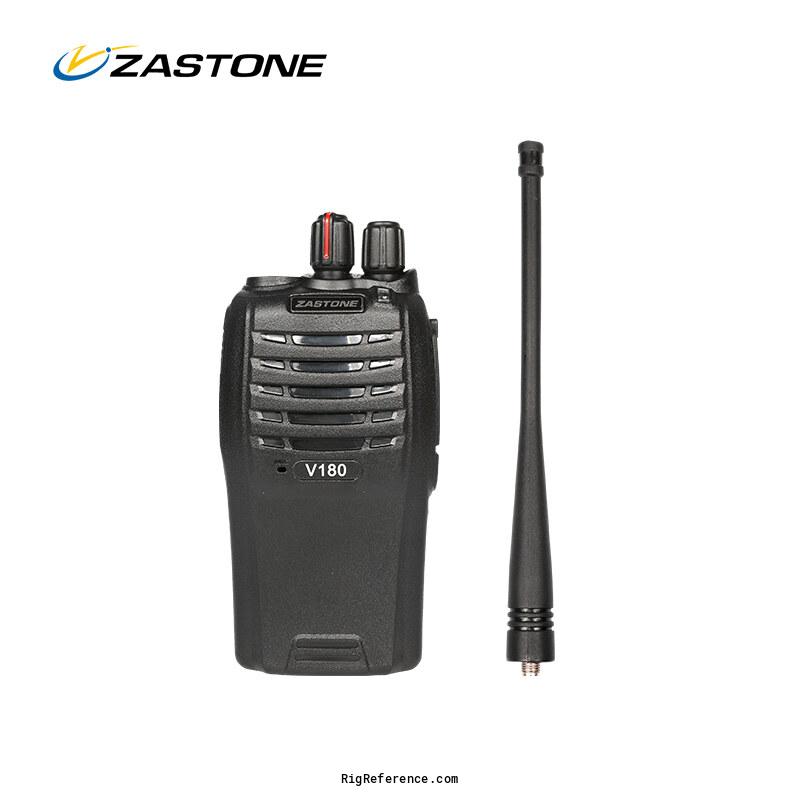

Zastone V180

General characteristics

HAM bands

?

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

16 channels in bank(s)

Receiver

RX-range

136-174 MHz (VHF version) or 400-470 MHz (UHF version)

Modulations

FM   N-FM

Sensitivity

Less than 0.18 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

400 mW or more

Transmitter

TX-range

136-174 MHz (VHF version) or 400-470 MHz (UHF version)

Modulations

FM   N-FM

RF-output

7 W

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.2 V

Current drain RX

46 mA standby (20 mA power save)

TX

1.5 A

Physical

Dimensions (w×h×d)

61 × 127 × 38 mm (2.40 × 5.00 × 1.50 in)

Weight

205 gr (7.2 oz) Including battery and antenna

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Commercial / Land mobile communication

Features + options

Single-band business handheld
16 channels

Accessories

-

RigReference ID

6818

MPN

ZASTONE-V000180

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Zastone V180. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone V180. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Zastone V180 is around:

• USD 203 ~ USD 377

This estimate is based on similar equipment and may not reflect the exact value of this model.
