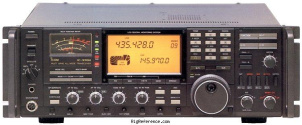

The Icom IC-970H provides the highest possible performance on 144 and 430 MHz with optional 1200 MHz operation (with UX-97). VHF Power output is 5-35W SSB/CW, 6-45W FM. UHF power output is 5-30W SSB/CW, 6-40W FM. UHF output is 5-30W SSB/CW, 6-40W FM. Receive is 144-150 and 430-450 MHz (1240-1300 MHz with optional UX-97). The 970H has a large 2.4 x 4.5 inch backlit LCD display. Refinements include: built-in speech processor, notch filter, CW semi-breaking, keypad entry, RIT, satellite functions and speaker separate switch.
The ICOM IC-970A is a lower power version providing VHF/UHF output at 3.5-25W SSB/CW/FM. If the optional UX-97 is added to either version, then output at 1200 MHz is 1-10W.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 0.01 / 5 / 10 / 12.5 / 20 / 25 / 100 kHz
- Memories
- 396 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 / 430-440 MHz (Europe)
140.1-150 / 430-450 MHz (USA) - Modulations
- FM CW SSB
- Sensitivity
- FM: 0.18 µV (12 dB SINAD)
SSB/CW: 0.11 µV (10 dB S/N) - Selectivity
- FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4.2 kHz (-60 dB)
CW narrow (option): 500 Hz (-6 dB), 1.3 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
140.1-150 / 430-450 MHz (USA) - Modulations
- FM CW SSB
- RF-output
- FM: 45/45 W, SSB/CW: 35/30 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 2-2.5 A
- TX
- Max 16 A
Physical
- Dimensions (w×h×d)
- 425 × 149 × 406 mm (16.73 × 5.87 × 15.98 in)
- Weight
- 15.00 kg (33.1 lbs) without PS-35 (with PS-35: 2.3kg)
- Form factor
- Base Station
- Manufactured
- Between 1990 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
Optional rack handles - Accessories
- -
- RigReference ID
- 3186
- MPN
- ICOM-IC-000970H
