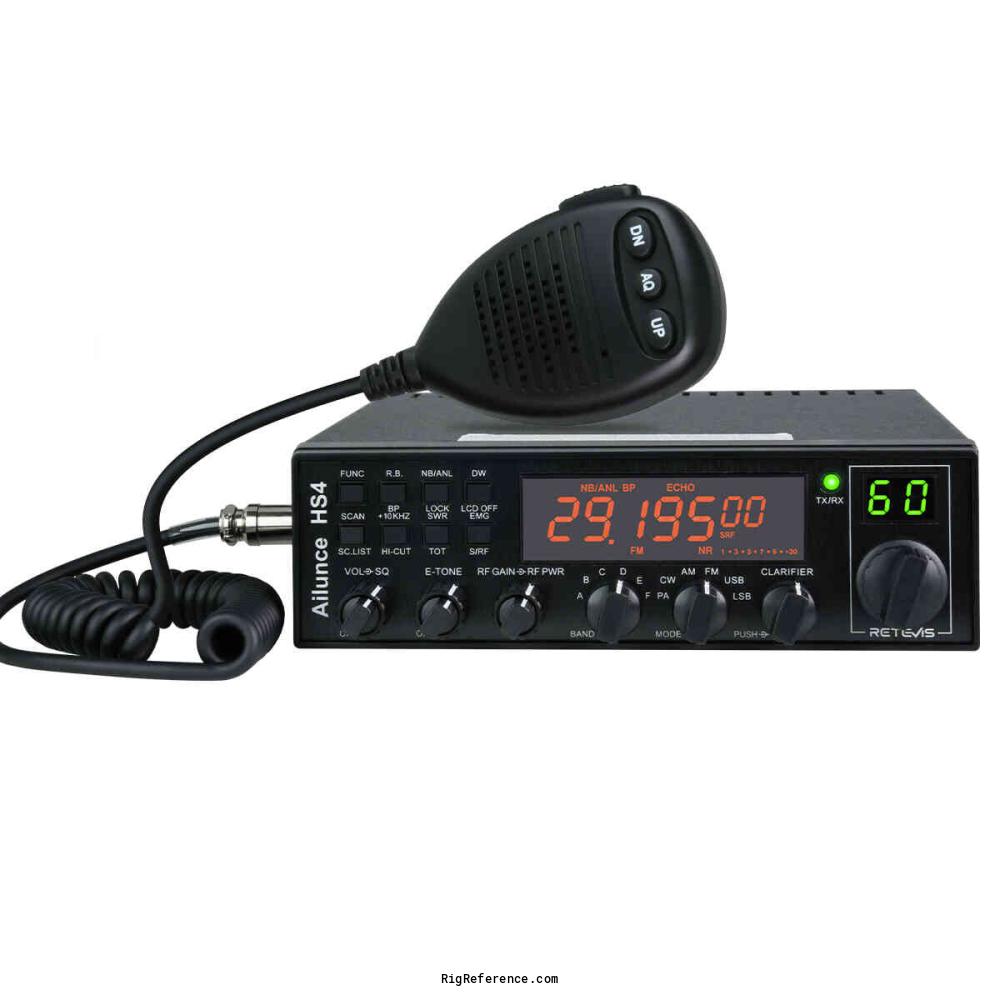

Ailunce HS4

General characteristics

HAM bands

10m

Frequency stability

0.001%

Tuning steps

?

Memories

60 channels in bank(s)

Receiver

RX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   USB   LSB

Sensitivity

SSB: 0.25 µV (10 dB S+N/N)
AM: 1.0 µV (10 dB S+N/N)
FM: 1.0 µV (20 dB S+N/N)
Squelch: less than 0.5 µV

Selectivity

AM/FM: 6 dB at 3 kHz, 50 dB at 9 kHz
SSB: 6 dB at 2.1 kHz, 60 dB at 3.3 kHz

Filters

?

Receiver system

Superheterodyne

IF-frequencies

AM/FM: 10.695 MHz, 455 kHz
SSB: 10.695 MHz

Image rejection

More than 65 dB

Audio output

3 W (8 ohm)

Transmitter

TX-range

28.000-29.700 MHz

Modulations

AM   FM   CW   USB   LSB

RF-output

AM/CW: 1-12 W
FM: 1-40 W
USB/LSB: 1-35 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC (11.7-15.9 V)

Current drain RX

0.8 A (squelched)

TX

AM full mod 6 A; SSB 30 W PEP 9 A

Physical

Dimensions (w×h×d)

280 × 60 × 250 mm (11.02 × 2.36 × 9.84 in)

Weight

1.51 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

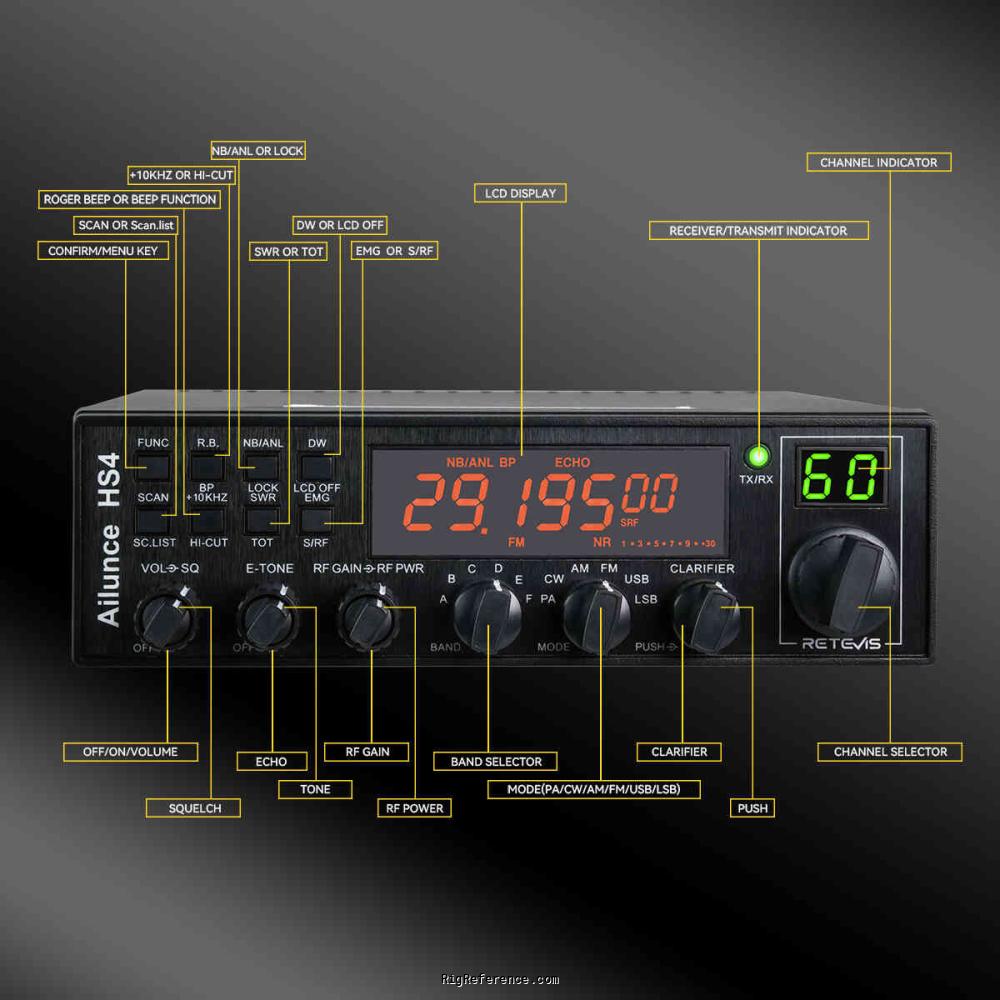

Features + options

10 m AM / FM / USB / LSB / CW / PA mobile

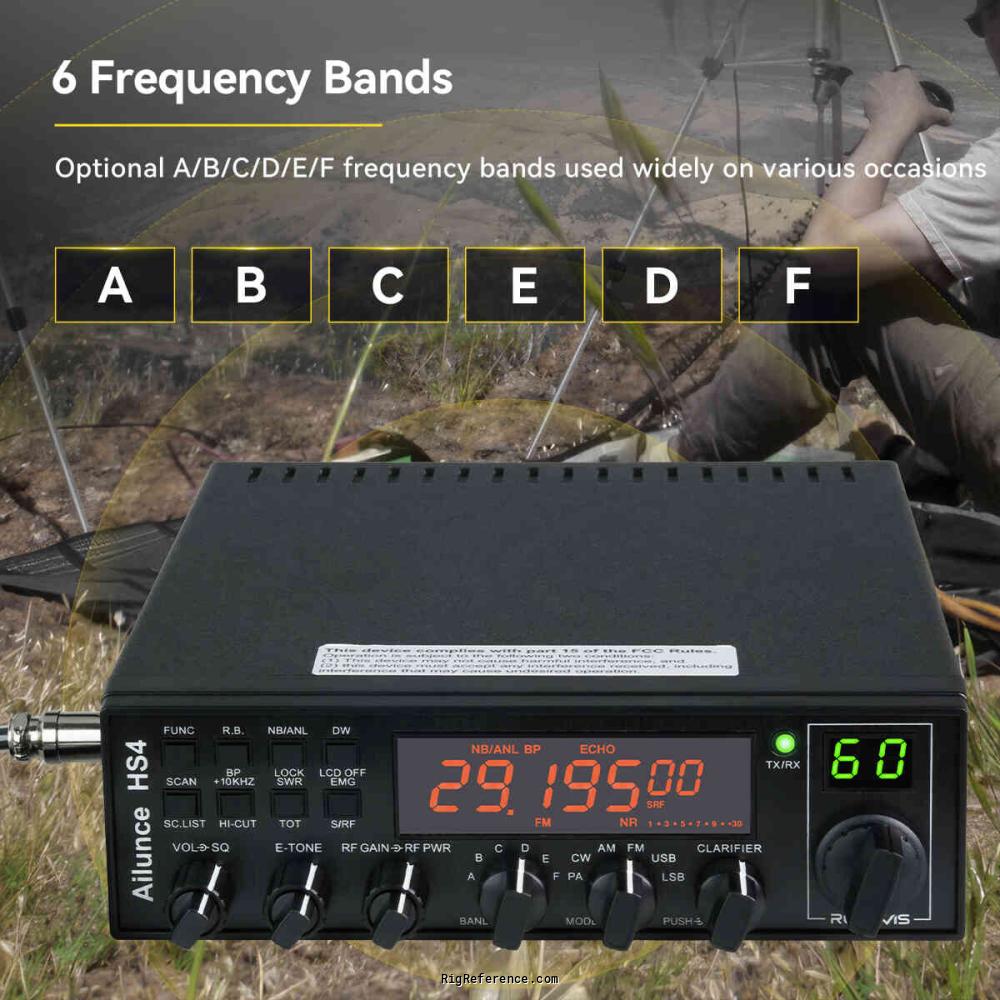

Bands A-F
60 programmable channels
PLL synthesiser, steps 10 Hz / 100 Hz / 1 kHz / 10 kHz
RF gain, AGC, ANL, RF noise blanker

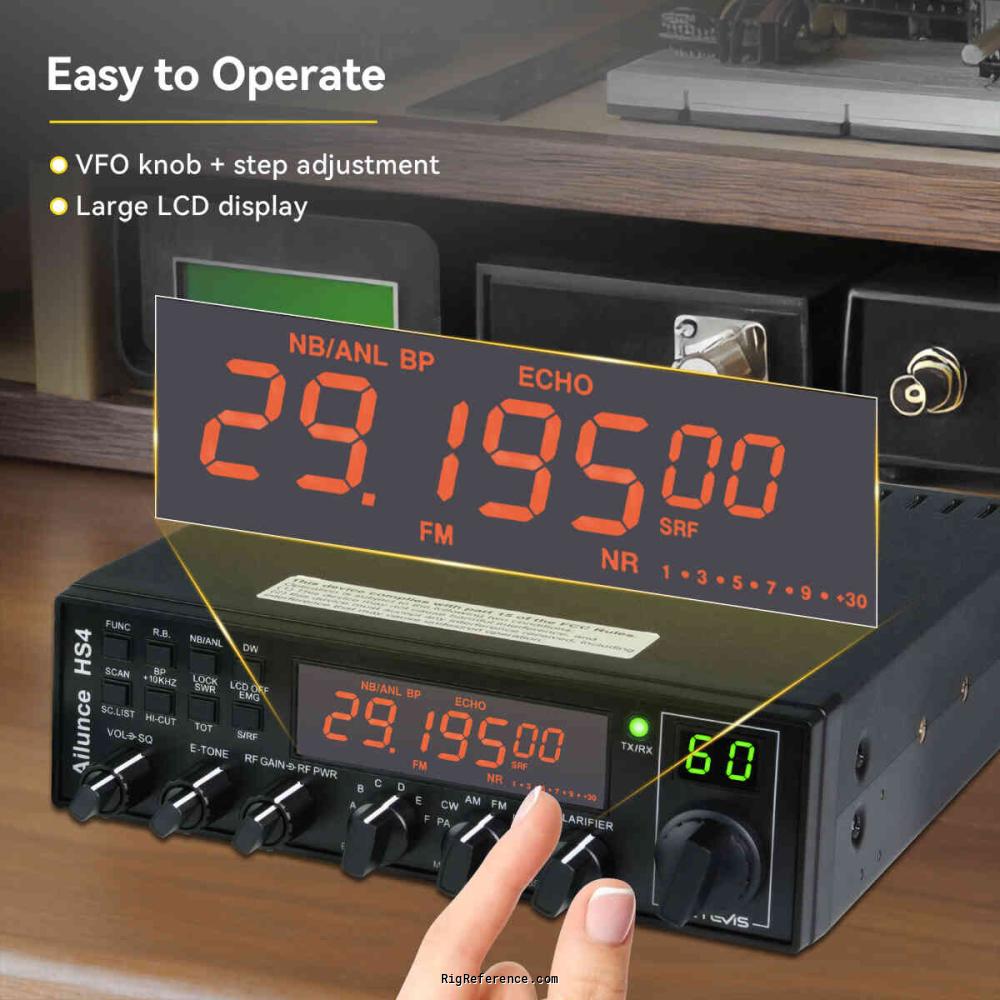

SWR protection, echo, keypad lock, VFO knob
104 CTCSS / DCS
IP54
SO-239 antenna connector

Accessories

-

RigReference ID

6720

MPN

AILUNCE-HS000004
