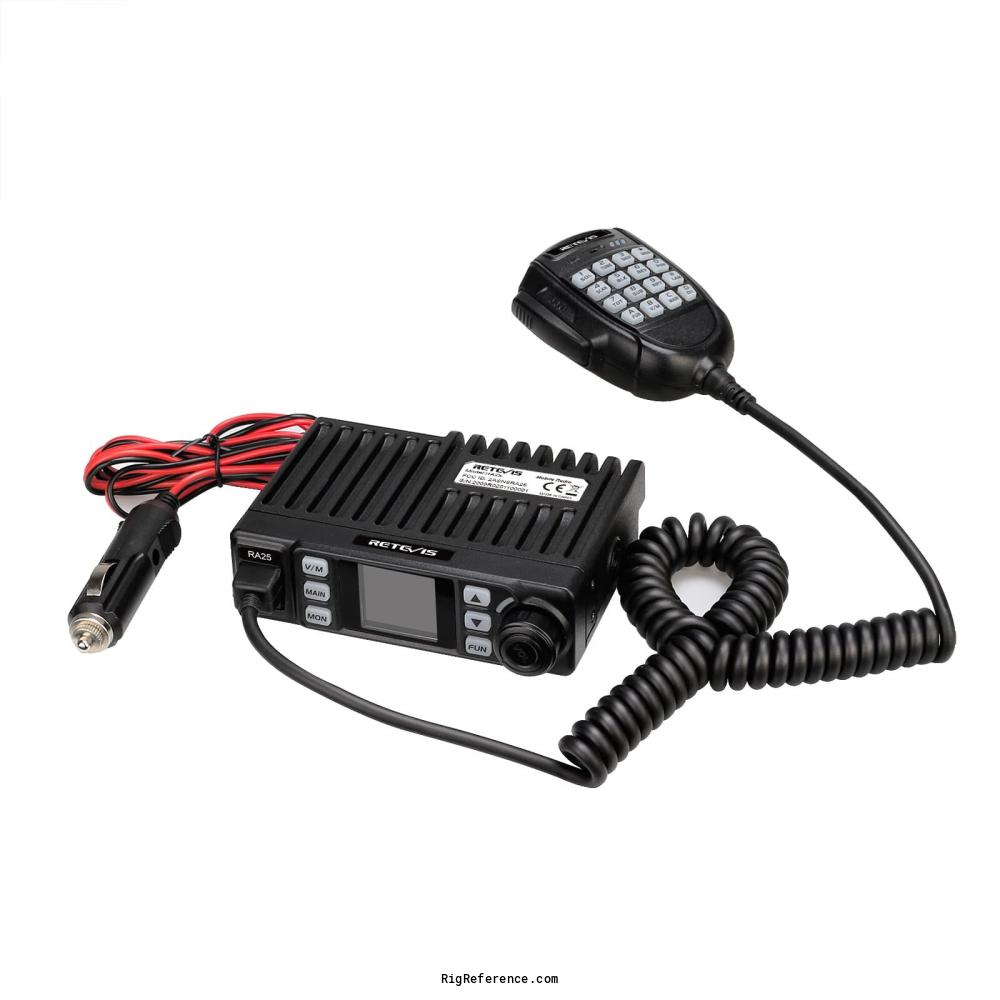

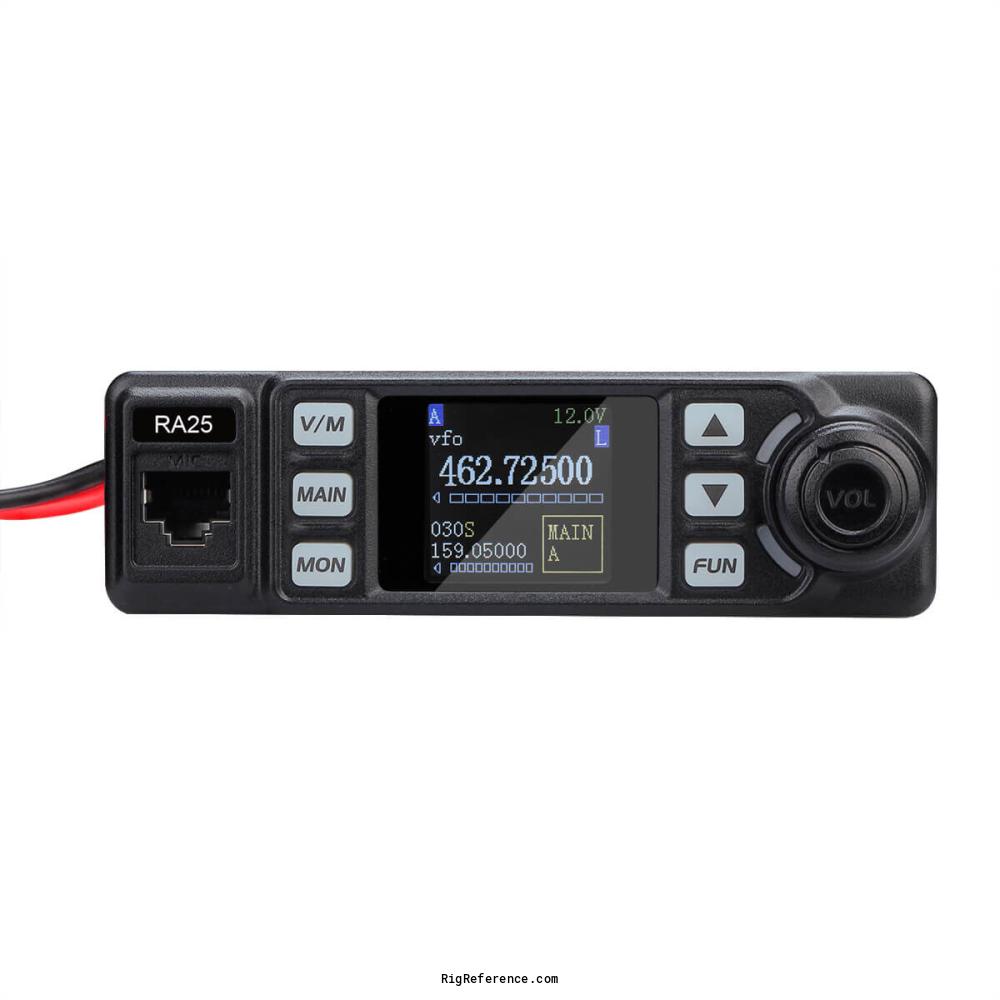

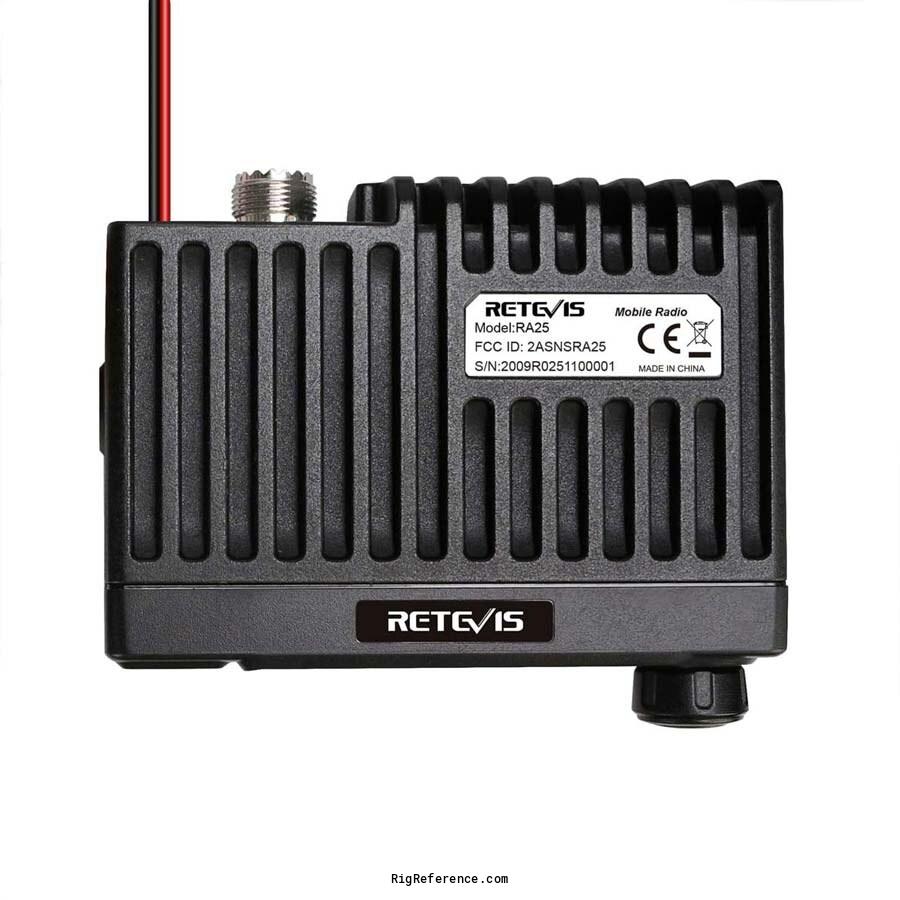

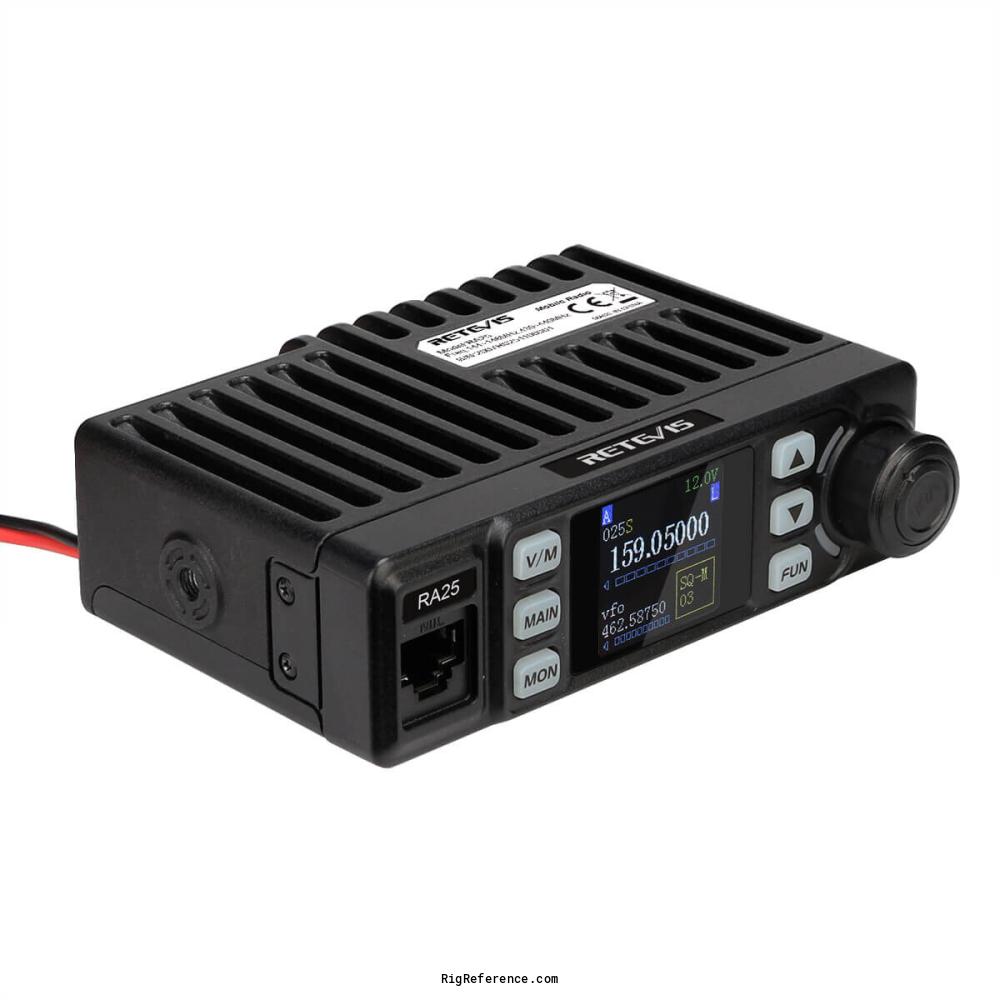

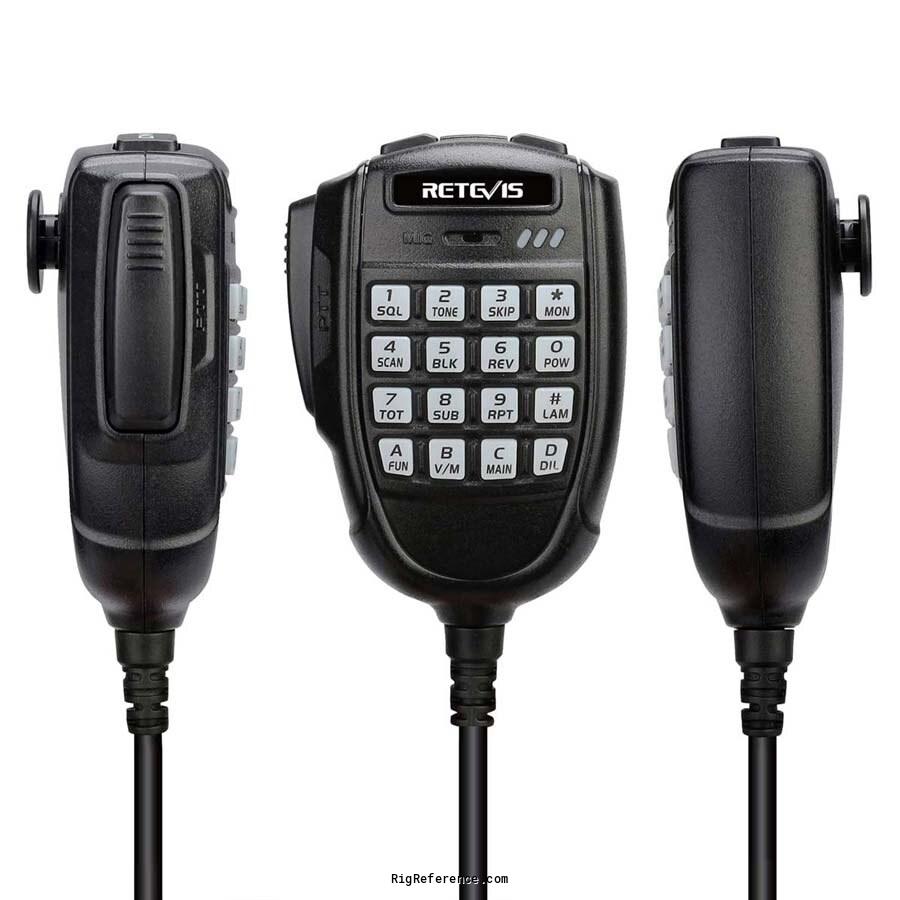

Retevis RA25

General characteristics

HAM bands

?

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

30 channels in bank(s)

Receiver

RX-range

462.5500-462.7250 MHz
FM broadcast: 86.7-108 MHz

Modulations

FM   N-FM   W-FM

Sensitivity

0.25 µV (wide) / 0.35 µV (narrow), 12 dB SINAD

Selectivity

Adjacent channel: 70 dB (wide) / 60 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

More than 2 W, distortion less than 3%

Transmitter

TX-range

GMRS (462.5500-467.7250 MHz)

Modulations

FM   N-FM

RF-output

20 W max.

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

13.8 V DC ±15% (12 V DC optional version)

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

124 × 36 × 101 mm (4.88 × 1.42 × 3.98 in)

Weight

450 gr (15.9 oz) Main unit

Form factor

Mobile

Manufactured

Between 20xx and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

Compact GMRS mobile
1.44 inch display
30 channels
Carrier / CTCSS / DCS / 2-Tone / 5-Tone / DTMF squelch
FM broadcast receive

Accessories

-

RigReference ID

6721

MPN

RETEVIS-RA000025

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Retevis RA25. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RA25. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RA25 in Good condition is around:

• USD 141

Price History Chart

These estimates are based on the following prices:
