Emission: F2D, F3E (FM, FM-N)
Deviation: 5.0 / 2.5 kHz (W/N)
Spurious: less than -60 dBc
Mic impedance: 600 ohm
Operating temperature: -10 to +60 °C
SO-239 antenna connector
Main unit size as stated: 130 x 40 x 38 mm
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 1052 channels in bank(s)
Receiver
- RX-range
- 137-174 / 400-470 MHz
- Modulations
- FM N-FM
- Sensitivity
- Less than 0.18 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- More than 2 W (8 ohm, 10% distortion)
Transmitter
- TX-range
- 137-174 / 400-470 MHz
- Modulations
- FM N-FM
- RF-output
- 25 / 15 / 5 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 130 × 40 × 38 mm (5.12 × 1.57 × 1.50 in)
- Weight
- 1.20 kg (2.6 lbs) Approx. main unit; control panel 140 g
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options

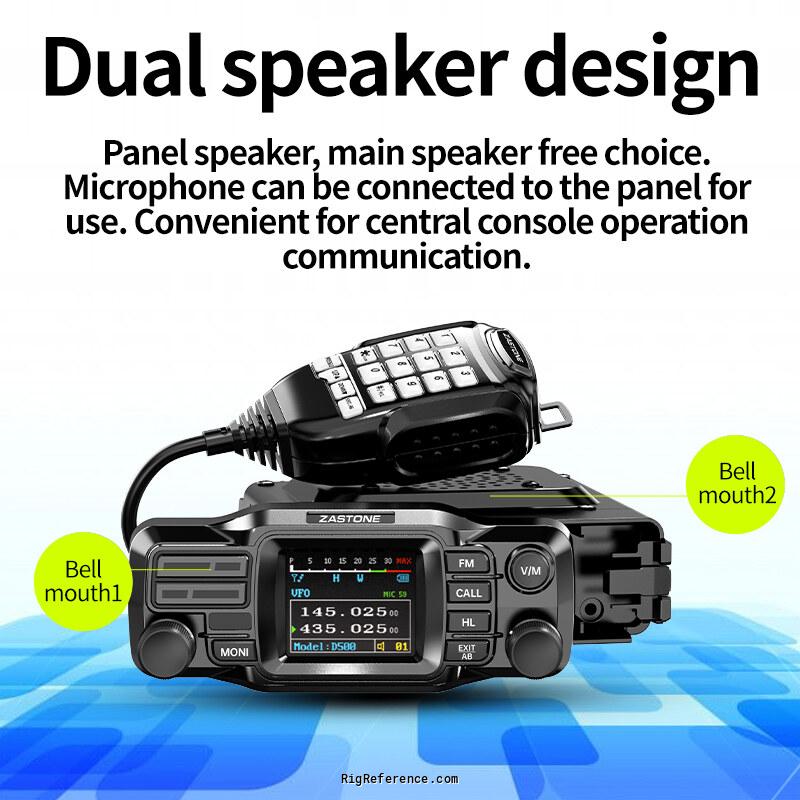

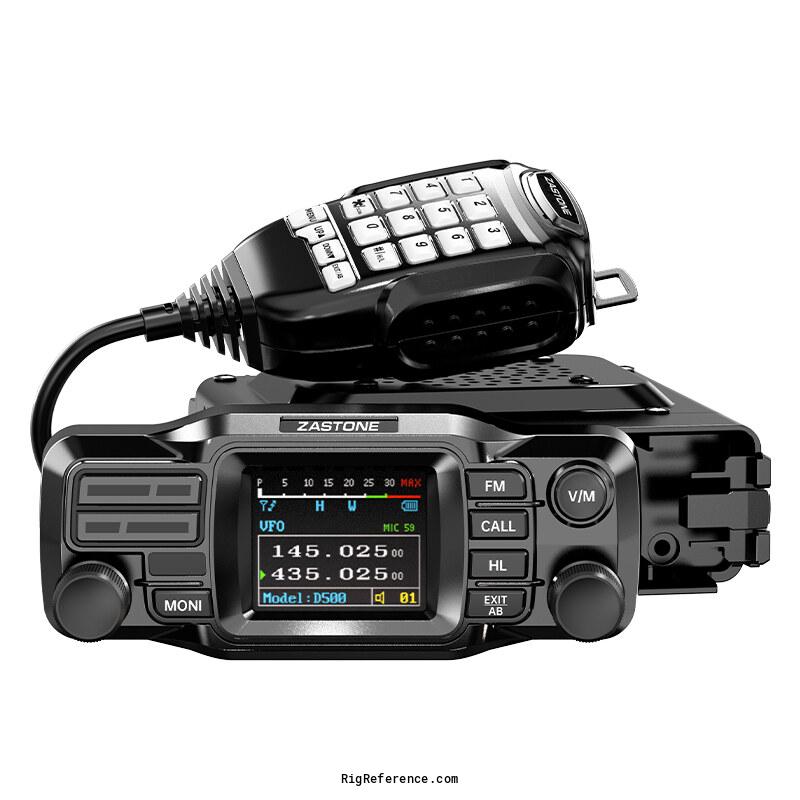

- Mini dual-band mobile
Detachable (split) panel
Colour screen
Airband AM receive and frequency decode
1052 channels

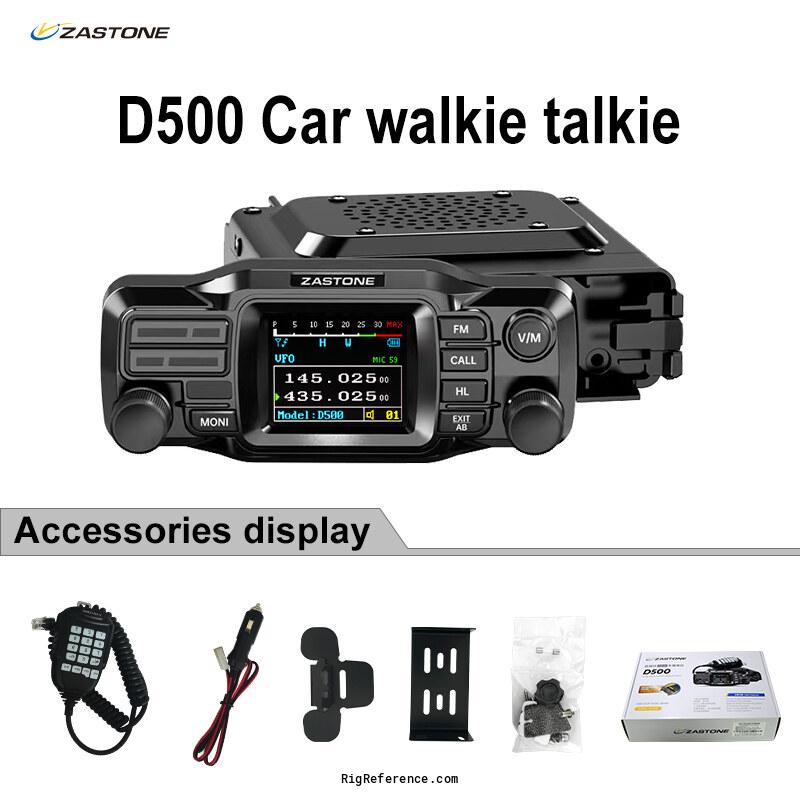

8-pin modular microphone - Accessories
- -
- RigReference ID
- 6794
- MPN
- ZASTONE-D000500
